9-35
9
4. Pull off the air filter element lock plate,
and then remove the foam air filter ele-
ment from the air filter frame.
5. Wash the foam material gently but thor-
oughly in parts cleaning solvent.
WARNING! Using gasoline or other
flammable solvents to clean the air fil-
ter element can cause a fire or explo-
sion, which could lead to serious
injury.
[EWB03360]
6. Squeeze out the excess solvent.
NOTICE: Do not twist the foam materi-
al when squeezing it.
[ECB02970]

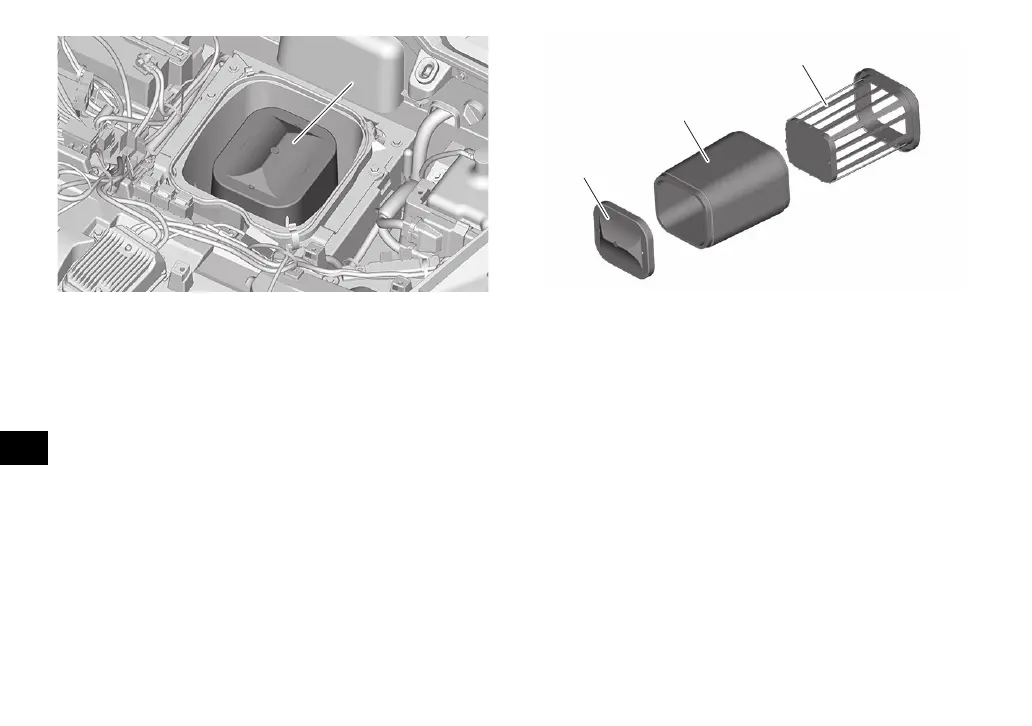

1. Foam air filter
1. Air filter element lock plate
2. Foam air filter element
3. Air filter frame
UB4M11E0.book Page 35 Tuesday, August 4, 2020 1:04 PM
