Yamaha WOLVERINE R MAX 2021 - Fuse Replacement

9-54
9
EBU32665
Fuse replacement

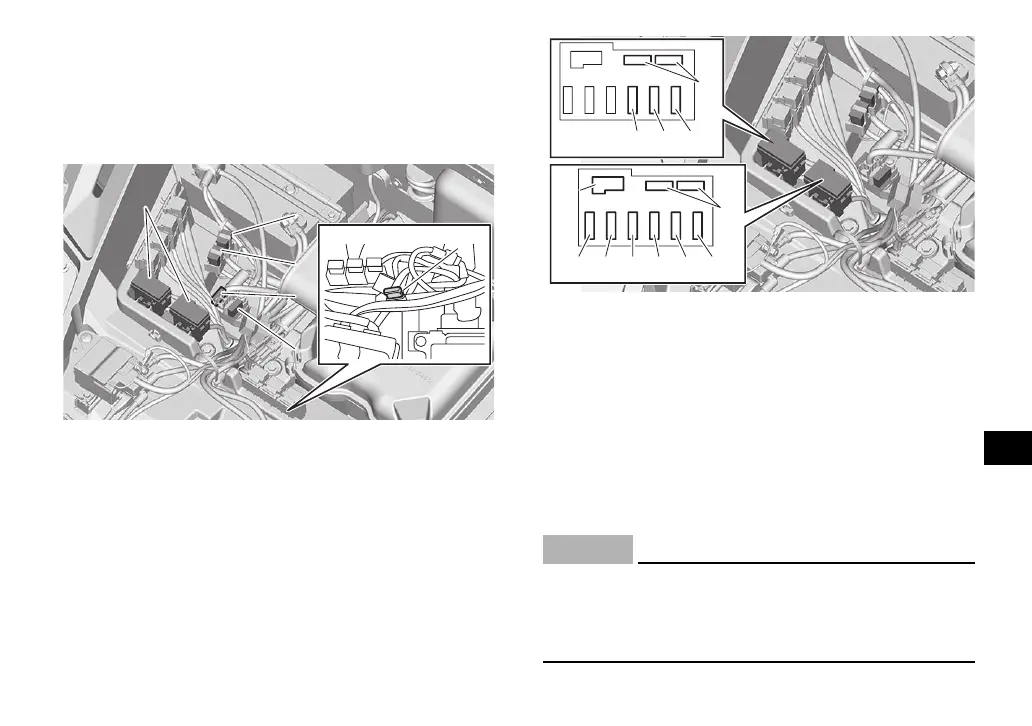

The fuses are located under the hood. If an
electrical problem is suspected, check the
fuses and replace if necessary.
NOTICE
ECB00641
To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse.
1. Fuse box
2. Main fuse
3. EPS fuse
4. Fuel injection system spare fuse
5. Fuel injection system fuse
6. SCU fuse
333
1
2
4
1
2
6
4
55
1. Spare fuse
2. Accessory fuse “ACC”
3. Electronic throttle valve fuse “ETV”
4. Auxiliary DC jack fuse “TERMINAL”
5. Radiator fan motor fuse “FAN”
6. Ignition fuse “IGNITION”
7. Backup fuse “BACK UP” (for clock)
8. Four-wheel-drive motor fuse “DIFF”
9. Signaling system fuse “SIGNAL”
10.Headlight fuse “HEAD”
5678910
1
1
234
1
