PERIODIC MAINTENANCE AND ADJUSTMENT
7-25
7
EAU22760

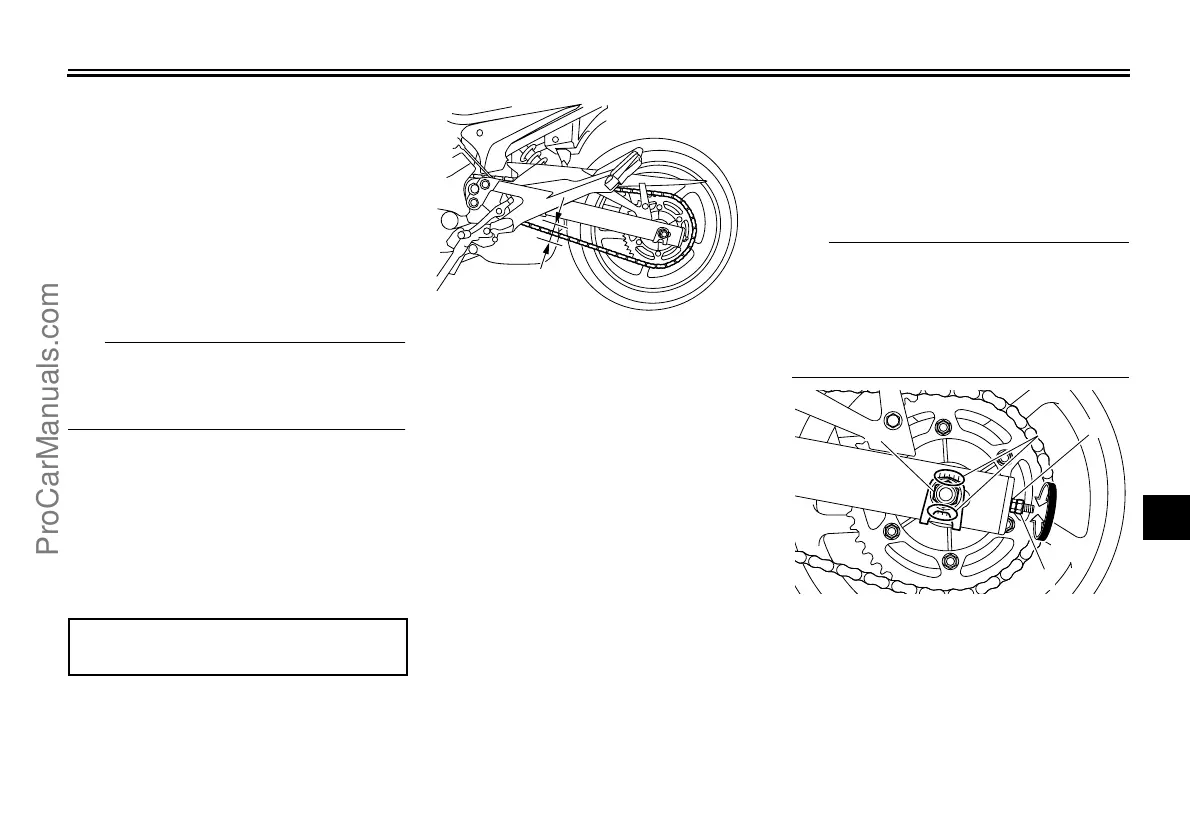

Drive chain slack
The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22773
To check the drive chain slack
1. Place the motorcycle on the side-
stand.
TIP
When checking and adjusting the drive
chain slack, there should be no weight
on the motorcycle.
2. Shift the transmission into the neu-
tral position.
3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain slack
as shown.
4. If the drive chain slack is incorrect,
adjust it as follows.
EAU47030
To adjust the drive chain slack
1. Loosen the axle nut, then loosen
the locknut at each end of the
swingarm.
2. To tighten the drive chain, turn the
drive chain slack adjusting nut at
each end of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting nut at each end
of the swingarm in direction (b),
and then push the rear wheel for-
ward. NOTICE: Improper drive
chain slack will overload the en-
gine as well as other vital parts
of the motorcycle and can lead
to chain slippage or breakage.
To prevent this from occurring,
keep the drive chain slack with-
in the specified limits.
[ECA10571]
TIP
Using the alignment marks on each
side of the swingarm, make sure that
the notch on the alignment plates is in
the same position on both sides for
proper wheel alignment.
Drive chain slack:
45.0–55.0 mm (1.77–2.17 in)
1. Drive chain slack
1
1. Axle nut
2. Alignment marks
3. Drive chain slack adjusting nut
4. Locknut
1
3
4
2
(a)
(b)
U20S20E0.book Page 25 Wednesday, October 15, 2008 2:05 PM
