PERIODIC MAINTENANCE
3-23
EAS30810

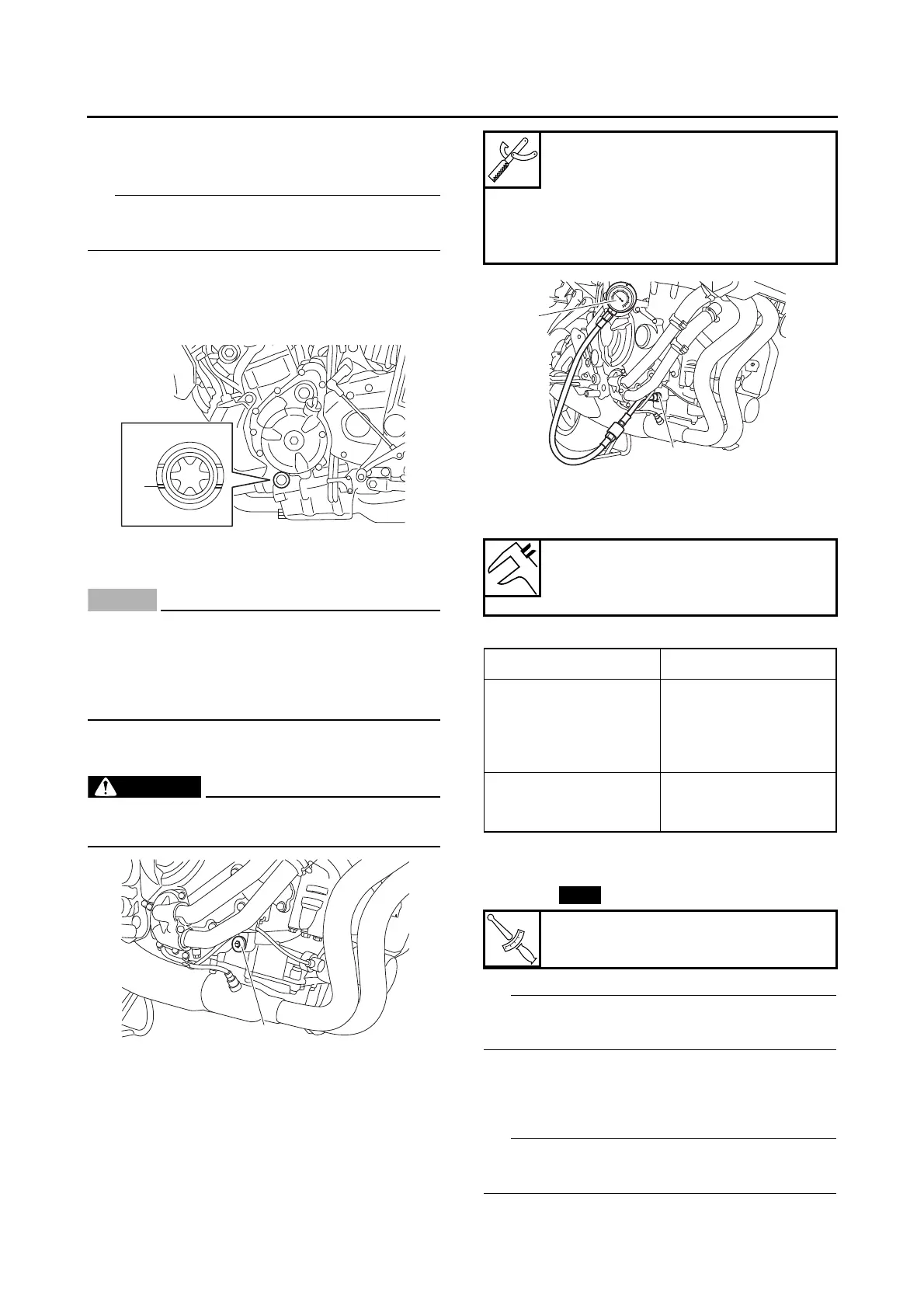

MEASURING THE ENGINE OIL PRESSURE
1. Stand the vehicle on a level surface.
TIP
• Place the vehicle on the suitable stand.
• Make sure that the vehicle is upright.
2. Check:
• Engine oil level
Below the minimum level mark “a” → Add the
recommended engine oil to the proper level.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
NOTICE
ECA13410
When the engine is cold, the engine oil will
have a higher viscosity, causing the engine
oil pressure to increase. Therefore, be sure
to measure the engine oil pressure after
warming up the engine.
4. Remove:
• Main gallery bolt “1”
WARNING
EWA12980
The engine, muffler and engine oil are ex-
tremely hot.
5. Install:
• Oil pressure gauge “1”
• Adapter “2”
6. Measure:
• Engine oil pressure
(at the following conditions)
Out of specification → Check.
7. Install:
• Main gallery bolt
• O-ring
TIP
Lubricate the O-ring with a thin coat of lithium-
soap-based grease.
EAS30811
CHECKING THE COOLANT LEVEL
1. Stand the vehicle on a level surface.
TIP
• Place the vehicle on a suitable stand.
• Make sure the vehicle is upright.
a
1
Pressure gauge
90890-03153
Pressure gauge
YU-03153
Oil pressure adapter H
90890-03139
Oil pressure
280.0 kPa/5000 r/min at 100 °C
(40.6 psi/5000 r/min at 212 °F)
Engine oil pressure Possible causes
Below specification
• Faulty oil pump
• Clogged oil filter
• Leaking oil passage
• Broken or damaged
oil seal
Above specification
• Leaking oil passage
• Faulty oil filter
• Oil viscosity too high
T
R
.
.
Main gallery bolt
8 Nm (0.8 m·kgf, 5.8 ft·lbf)
2
1
New
