Do not use a fuse of a higher
amperage rating than recommend-
ed to avoid causing extensive
damage to the electrical system
and possibly a fire.
3. Turn the key to “ON” and turn on
the electrical circuits to check if
the devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
3. Disconnect the headlight coupler
and the auxiliary light leads, and
then remove the headlight bulb
cover.

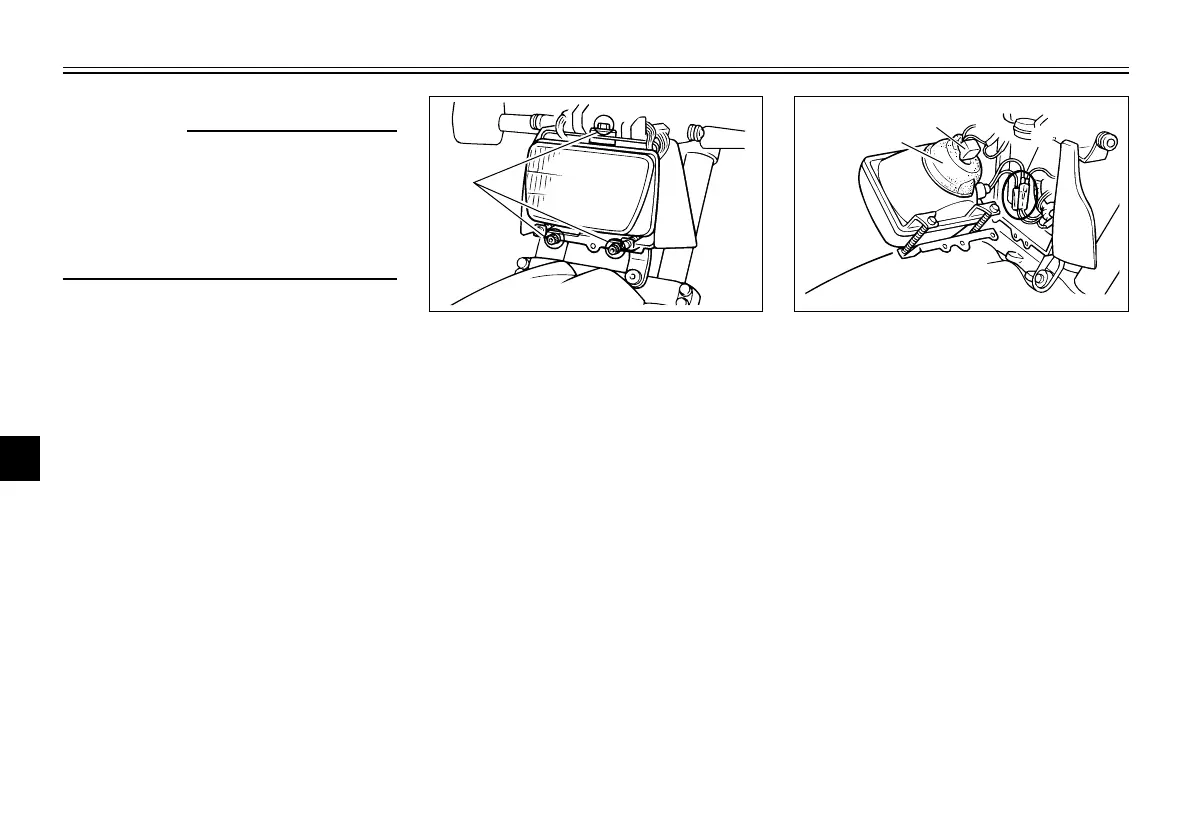

1. Headlight coupler
2. Auxiliary light lead (×2)
3. Headlight bulb cover
EAU01146
Replacing the headlight bulb
Headlight bulb, replacing
This motorcycle is equipped with a
quartz bulb headlight. If the headlight
bulb burns out, replace it as follows.
1. Remove cowling A. (See page
6-7 for cowling removal and
installation procedures.)
2. Remove the headlight unit by
removing the bolts.
1. Bolt (×3)
