Yamaha XT660X Service Manual

4 - 10
CHAS
REAR WHEEL, BRAKE DISC, AND REAR WHEEL
SPROCKET
EAS00550

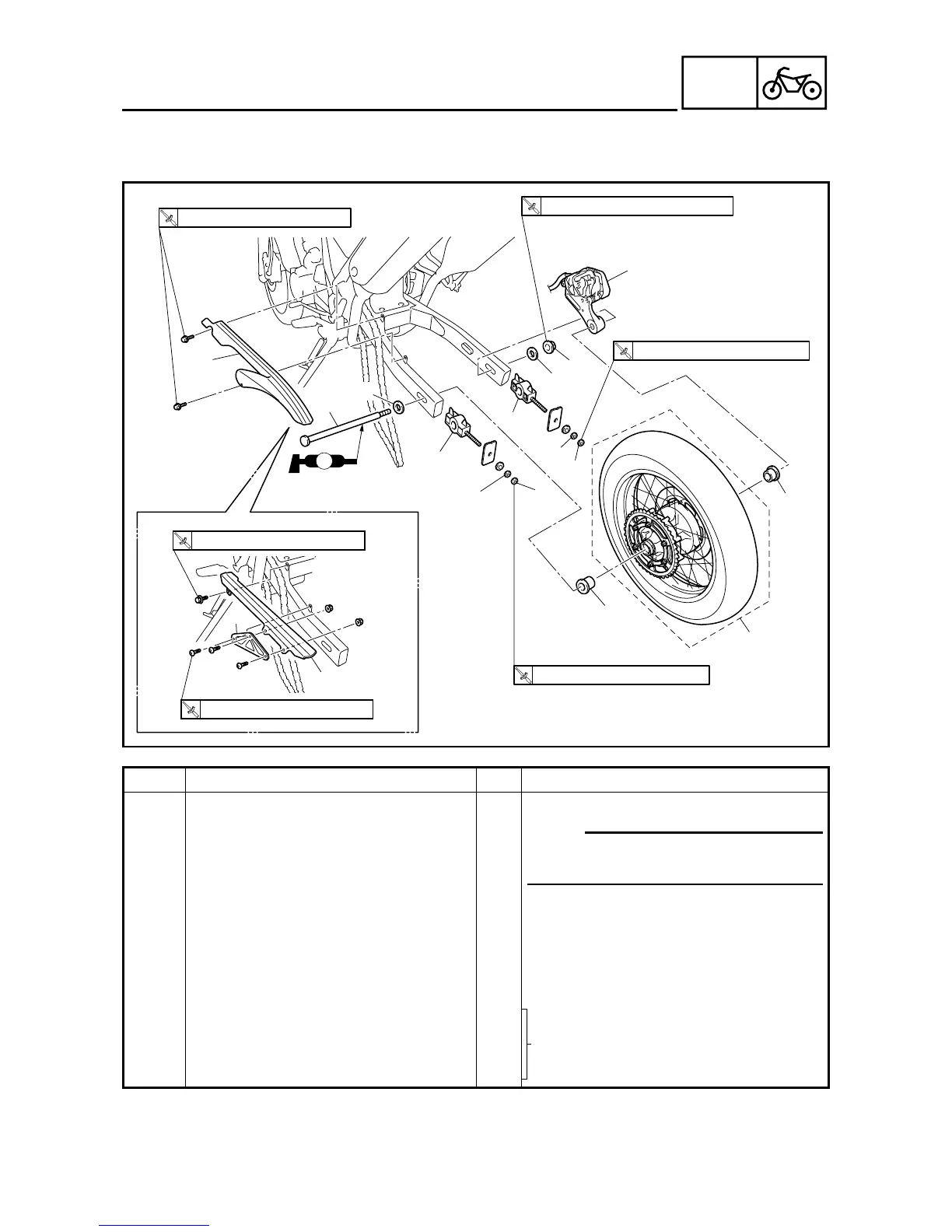

REAR WHEEL, BRAKE DISC, AND REAR WHEEL SPROCKET
REAR WHEEL
T
R
.
.
105 Nm (10.5 m
•
kg, 75 ft
•
lb)
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
R
.
.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
LS
3
5
1
2
5
4
4
7
6
8
9
10
11
12
13
14
14
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
Order Job/Part Q’ty Remarks
Removing the rear wheel
Remove the parts in the order listed.
NOTE:
_
Place the motorcycle on a suitable stand
so that the rear wheel is elevated.
1 Stabilizer 1 XT660X
2 Chain cover 1 XT660X
3 Chain cover 1 XT660R
4 Locknut 2 Loosen.
5 Adjusting nut 2 Loosen.
6 Wheel axle nut 1
Refer to “INSTALLING THE REAR
WHEEL”.
7 Washer (N) 1
8 Rear wheel axle 1
9 Washer (O) 1

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
