Yamaha XT660X Service Manual

4 - 65
CHAS

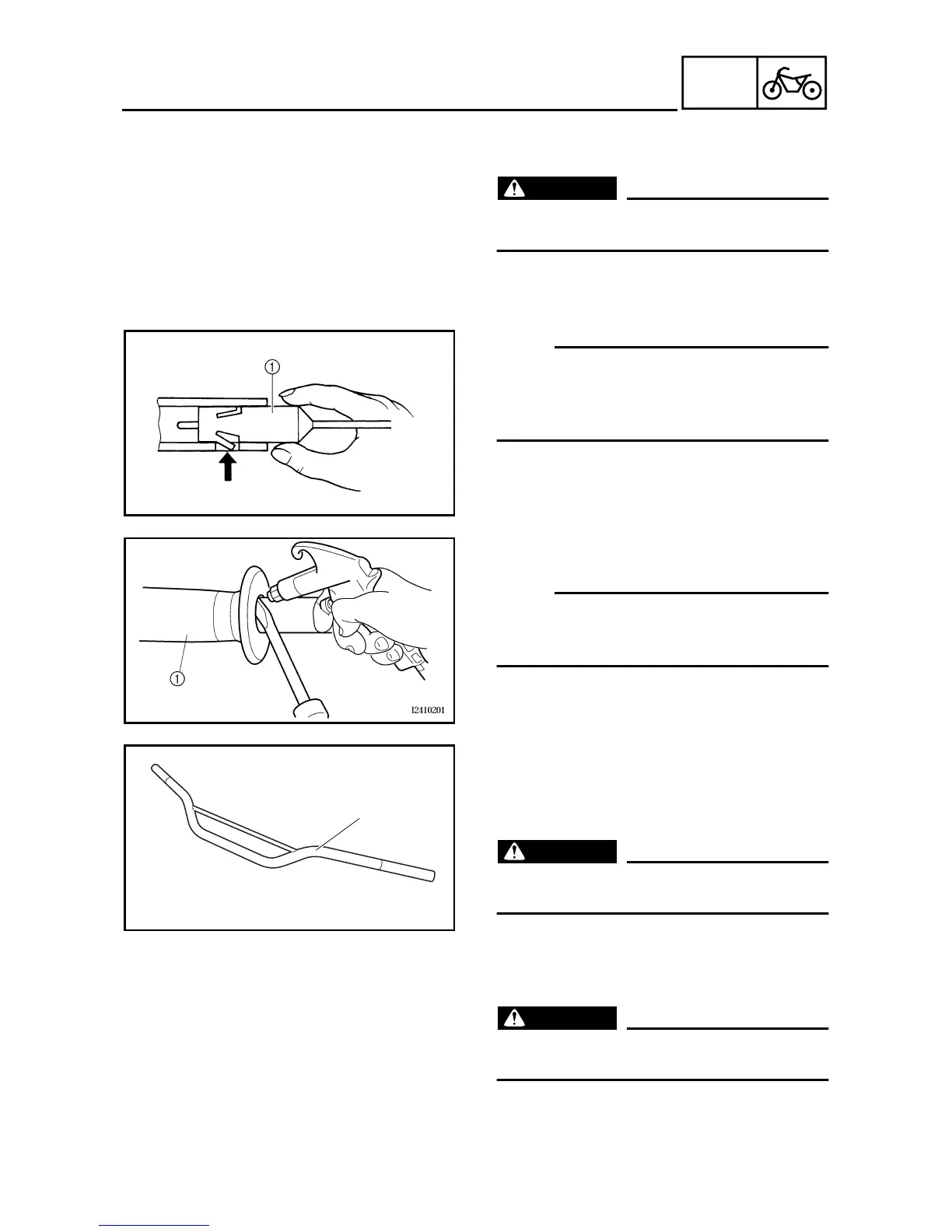

HANDLEBAR
EAS00666
REMOVING THE HANDLEBAR
1. Stand the motorcycle on a level surface.
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.
2. Remove:
• front brake light switch
1
• clutch switch
NOTE:
• Push the fastener to remove the front brake
light switch from the brake master cylinder.
• Push the fastener to remove the clutch
switch from the clutch lever.
3. Remove:
• handlebar grip
1
NOTE:
_
Blow compressed air between the handlebar
and the handlebar grip, and gradually push the
grip off the handlebar.
EAS00668
CHECKING THE HANDLEBAR
1. Check:
• handlebar
1
Bends/cracks/damage
→
Replace.
WARNING
_
Do not attempt to straighten a bent handle-
bar as this may dangerously weaken it.
1
EAS00671
INSTALLING THE HANDLEBAR
1. Stand the motorcycle on a level surface.
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
