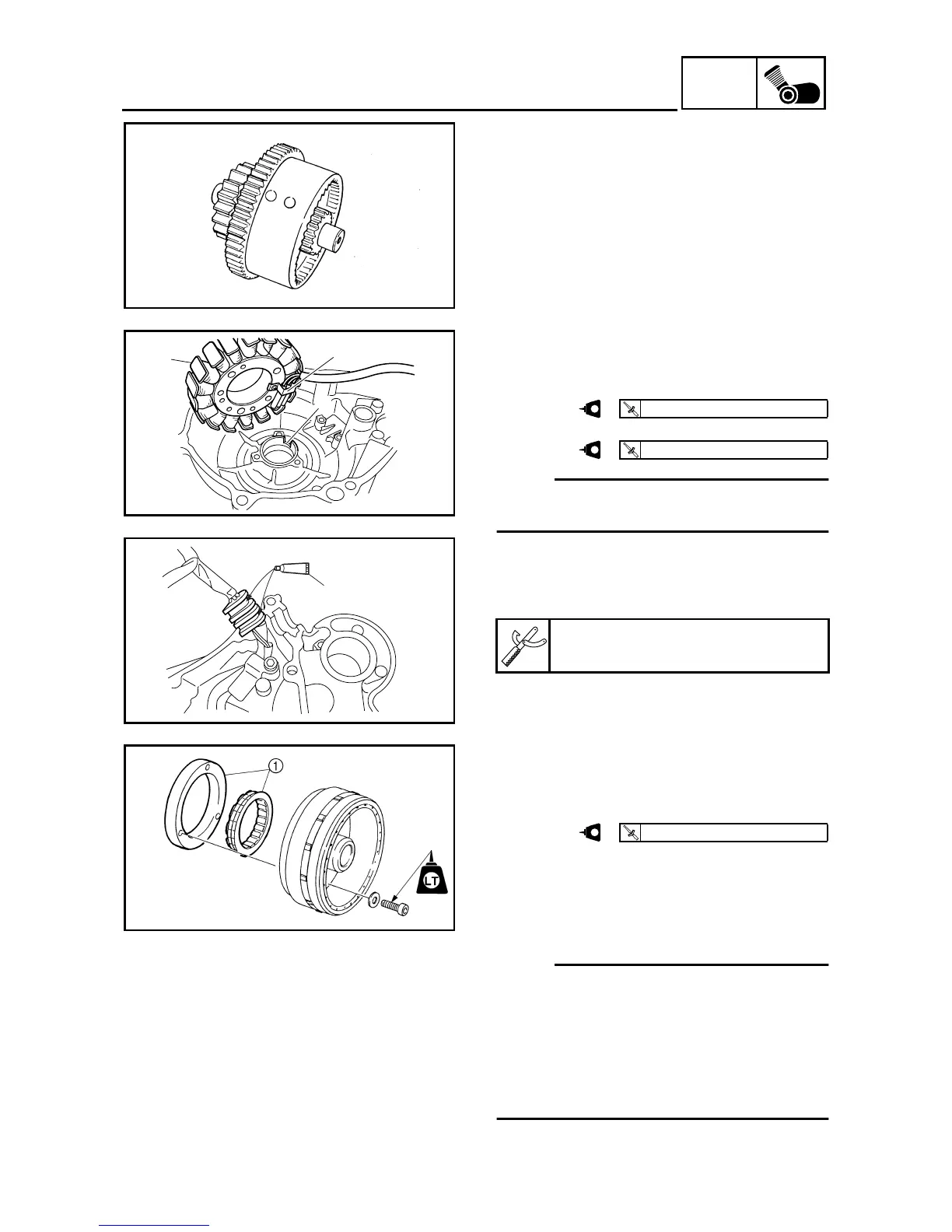

5 - 67
ENG
STARTER CLUTCH AND A.C. MAGNETO
CHECKING THE TORQUE LIMITER
1. Check:
torque limiter
Damage/wear Replace.
EAS00354
INSTALLING THE A.C. MAGNETO ROTOR
1. Install:
stator coil 1
crankshaft position sensor
NOTE:
_
Align the projection a on the stator coil with
the slot b in the A.C. magneto cover.
2. Apply:
Yamaha bond No. 1215 1
(into the slits)
Yamaha bond No. 1215
90890-85505
1
a
b
T
R
.
.
10 Nm (1.0 m · kg, 7.2 ft · lb)
LT
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
LT
1
3. Install:
starter clutch 1
(to A.C. magneto rotor)
starter clutch bolts
4. Install:
woodruff key
A.C. magneto rotor
washer
A.C. magneto rotor nut
NOTE:
_
Clean the tapered portion of the crankshaft
and the A.C. magneto rotor hub.
When installing the A.C. magneto rotor,
make sure the woodruff key is properly
seated in the keyway of the crankshaft.
Lubricate crankshaft end threads with engine
oil.
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
LT
