Yamaha XT660X - Throttle Body Assembly

7 - 23
FI
THROTTLE BODY ASSEMBLY
EAS00909

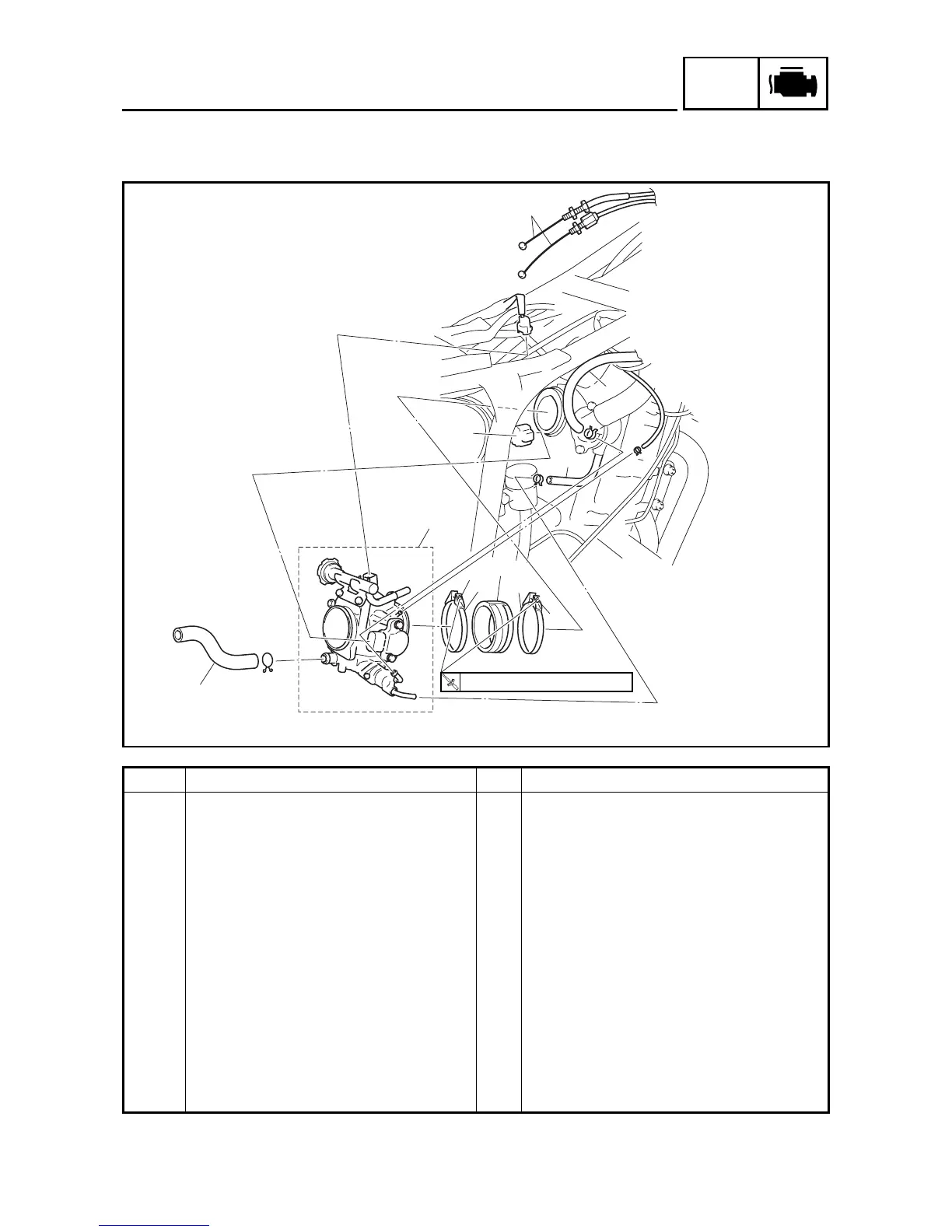

THROTTLE BODY ASSEMBLY
8
8
11
10
10
4
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
3
1
2
6
5
7
9
Order Job/Part Q’ty Remarks
Removing the throttle body assem-
bly
Remove the parts in the order listed.
Seat Refer to “COWLING AND COVER” in
chapter 3.
Fuel tank Refer to “FUEL TANK” in chapter 3.
Air filter case Refer to “AIR FILTER CASE” in chapter 3.
Coolant Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
1 Fuel injector coupler 1 Disconnect.
2 Throttle position sensor coupler 1 Disconnect.
3 Throttle cable 2 Disconnect.
Refer to “INSTALLING THE THROTTLE
BODY ASSEMBLY”.
4 Vacuum hose 1 Disconnect.
