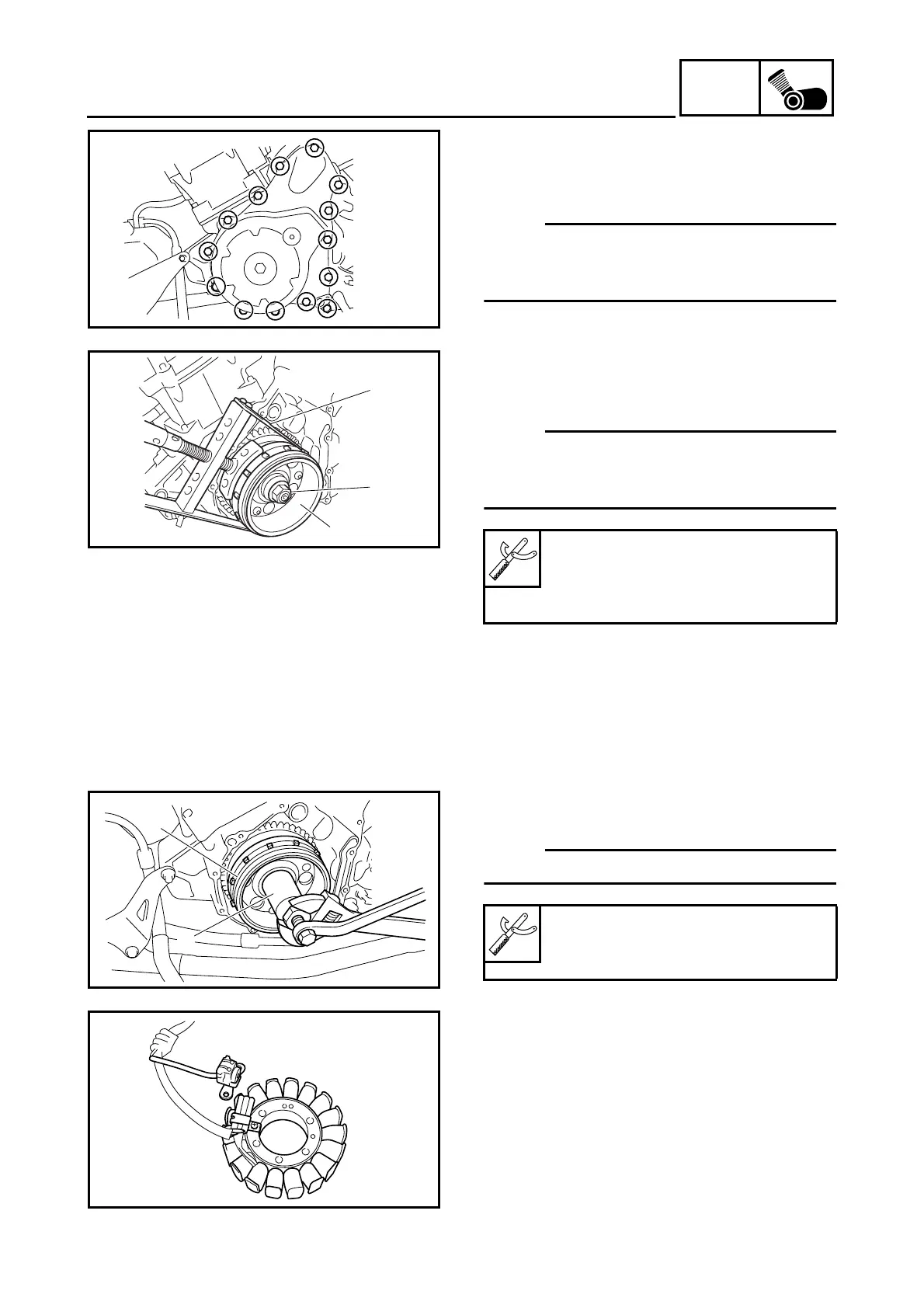

A.C. MAGNETO
EBS00259
REMOVING THE A.C. MAGNETO ROTOR
1. Remove:
• A.C. magneto cover
NOTE:
_
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern. After all of
the bolts are fully loosened, remove them.
2. Remove:
• A.C. magneto rotor nut
1
•washer
NOTE:
_
While holding the A.C. magneto rotor
2
with
the sheave holder
3
, loosen the A.C. magneto
rotor nut.
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
3
2
1
3. Remove:
• A.C. magneto rotor
1
NOTE:
_
Use the flywheel puller
2
.
Flywheel puller
90890-01404
YM-01404
2
1
EBS00262
CHECKING THE STATOR COIL AND
CRANKSHAFT POSITION SENSOR
1. Check:
• stator coil
• crankshaft position sensor
Damage
→
Replace the crankshaft position
sensor/stator assembly.
