4 - 44
ENG
A.C. MAGNETO
EBS00263

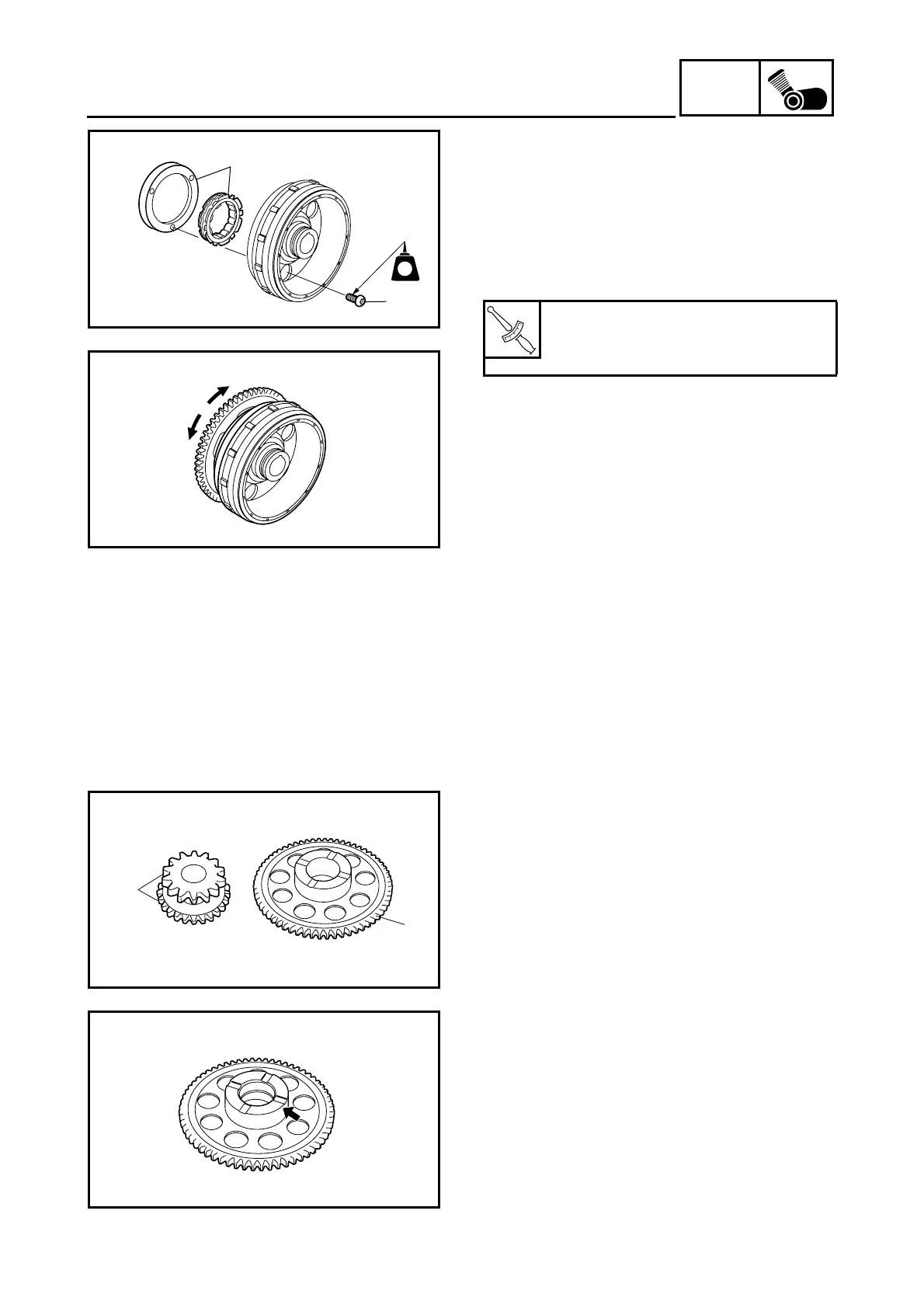

CHECKING THE STARTER CLUTCH
1. Check:
• starter one-way clutch
1
Cracks/damage
→
Replace.
• bolts
2
Loose
→
Replace with a new one, and
clinch the end of the bolt.
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Install the starter wheel gear to the starter
clutch, and hold the starter clutch.
b. When turning the starter wheel gear
counter clockwise
È
, the starter clutch and
the wheel gear should be engaged.
If not, the starter clutch is faulty. Replace it.
c. When turning the starter wheel gear clock-
wise
É
, the starter wheel gear should turn
freely.
If not, the starter clutch is faulty. Replace it.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
T
R
.
.
Starter clutch bolt
30 Nm (3.0 m · kg, 22 ft · lb)
LOCTITE
®
LT
1
2
È
É
2. Check:
• starter idle gear teeth
1
• starter wheel gear teeth
2
Burrs/clips/roughness/wear
→
Replace.
1
2
3. Check:
• starter wheel gear
(contacting surface)
Damage/pitting/wear
→
Replace.
