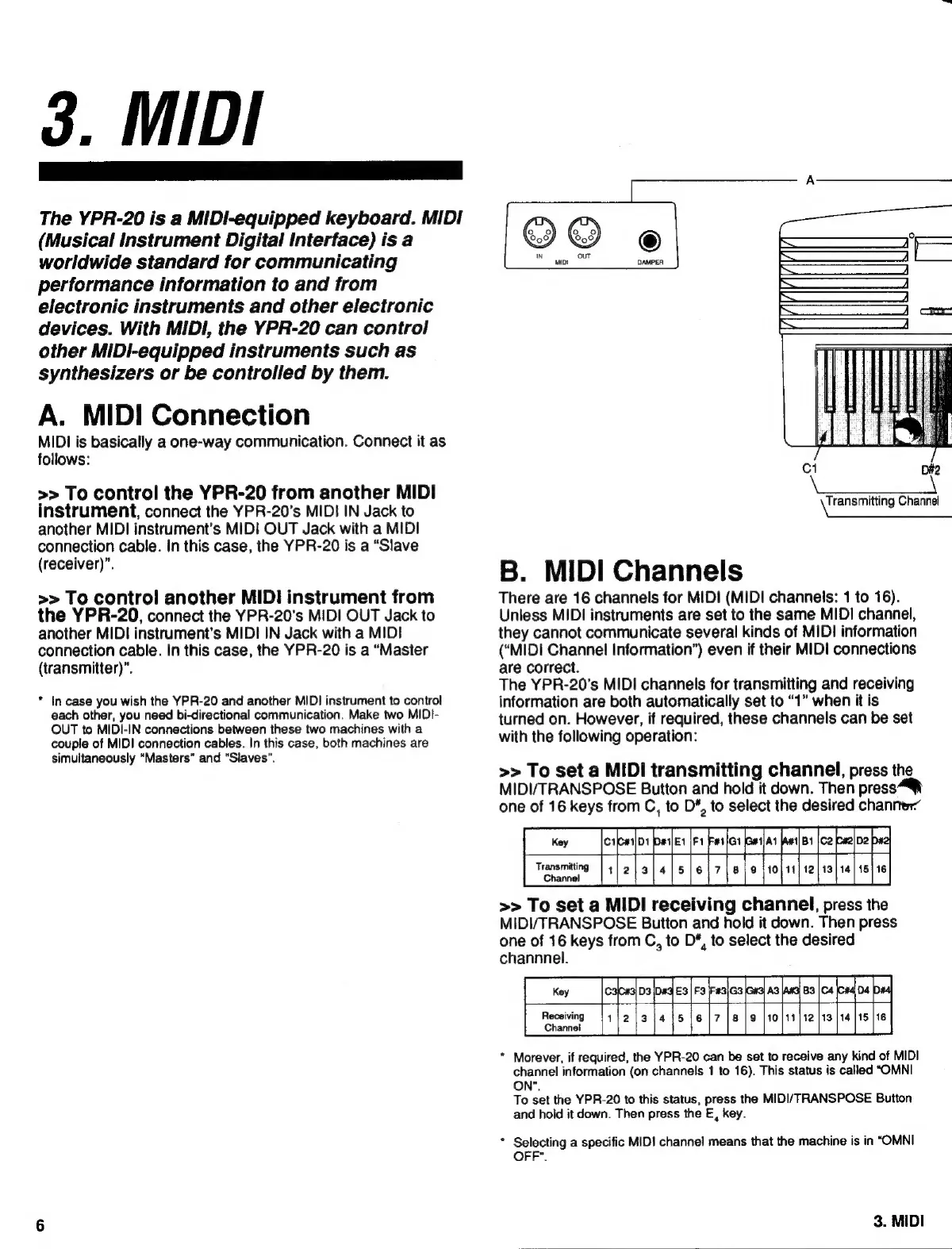

3. MIDI
The YPR-20 is а МІРІ-едиірреа keyboard. MIDI
(Musical Instrument Digital Interface) is a
worldwide standard for communicating
performance information to and from
electronic instruments and other electronic
devices. With MIDI, the YPR-20 can control
other MIDI-equipped instruments such as
synthesizers ог be controlled by them.
A. MIDI Connection
MIDI is basically a one-way communication. Connect it as
follows:
>> To control the YPR-20 from another MIDI
instrument, connect the YPR-20’s MIDI IN Jack to
another MIDI instrument’s MIDI OUT Jack with a MIDI
connection cable. in this case, the YPR-20 is a “Slave
(receiver)”.
>> To control another MIDI instrument from
the YPR-20, connect the YPR-20’s MIDI OUT Jack to
another MIDI instrument’s MIDI IN Jack with a MIDI
connection cable. In this case, the YPR-20 is a “Master
(transmitter)”.
* in case you wish the YPR-20 and another MIDI instrument to control
each other, you need bi-directional communication. Make two MIDI-
OUT to MIDI-IN connections between these two machines with a
couple of MIDI connection cables. In this case, both machines are
simultaneously “Masters” and "Slaves".
\ Transmitting Channel
B. MIDI Channels
There are 16 channels for MIDI (MIDI channels: 1 to 16).
Unless MIDI instruments are set to the same MIDI channel,
they cannot communicate several kinds of MIDI information
(“MIDI Channel Information”) even if their MIDI connections
are correct.
The YPR-20's MIDI channels for transmitting and receiving
information are both automatically set to “1” when it is
turned on. However, if required, these channels can be set
with the following operation:
>> To set a MIDI transmitting channel, press the
MIDI/TRANSPOSE Button and hold it down. Then press
one of 16 keys from С, to D*, to select the desired channer’
Key С1Са1|О1 D#ijE1 Ei Feier bein paelo b 2l
Transmitting 7 15
Channel 1121314 |5 |6 8 H 10 Е
>> То set а MIDI receiving сһаппеі, ргеѕѕ the
MIDI/TRANSPOSE Button and hold й down. Then press
one of 16 keys from C, to D*, to select the desired
channnel.
Key ©з ЕЗ Fa Раз аз Gad АЗ АЗ вз сара ped
Receiving 1112 516/7 [в је |10]11] 12 |13 |14 |15 |16
Channel
Morever, if required, the YPR-20 can be set to receive any kind of MIDI
channel information (on channels 1 to 16). This status is called “OMNI
ON",
To set the YPR-20 to this status, press the MIDI/TRANSPOSE Button
and hold it down. Then press the E, key.
D
D
Selecting a specific MIDI channel means that the machine is in “OMNI
ОЕР".
