Replacing a Headlight
Bulb
If the headlight burns out, replace it
as follows:

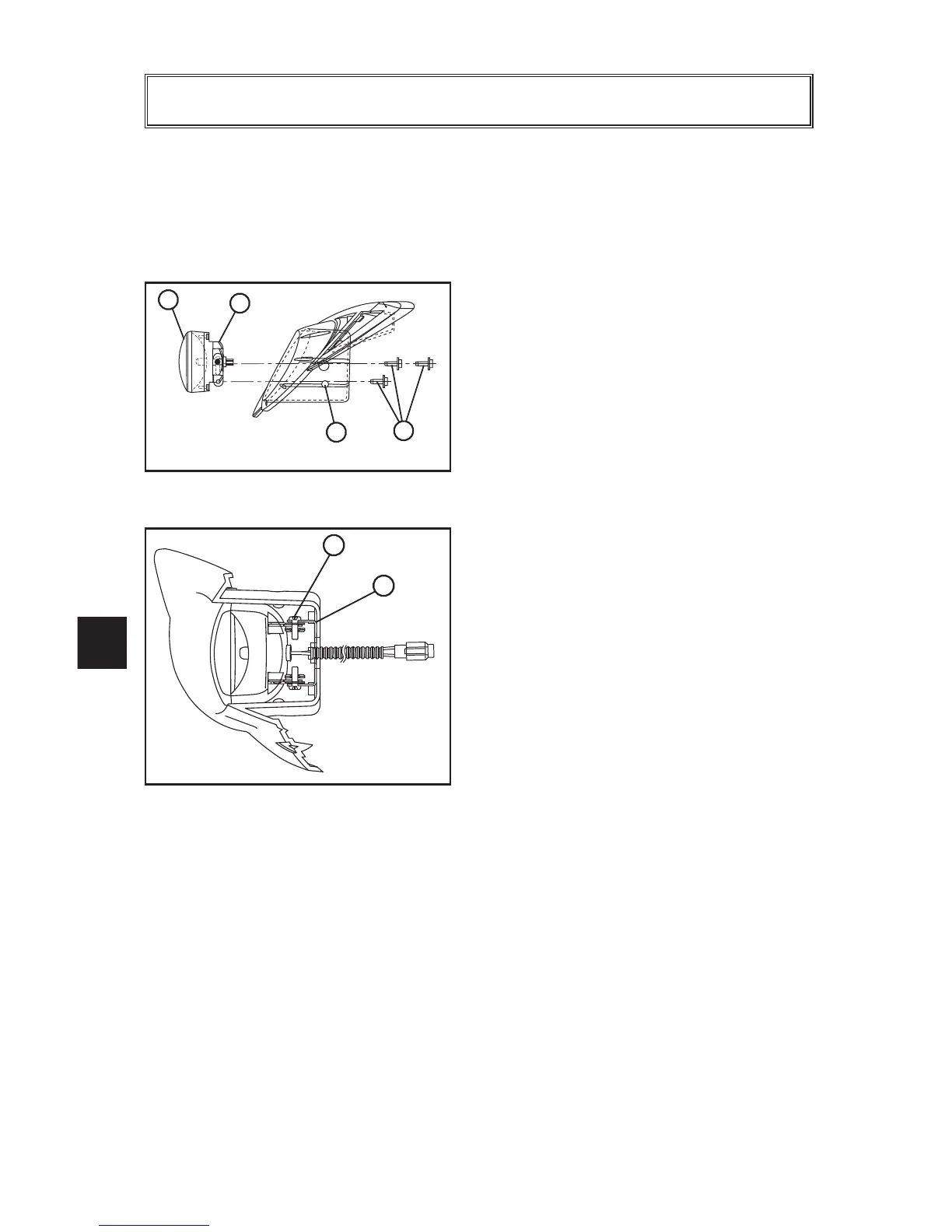

1. Remove the bulb holder 1 and
bulb 2 by removing the three
screws 3 located on the back of
the bezel 4.
2. Disconnect the wire connectors
from the bulb.
3. Remove the two screws 5 locat-
ed on the side of the bulb holder
1 to gain access to the headlight
bulb 2.
4. Insert a new bulb 2 into the bulb
holder 1 and secure with the two
bulb holder screws 5. Torque to
3 ~ 4.5 Nm, 0.3 ~ 0.45 m•kg
(27 ~ 40 in•lb).
5. Reattach the bulb holder 1 to the
bezel 4 and torque to
3 ~ 4.5 Nm, 0.3 ~ 0.45 m•kg
(27 ~ 40 in•lb).
