Yamaha YZ250 2022 User Manual

AIR FILTER
7-2
EAM20201
AIR FILTER
Removing the air filter element
Order Job/Parts to remove Q’ty Remarks
Seat
Refer to “GENERAL CHASSIS” on page
4-1.
Rear frame
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-55.
1 Fitting bolt 1
2 Air filter element 1
3 Air filter guide 1
4 Guide holder 1
5Band 1
6Spacer 1
7 Air filter joint 1
8 Air filter case 1

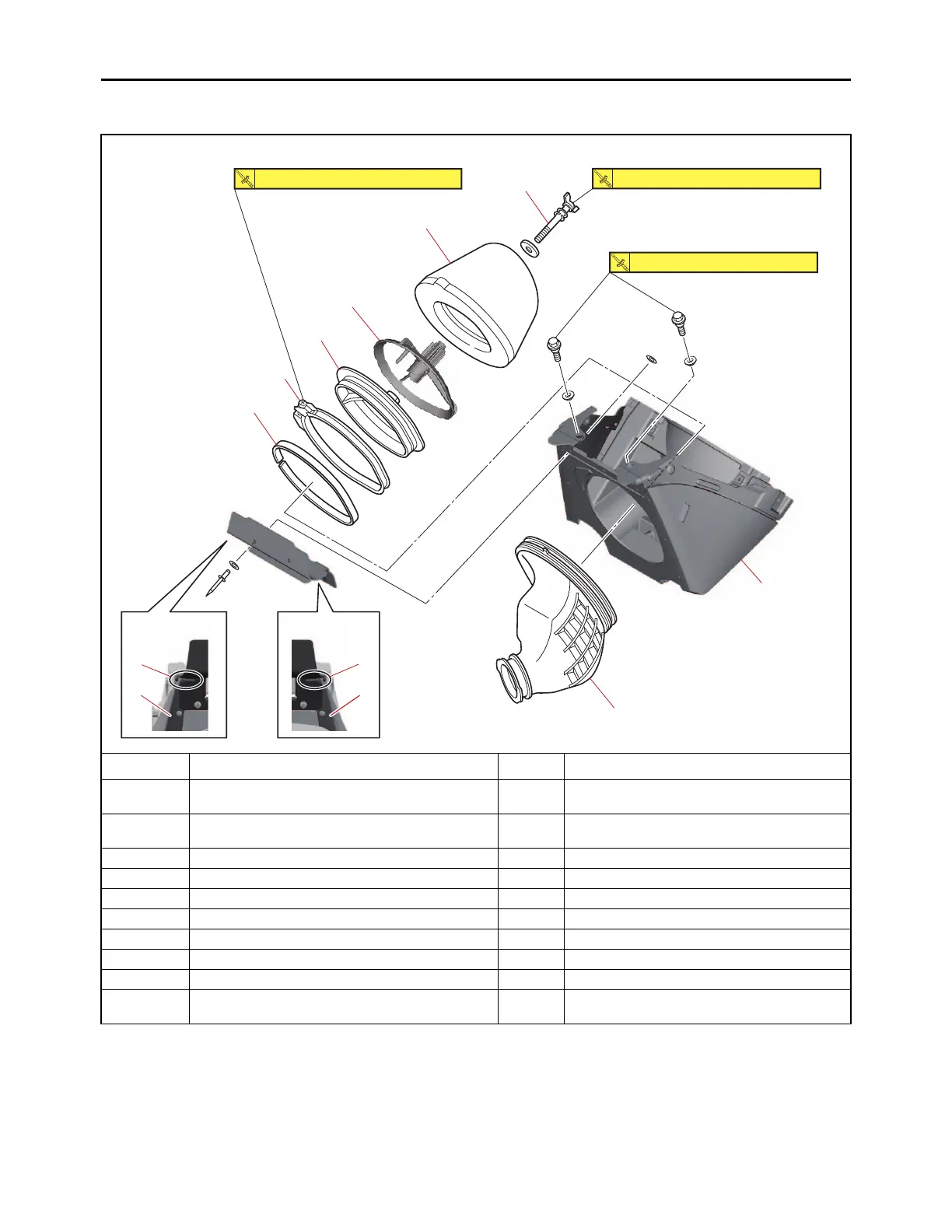

Place the rubber cover into the guide of the
air filter case “8” as shown “a”.
2
3
4
5
6
7
(3)
(3)
1
8
2.0 N・m (0.20 kgf・m, 1.5 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
3.5 N・m (0.35 kgf・m, 2.6 lb・ft)
a
8 8
a
8

Yamaha YZ250 2022 Specifications

General

Engine Type	249cc liquid-cooled 2-stroke; reed-valve inducted
Bore x Stroke	66.4mm x 72.0mm
Compression Ratio	8.9~10.6:1
Ignition	CDI
Transmission	5-speed; multiplate wet clutch
Final Drive	Chain
Suspension Rear	KYB® single shock; fully adjustable, 12.4-in travel
Brakes Front	Hydraulic disc, 270mm
Tires Front	80/100-21
Tires Rear	110/90-19
Seat Height	38.2 in
Wheelbase	58.5 in
Ground Clearance	14.2 in
Fuel Capacity	2.1 gal
Wet Weight	227 lb
Suspension Front	KYB® inverted fork; fully adjustable, 11.8-in travel
Brakes Rear	Hydraulic disc, 245mm
