CHASSIS
3-20
wheel off the ground.
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.

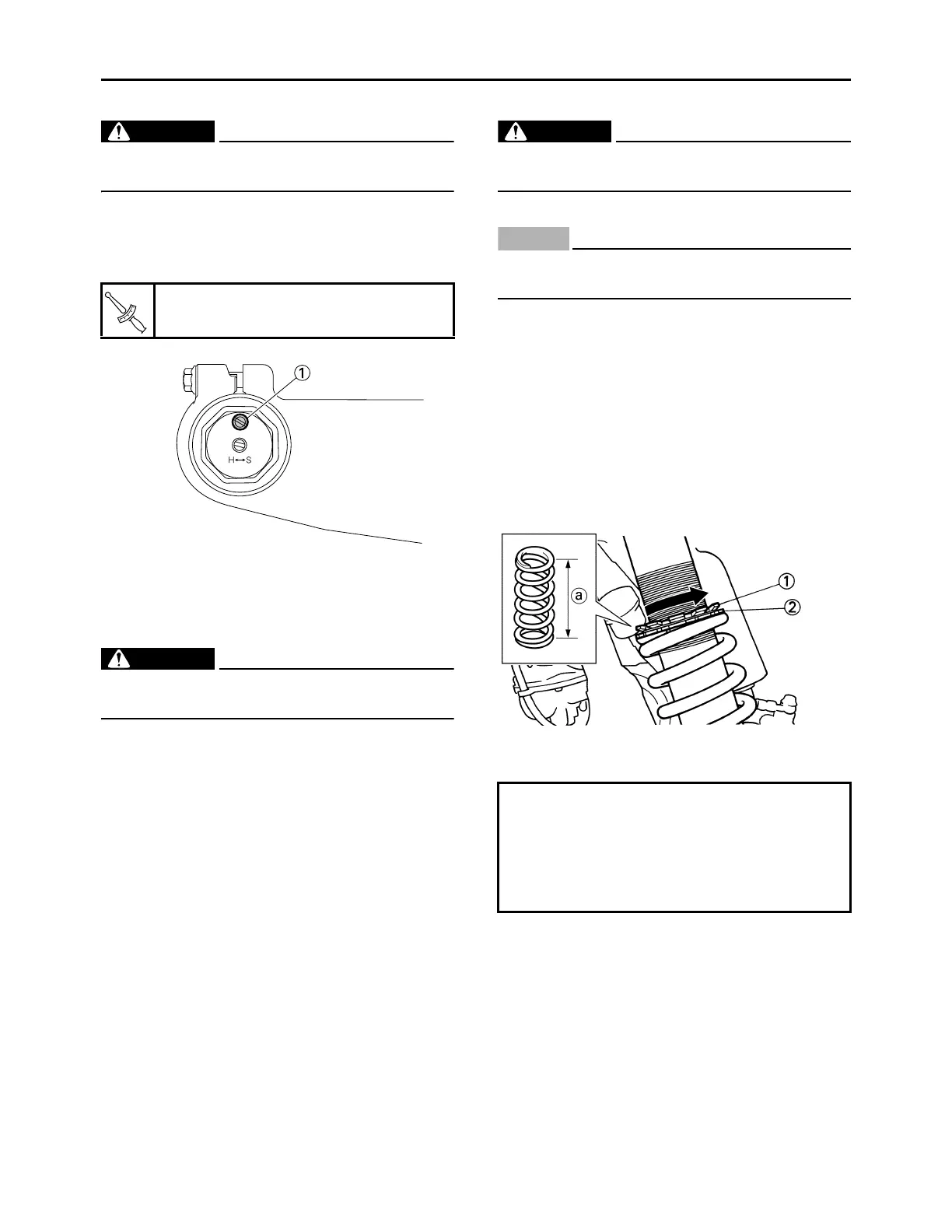

2. Remove the bleed screw “1” and release the
internal pressure from the front fork.
3. Tighten:
• Bleed screw
EAM30482
CHECKING THE REAR SHOCK ABSORBER
ASSEMBLY
1. Stand the vehicle upright on a level surface.
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
2. Check:
• Rear shock absorber assembly
Gas leaks/oil leaks Replace the rear shock
absorber assembly.
Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 4-55.
3. Check:
• Rear shock absorber assembly smooth ac-
tion
• Rear suspension link smooth action
Sit astride the seat and shake your body up
and down several times to check whether the
rear shock absorber assembly operates
smoothly.
Unsmooth operation Correct or replace.
Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 4-55.
EAM30242
ADJUSTING THE REAR SHOCK ABSORBER
ASSEMBLY
Use a maintenance stand to raise the rear wheel
off the ground.
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
Spring preload
ECA24360
Do not turn the adjuster forcibly beyond its
adjusting range.
1. Remove:
• Rear frame
Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 4-55.
2. Adjust:
• Spring preload
a. Loosen the locknut “1”.
b. Loosen the adjuster “2” until there is some
clearance between the spring and the ad-
juster.
c. Measure the spring free length “a”.
d. Turn the adjuster in the direction of “b” or
“c” to make an adjustment.
Bleed screw (front fork)
1.3 N·m (0.13 kgf·m, 0.95 lb·ft)
Direction “b”
Spring preload is increased (suspen-
sion is harder).
Direction “c”
Spring preload is decreased (suspen-
sion is softer).
