3-10
THROTTLE CABLE ADJUSTMENT/
THROTTLE LUBRICATION
EC35A001

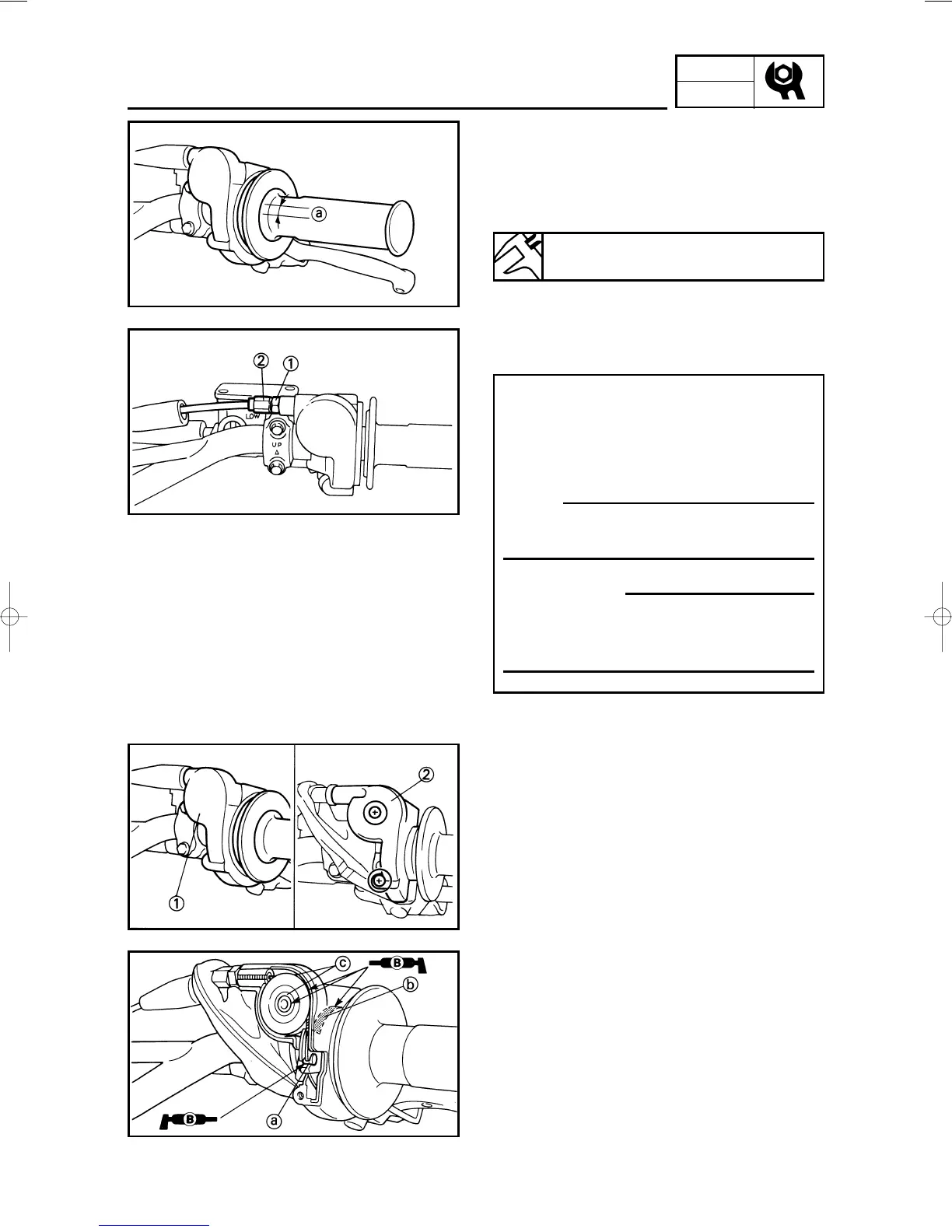

THROTTLE CABLE ADJUSTMENT
1. Check:
9
Throttle grip free play a
Out of specification→Adjust.
2. Adjust:
9
Throttle grip free play
EC35S002
THROTTLE LUBRICATION
1. Remove:
9
Cap cover 1
9
Throttle cable cap 2
2. Apply:
9
Lithium soap base grease
On the throttle cable end a, tube guide
cable winding portion b and roller sliding
surface c.
Throttle grip free play adjustment steps:
9
Loosen the locknut 1.
9
Turn the adjuster 2 until the specified free
play is obtained.
9
Tighten the locknut.
NOTE:
Before adjusting the throttle cable free play,
the engine idle speed should be adjusted.
w
After adjusting, turn the handlebar to
right and left and make sure that the
engine idling does not run faster.
Throttle grip free play ?
a
:
3~5 mm (0.12~0.20 in)
