5-13
CHAS
FRONT BRAKE AND REAR BRAKE
Extent of removal Order Part name Q’ty Remarks

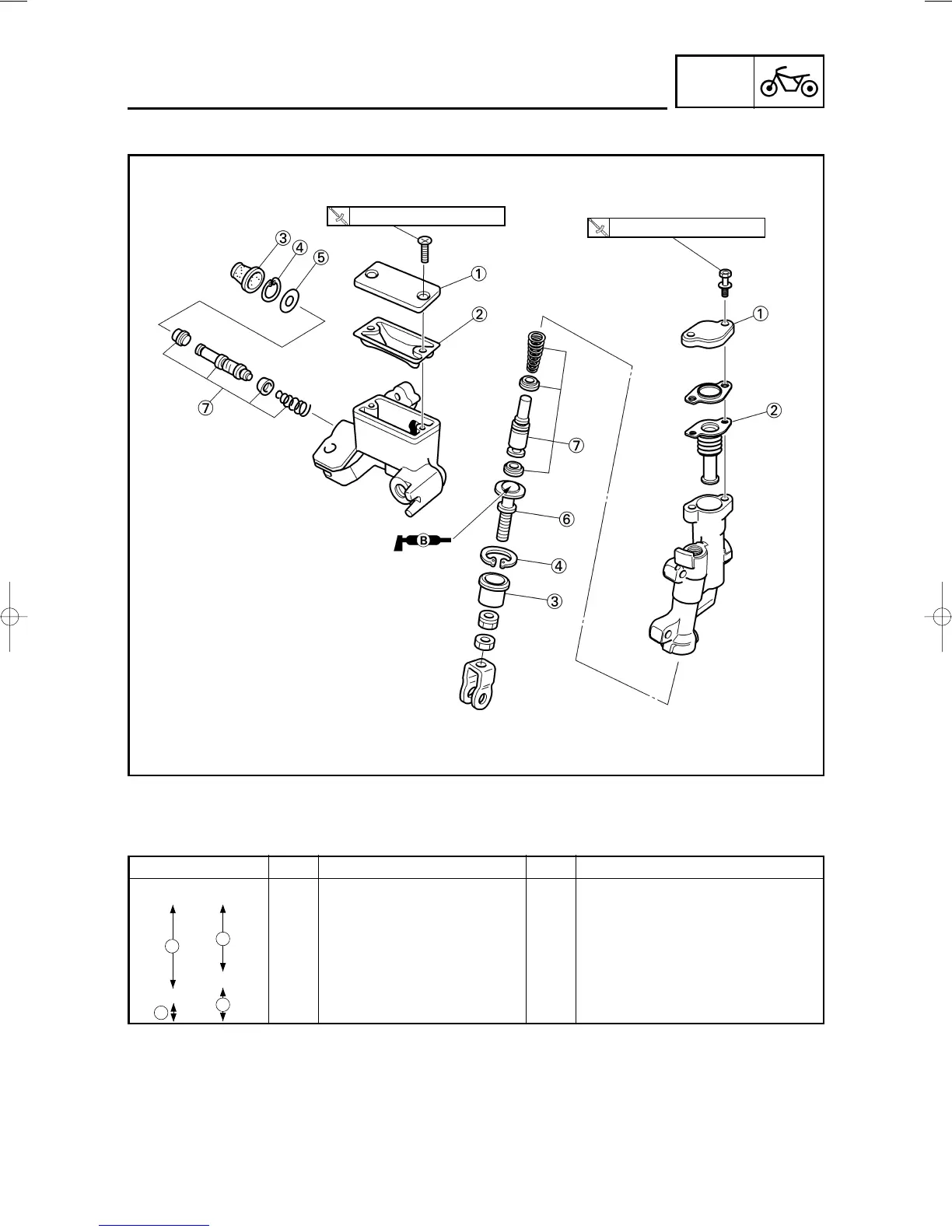

MASTER CYLINDER DISASSEMBLY
1 Master cylinder cap 1
2 Diaphragm 1
3 Master cylinder boot 1
4 Circlip 1 Use a long nose circlip pliers.
5 Plain washer 1
6 Push rod 1
7 Master cylinder kit 1
A Front
B Rear
Extent of removal: 1 Front master cylinder disassembly 2 Rear master cylinder disassembly
1
1
2
2
EC5A8300
MASTER CYLINDER DISASSEMBLY
2 Nm (0.2 m•kg, 1.4 ft•lb)
2 Nm (0.2 m•kg, 1.4 ft•lb)
å
∫
5UP-9-30-5AN 5/24/02 5:41 PM Page 26
