REAR SHOCK ABSORBER ASSEMBLY
4-53
EAS1SM5176

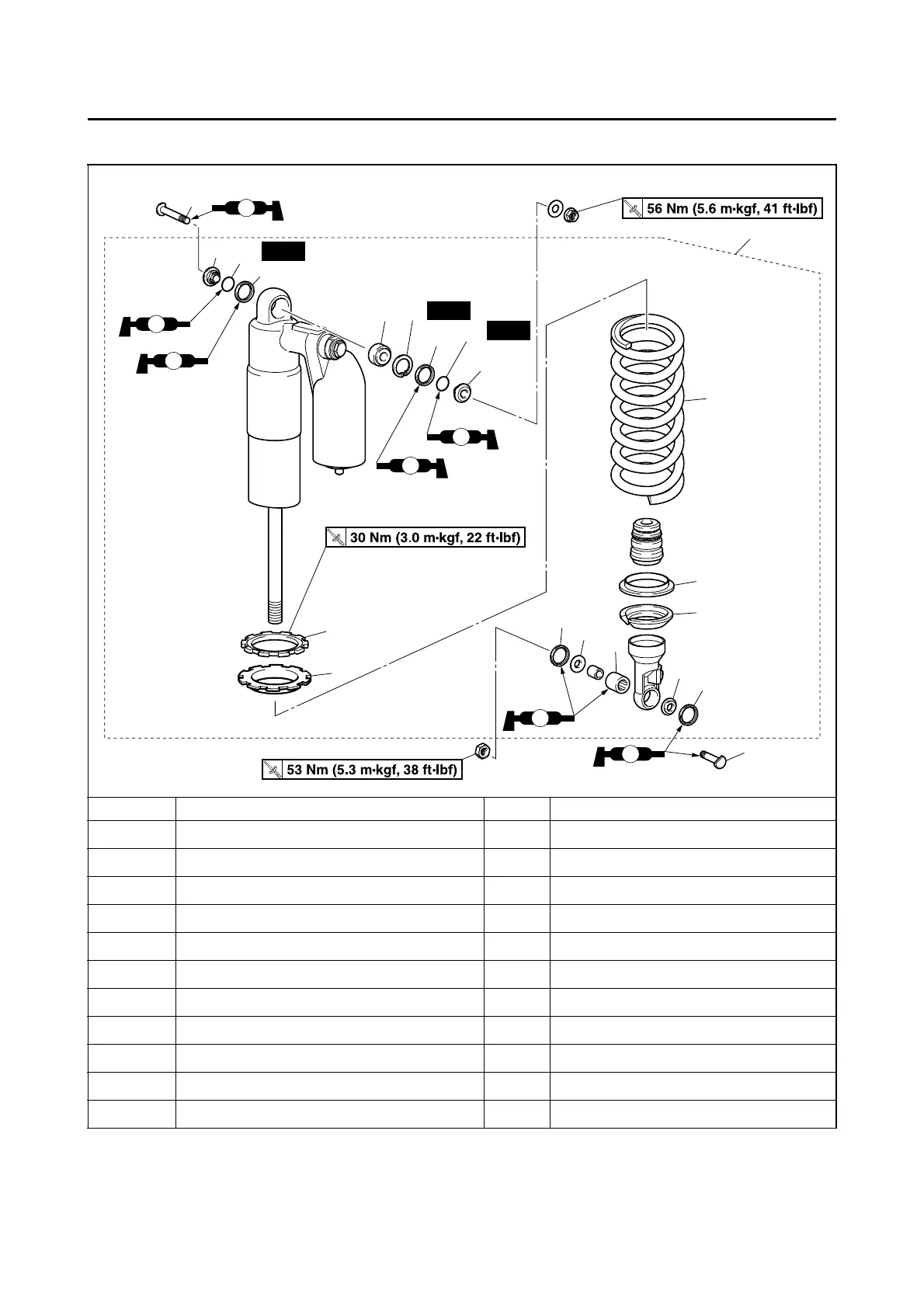

REAR SHOCK ABSORBER ASSEMBLY
Removing the rear shock absorber assembly
Order Part name Q’ty Remarks
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Rear shock absorber assembly lower bolt 1
2 Rear shock absorber assembly upper bolt 1
3 Rear shock absorber assembly 1
4 Locknut 1
5 Adjusting nut 1
6 Lower spring guide 1
7 Upper spring guide 1
2
12
16
15
14
13
12
14
4
5
7
6
8
3
9
9
10
10
11
1
New
New
13
New
LS
LS
M
M
M
M
M

Yamaha YZ250F Specifications

General

Displacement	250cc
Bore x Stroke	77.0 mm x 53.6 mm
Final Drive	Chain
Suspension / Rear	KYB® single shock; fully adjustable, 12.5-in travel
Brakes / Front	Hydraulic single disc brake, 270mm
Brakes / Rear	Hydraulic single disc brake, 240mm
Fuel Capacity	1.6 gal
Engine Type	Liquid-cooled, DOHC, 4-stroke
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	5-speed; multiplate wet clutch
Suspension / Front	KYB® Speed-Sensitive System inverted fork; fully adjustable, 12.2-in travel
Tires / Front	80/100-21
