GENERAL CHASSIS
4-1
EAS1SL5118
TIP
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, service engineers, etc.). Those who have little knowl-
edge and skill concerning servicing are requested not to undertake inspection, adjustment, disas-
sembly, or reassembly only by reference to this manual. It may lead to servicing trouble and
mechanical damage.
EAS1SL5119
GENERAL CHASSIS

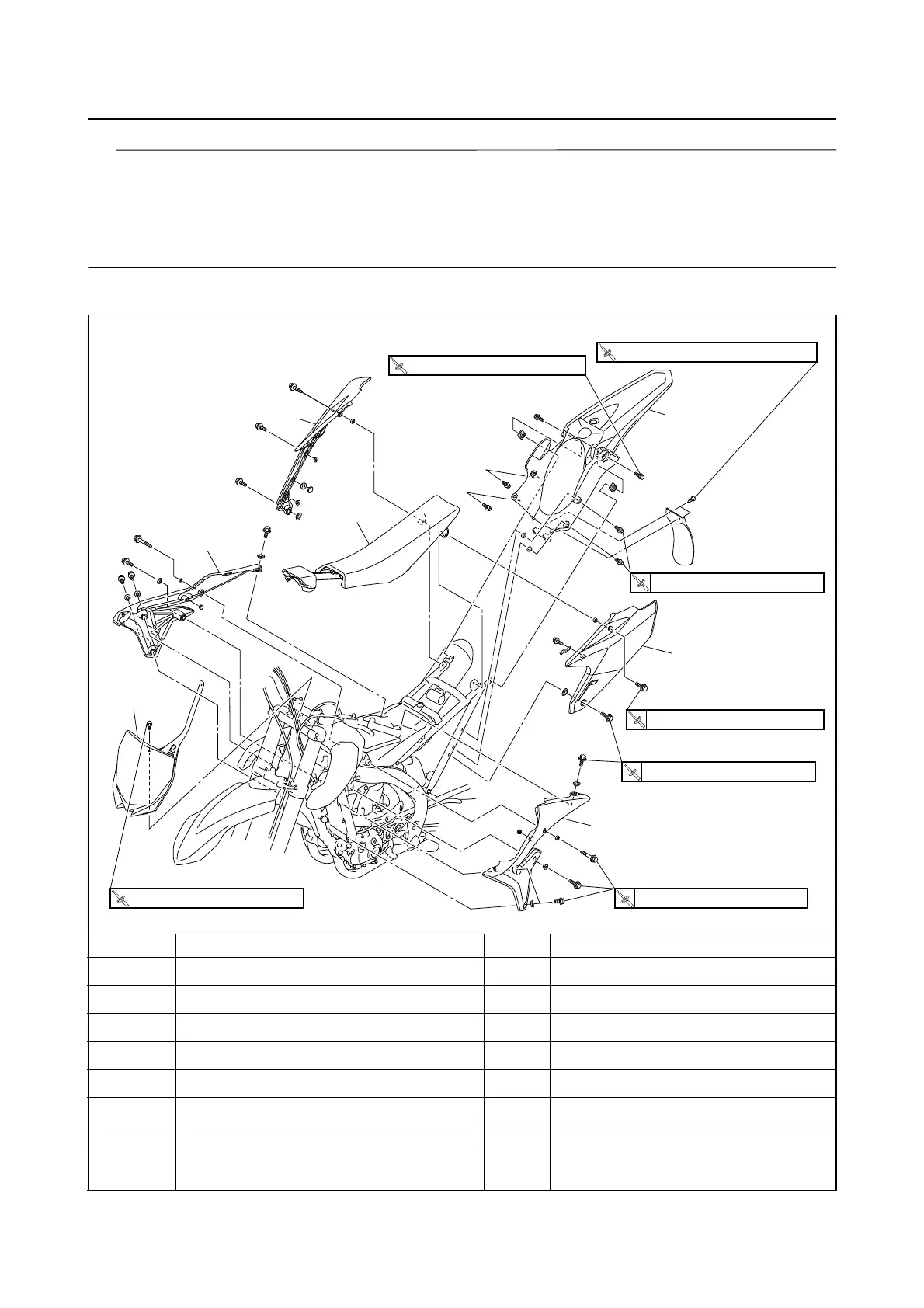

Removing the seat and side cover
Order Part name Q’ty Remarks
1 Seat 1
2 Air scoop (left) 1
3 Air scoop (right) 1
4 Side cover (left) 1
5 Side cover (right) 1
6 Number plate 1
7 Rear fender 1
For installation, reverse the removal proce-
dure.
4
(2)
7
5
1
3
6
2
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R
.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R
.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R
.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R
.
22 Nm (2.2 m
•
kgf, 16 ft
•
Ibf)
T
.R
.
1.3 Nm (0.13 m
•
kgf, 0.94 ft
•
Ibf)
T
.R
.
16 Nm (1.6 m
•
kgf, 12 ft
•
Ibf)
T
.R
.
