REAR BRAKE
4-21
EAS1SL5149

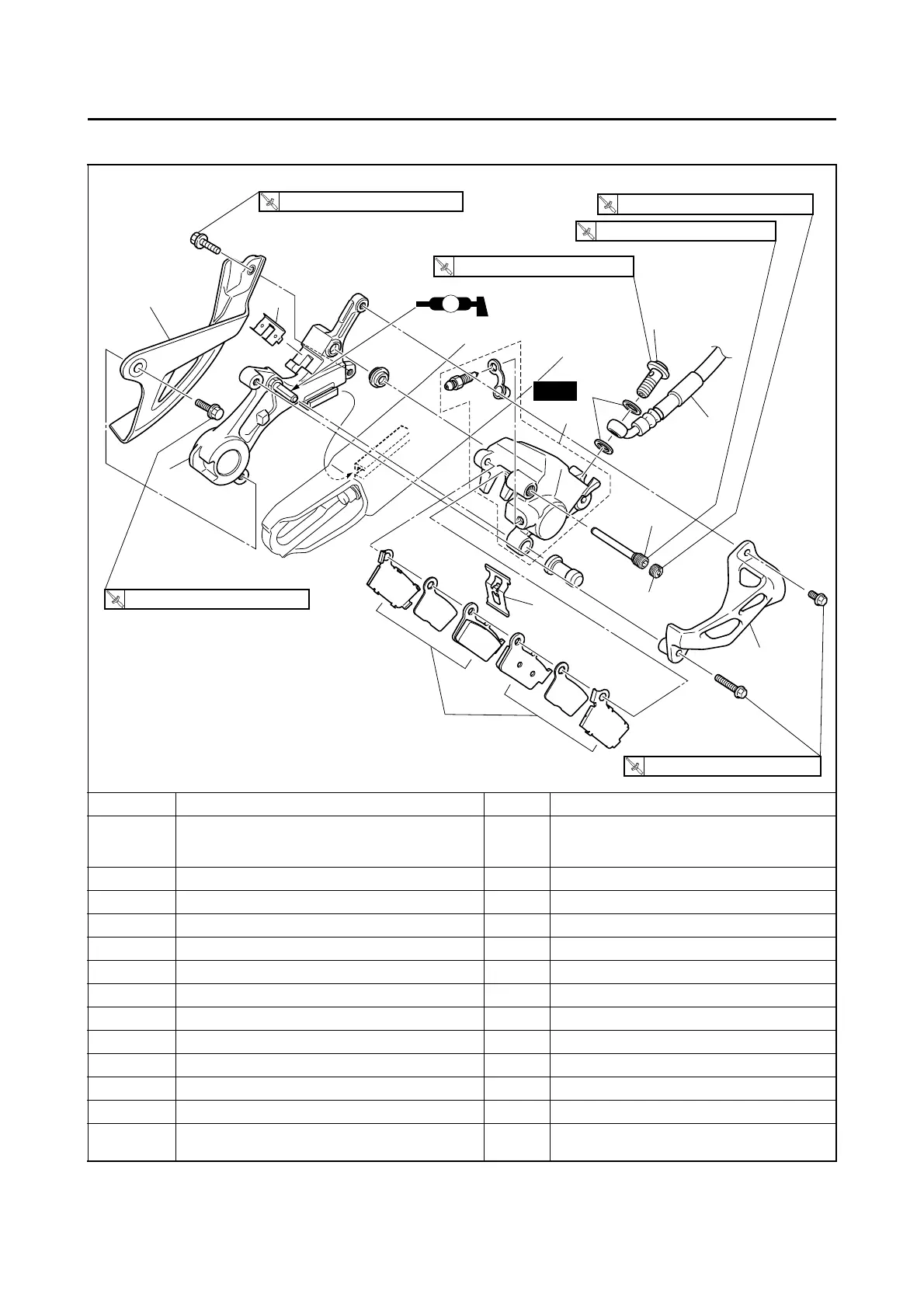

REAR BRAKE
Removing the rear brake caliper
Order Part name Q’ty Remarks
Brake fluid
Drain.
Refer to “BLEEDING THE BRAKE SYSTEM”
on page 3-21.
1 Protector 1
2 Union bolt 1
3 Copper washers 2
4 Rear brake hose 1
5 Brake pad pin plug 1
6 Brake pad pin 1
7 Rear brake pad assembly 2
8 Rear brake caliper bracket 1
9 Brake pad springs 2
10 Rear brake disc cover 1
11 Rear brake caliper assembly 1
For installation, reverse the removal proce-
dure.
2
3
4
11
5
6
7
9
1
8
9
10
2.5 Nm (0.25 m
•
kgf, 1.8 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
17 Nm (1.7 m
•
kgf, 12 ft
•
Ibf)
T
.R.
30 Nm (3.0 m
•
kgf, 22 ft
•
Ibf)
T
.R.
New
S
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
