Yamaha YZ450FV User Manual

AC MAGNETO
5-59
EAS1SL5273
AC MAGNETO

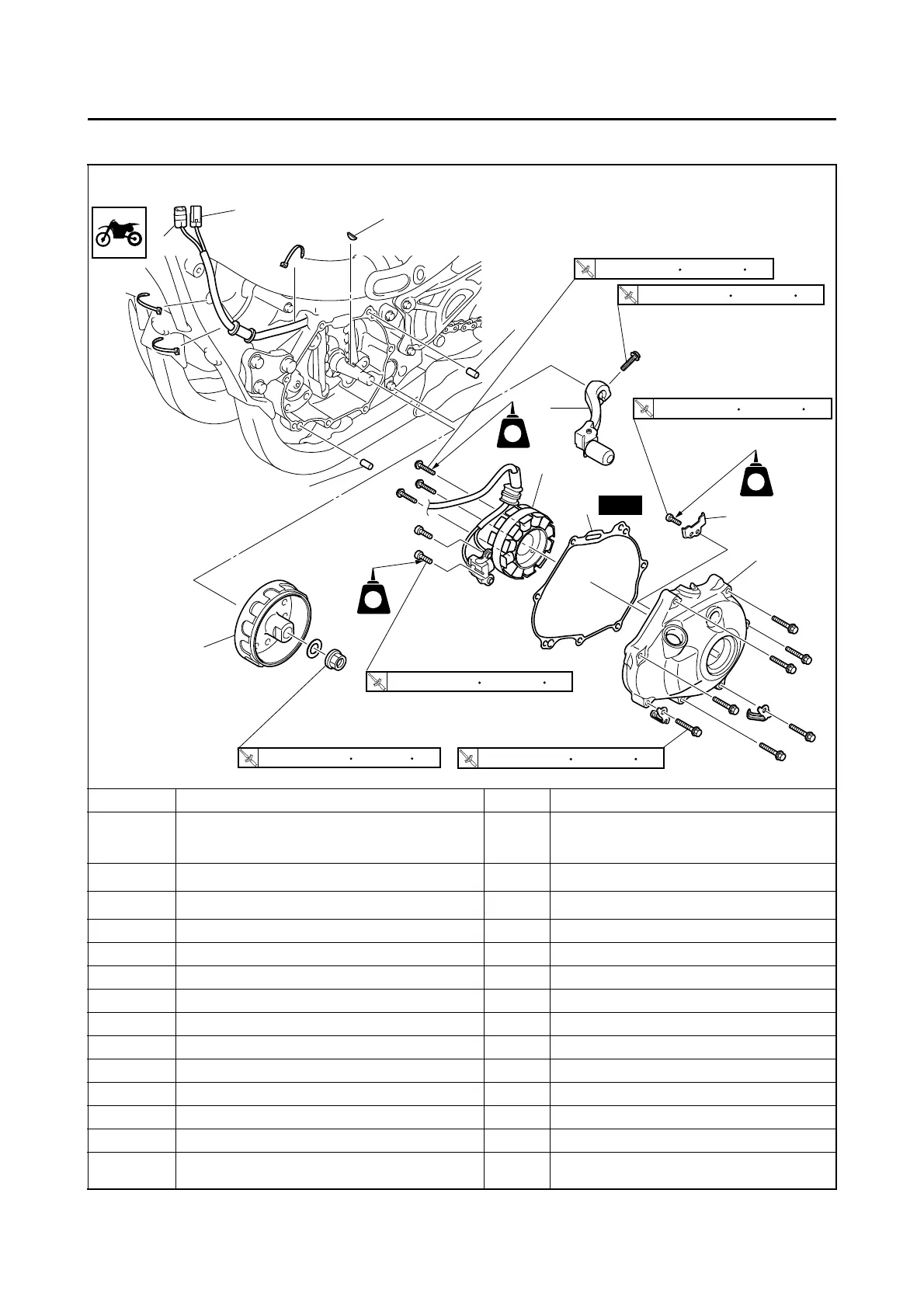

Removing the AC magneto
Order Part name Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-15.
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left) Refer to “GENERAL CHASSIS” on page 4-1.
1 AC magneto coupler Disconnect.
2 Crankshaft position sensor coupler 1 Disconnect.
3 Shift pedal 1
4 Left crankcase cover 1
5 Gaskets 1
6 Dowel pin 2
7Holder 1
8 Stator assembly 1
9 Rotor 1
10 Woodruff key 1
For installation, reverse the removal proce-
dure.
1
10
2
4
7
5
8
3
9
6
12 Nm (1.2 m kgf, 8.7 ft Ibf)
T
.R.
8 Nm (0.8 m kgf, 5.8 ft Ibf)
T
.R.
8 Nm (0.8 m kgf, 5.8 ft Ibf)
T
.R.
65 Nm (6.5 m kgf, 47 ft Ibf)
T
.R.
New
LT
6
LT
LT
10 Nm (1.0 m kgf, 7.2 ft Ibf)
T
.R.
10 Nm (1.0 m kgf, 7.2 ft Ibf)
T
.R.
