Instrument and control functions
4-1
4
EAU40661
Handlebar switch
EAU53962
Engine stop switch “ENGINE STOP”
Hold this switch pushed until the en-
gine stops.
EAU64023
Clutch lever
The clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch lever position adjusting bolt. Ad-
just the distance between the clutch le-
ver and the handlebar grip as follows.
1. Loosen the locknut.
2. While holding the clutch lever
pulled slightly towards the handle-
bar grip, turn the adjusting bolt in
direction (a) to increase the dis-
tance, and in direction (b) to de-
crease it.
3. Tighten the locknut.

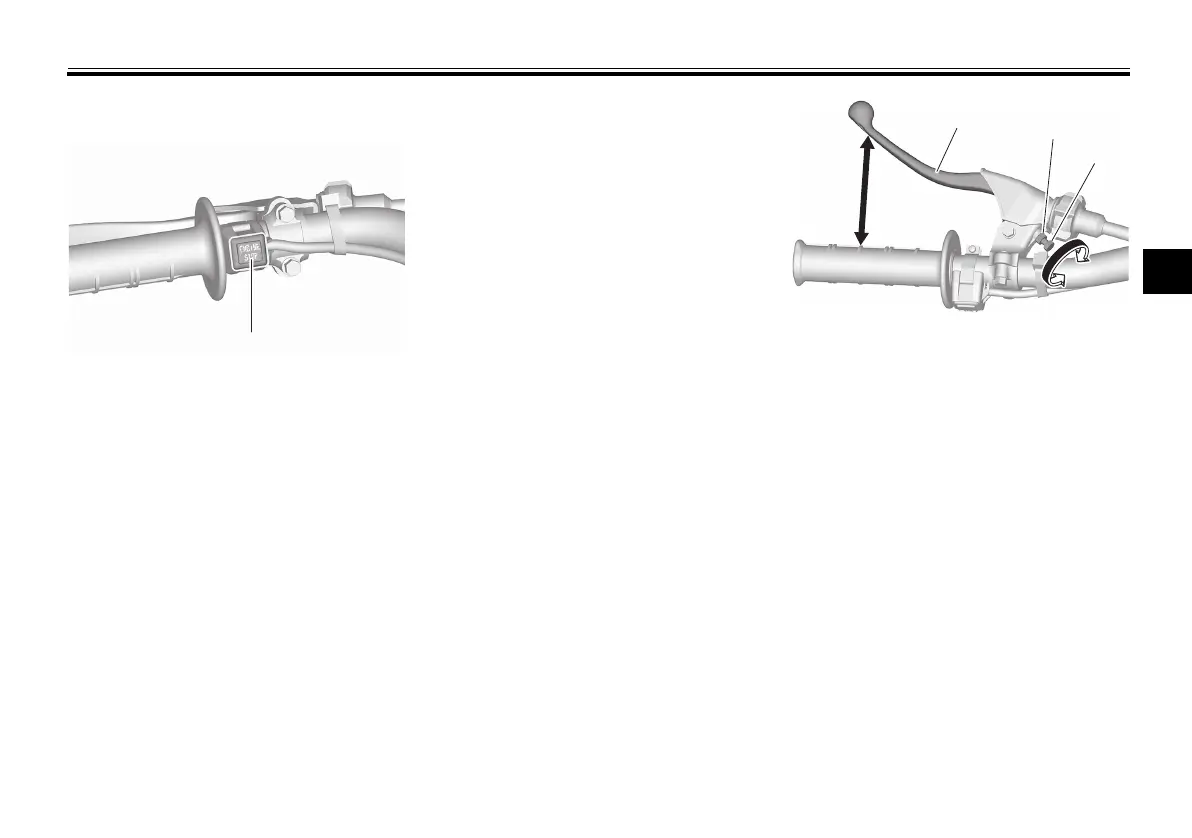

1. Engine stop switch “ENGINE STOP”
1
1. Clutch lever
2. Locknut
3. Clutch lever position adjusting bolt
4. Distance
1
2
4
3
(b)(b)
(a)(a)
(b)
(a)
