Instrument and control functions
4-8
4
2. Place the seat in the original posi-
tion, tighten the bolt, and then
close the cap.
Make sure that the seat is properly se-
cured before riding.
EAU84383
Adjusting the front fork
EWA10181
Always adjust both fork legs equally,
otherwise poor handling and loss of
stability may result.
This front fork is equipped with re-
bound damping force adjusting screws
and compression damping force ad-
justing screws.
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Rebound damping force
1. Remove the protector.
2. Turn the adjusting screw in direc-
tion (a) to increase the rebound
damping force. Turn the adjusting
screw in direction (b) to decrease
the rebound damping force. To
set the rebound damping force,
turn the adjuster in direction (a)
until it stops, and then count the
clicks in direction (b).

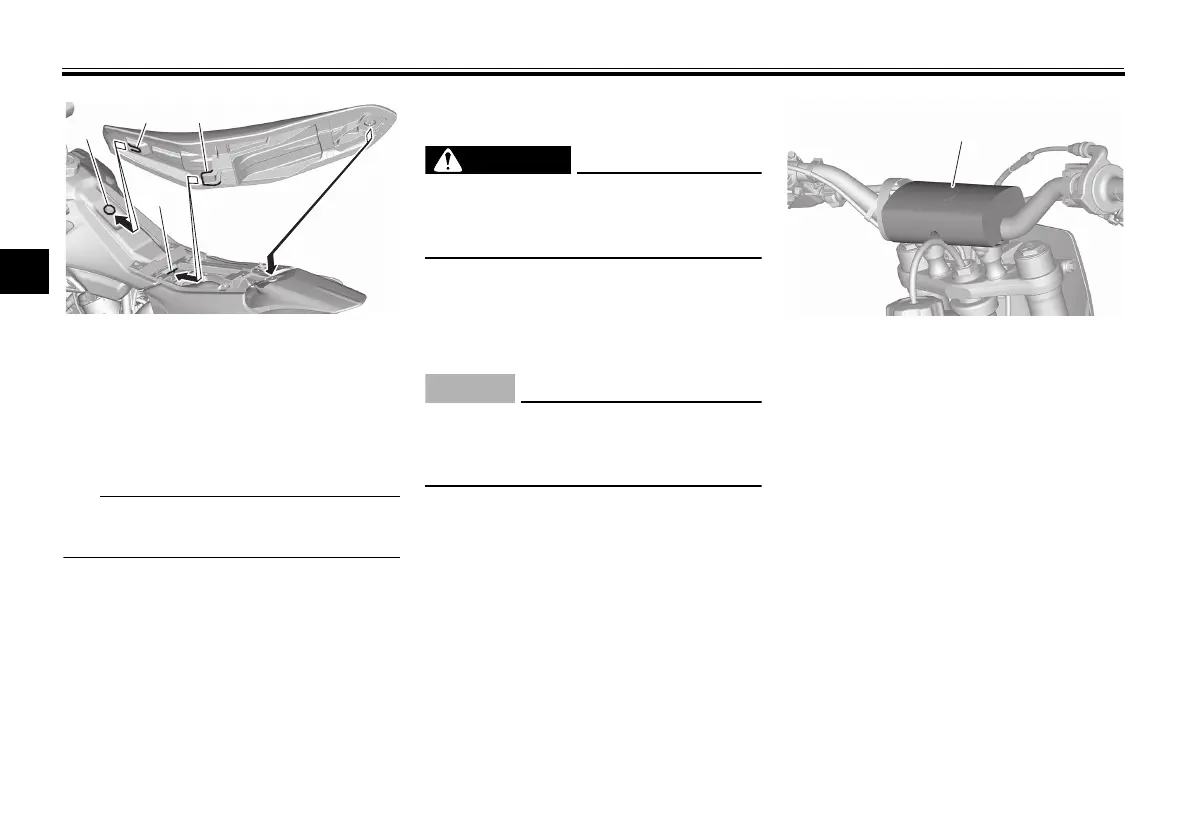

1. Slot
2. Projection
3. Seat holder
1. Protector
UB4B13E0.book Page 8 Wednesday, August 25, 2021 7:15 AM
