Instrument and control functions
4-12
4
4. Tighten the locknut to the speci-
fied torque. NOTICE: Always
tighten the locknut against the
adjusting nut, and then tighten
the locknut to the specified
torque.
[ECA10122]
5. Install the air filter joint in its origi-
nal position, and then tighten the
clamp bolts.
TIP
Align the projection on the air filter joint
with the projection on the frame guide.

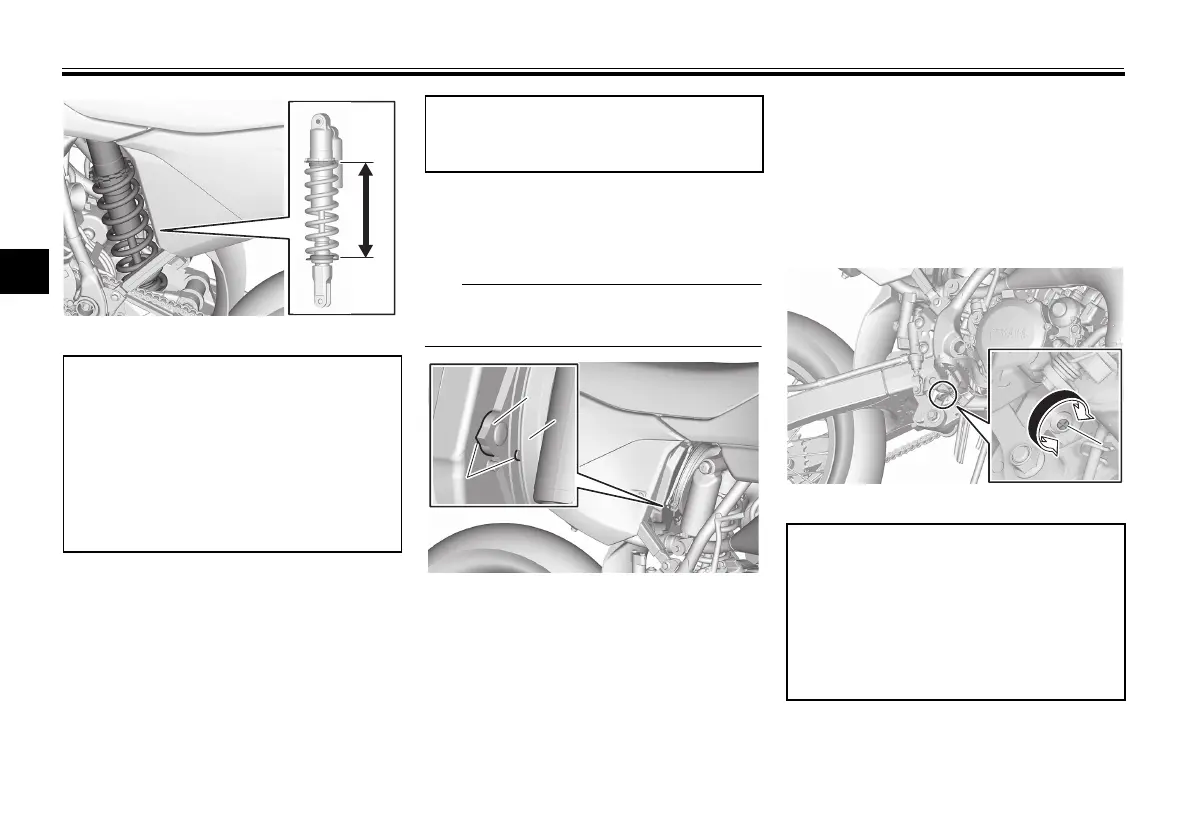

Rebound damping force
Turn the adjusting screw in direction (a)
to increase the rebound damping
force.
Turn the adjusting screw in direction (b)
to decrease the rebound damping
force.
To set the rebound damping force, turn
the adjuster in direction (a) until it
stops, and then count the clicks in di-
rection (b).
1. Distance A
Spring preload:
Minimum (soft):
Distance A = 218.5 mm (8.60 in)
Standard:
Distance A = 210.0 mm (8.27 in)
(YZ85LWN)
215.0 mm (8.46 in) (YZ85N)
Maximum (hard):
Distance A = 202.0 mm (7.95 in)
1
Tightening torque:
Locknut:
30 N·m (3.0 kgf·m, 22 lb·ft)
1. Frame guide
2. Air filter joint
3. Projection
22
11
33
1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
20 click(s) in direction (b)
Standard:
10 (YZ85LWN)
6 (YZ85N) click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
11
(a)(a)
(b)(b)
(a)
(b)
