Instrument and control functions
4-13
4
turn of the adjusting nut, dis-
tance A is changed by 1.5
mm (0.06 in).
6. Tighten the locknut to the speci-
fied torque. NOTICE: Always
tighten the locknut against the
adjusting nut, and then tighten
the locknut to the specified
torque.
[ECA10122]
7. Install the air filter joint in its origi-
nal position, and then tighten the
clamp screw and clamp bolt.
Align the projection on the air filter joint
with the projection on the frame guide.
8. Place the left side panel in its orig-
inal position, and then install the
bolt.
9. Install the seat.
Rebound damping force
Turn the adjusting screw in direction (a)
to increase the rebound damping for-
ce.
Turn the adjusting screw in direction (b)
to decrease the rebound damping for-
ce.
To set the rebound damping force, turn
the adjuster in direction (a) until it
stops, and then count the clicks in di-
rection (b).

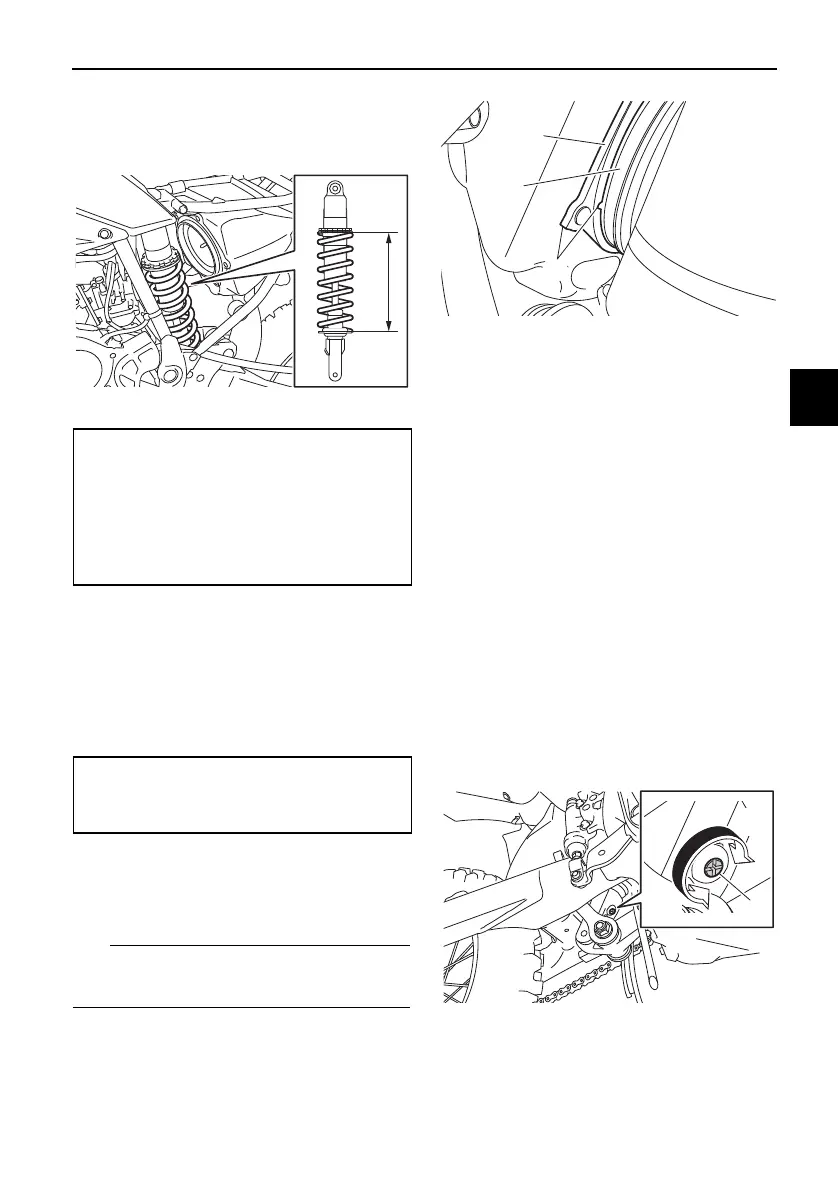

1. Distance A
Spring preload:
Minimum (soft):
Distance A = 218.5 mm (8.60 in)
Standard:
Distance A = 215.0 mm (8.46 in)
Maximum (hard):
Distance A = 202.0 mm (7.95 in)
Tightening torque:
Locknut:
30 N·m (3.0 kgf·m, 22 lb·ft)
1. Frame guide
2. Air filter joint
3. Projection
1. Rebound damping force adjusting screw
