Periodic maintenance and adjustment
7-29
7
5. Remove the wheel. NOTICE: Do
not apply the brake after the
wheel and brake disc have been
removed, otherwise the brake
pads will be forced shut.
[ECA11073]
To install the front wheel
1. Make sure the brake pads have
not been forced shut.
2. Lift up the wheel between the fork
legs.
3. Insert the wheel axle from the right
side.
4. Install the washer and axle nut.
5. Tighten the axle nut to the speci-
fied torque.
EAU25081

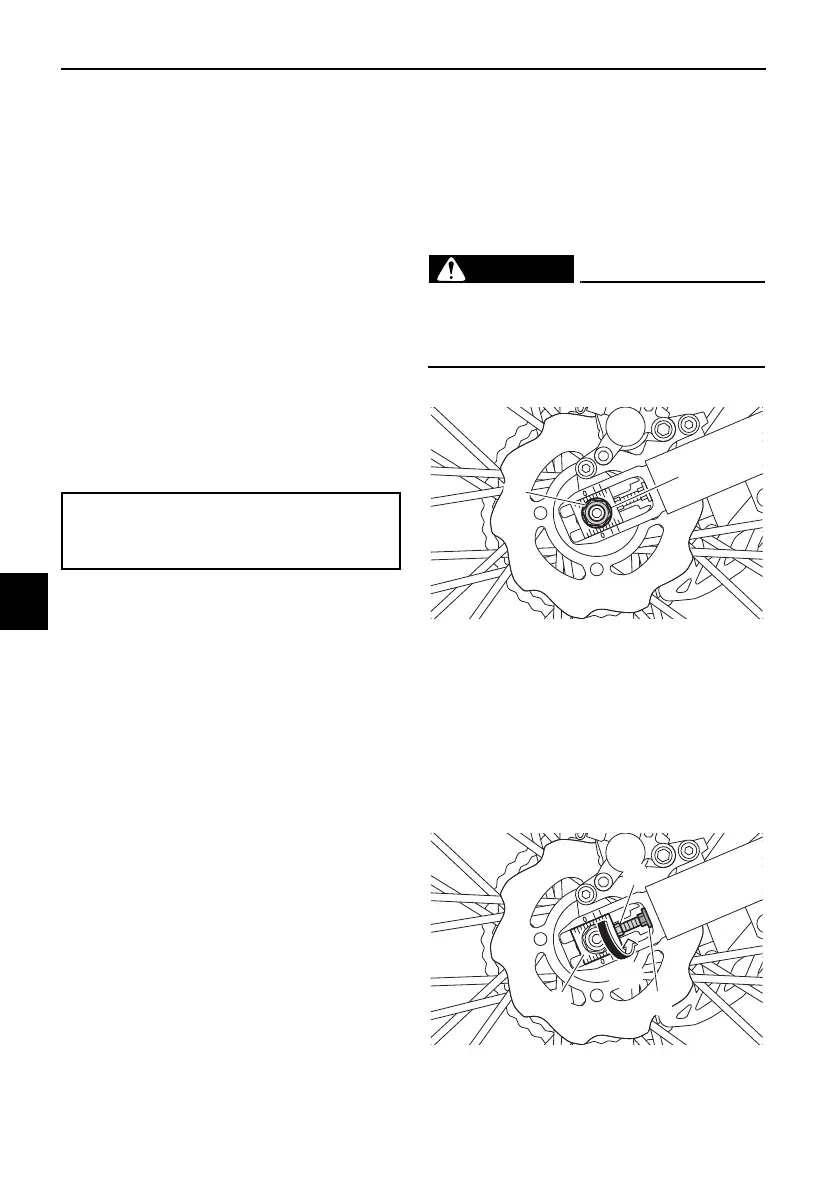

Rear wheel
EAU84051
To remove the rear wheel
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.
1. Loosen the axle nut.
2. Place the motorcycle on a suitable
stand. (See page 7-28.)
3. Loosen the locknut, and then turn
the drive chain slack adjusting bolt
in direction (a). Repeat for the oth-
er side.
Tightening torque:
Axle nut:
70 N·m (7.0 kgf·m, 52 lb·ft)
1. Axle nut
2. Washer
1. Drive chain slack adjusting bolt
2. Locknut
3. Drive chain puller
UB4B11E0.book Page 29 Tuesday, February 19, 2019 1:10 PM
