INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
EAU33860
Seats
Rider seat
To remove the rider seat
Pull back the rear of the rider seat as
shown, remove the bolts, and then pull
the seat off.
To install the rider seat
Insert the projection on the front of the
rider seat into the seat holder as
shown, place the seat in the original po-
sition, and then install the bolts.
Passenger seat
To remove the passenger seat
1. Insert the key into the seat lock,
and then turn it clockwise.
2. While holding the key in that posi-
tion, lift the front of the passenger
seat and pull it forward.
To install the passenger seat
1. Insert the projection on the rear of
the passenger seat into the seat
holder as shown, and then push
the front of the seat down to lock it
in place.
2. Remove the key.
NOTE:
Make sure that the seats are properly
secured before riding.

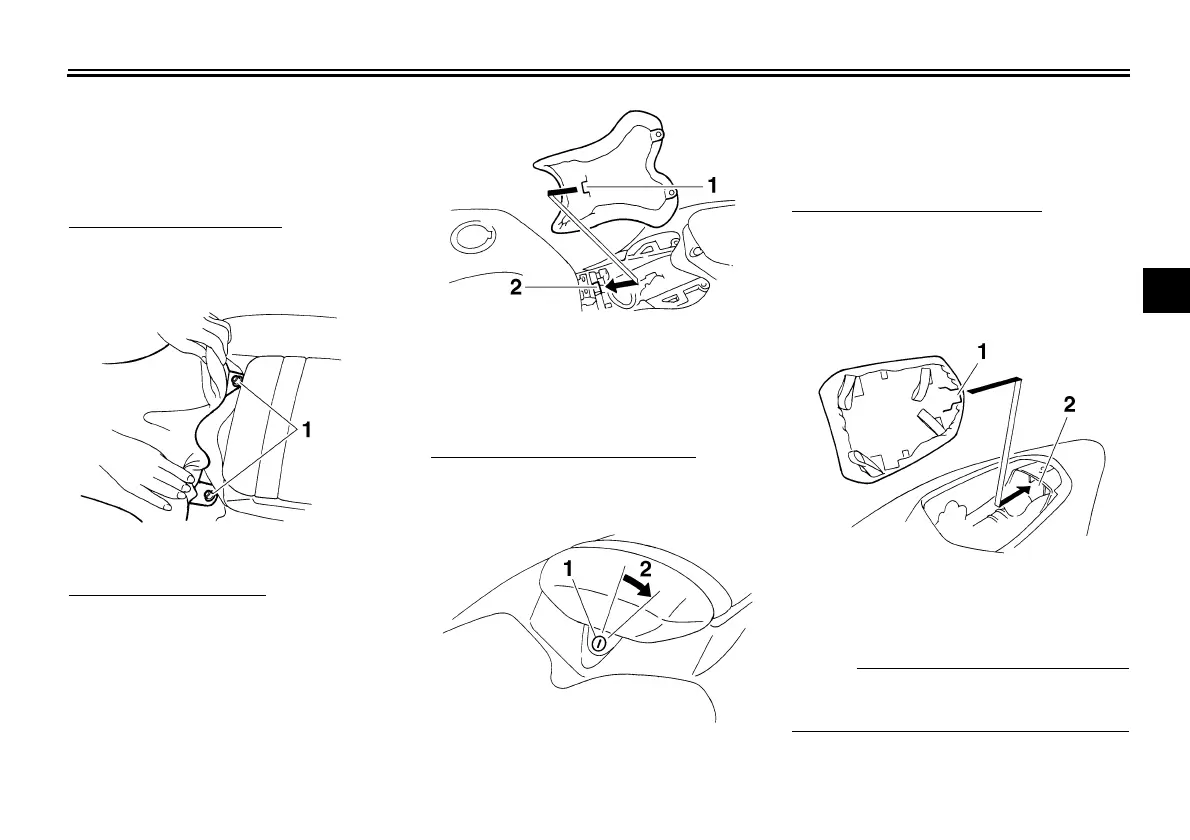

1. Bolt
1. Projection
2. Seat holder
1. Passenger seat lock
2. Unlock.
1. Projection
2. Seat holder
