Yamatake Neostat T6065 Series User Manual

3 AB-5881

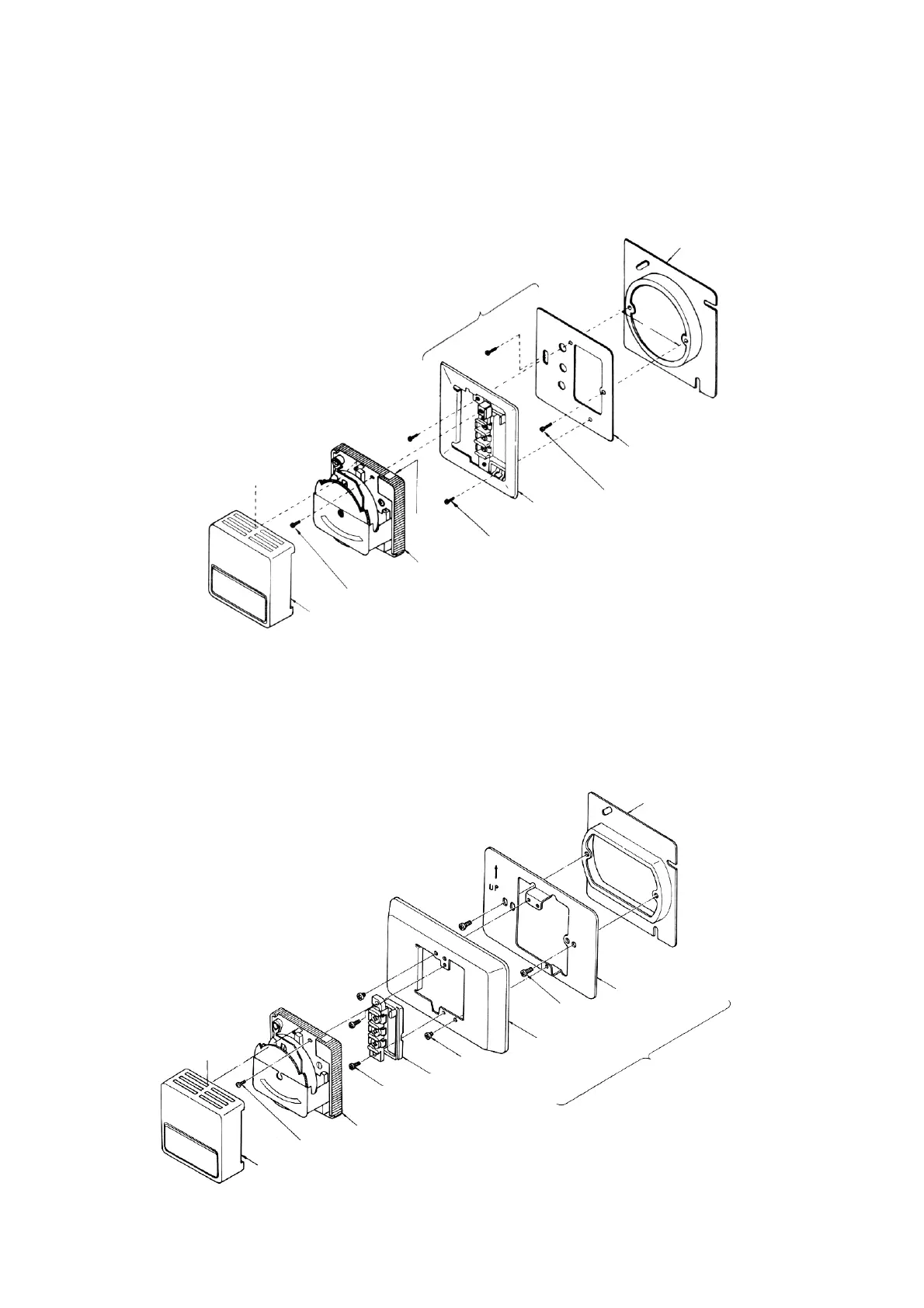

Mounting Procedure of Baseplate (See Fig. 3)
1. Install box cover with pitch of 66.7 mm (Box cover JIS
C 8339) on the outlet box when needed.
2. Put mounting plate (order separately) on the box
cover.
3. Then put baseplate (order separately) on the
mounting plate.
4. Wire the baseplate. Refer to wiring section.
5. Remove the cover. (See Fig. 5) Then, mount the
Neostat on the baseplate. See Fig. 6 also.
6. Replace the cover.
Fig.3 Mounting baseplate
Mounting Procedure of Thermo plate (See Fig. 4)
1. Mount the Thermo plate. Refer to the instruction of
Thermo plate.
2. Mount the terminal block on the baseplate.
3. Wire the terminal block. Refer to wiring section.
4. Remove the cover. (See Fig. 5) Then, put the Neostat
on the baseplate (See Fig. 6) and mount to the
terminal block.
5. Replace the cover.
Fig.4 Mounting thermo plate
Cover
Neostat mounting screw
M3, L=8
Terminal block mounting screw
M2.6×8, Tapping screw (2)
Neostat
Terminal block
Baseplate
mounting screw
Baseplate
Mounting plate
Mounting screw
Mounting
Plate
Box cover
Thermo plate (Order separately-
Figure shows QY10A01J1)
Order separately
(
base
p
late
)
Cover
Mounting screw for body
M3, L=8
Mounting screw for base plate
M3, L=3 (2)
Neostat
Base plate
Knock out
for surface
wirin
g
Mounting screw
M3, L=8 (2)
Mounting plate
Box cover
(JIS C 8339)
Pitch of
66.7 mm
