Yamatake Neostat T6065 Series User Manual

2 AB-5881

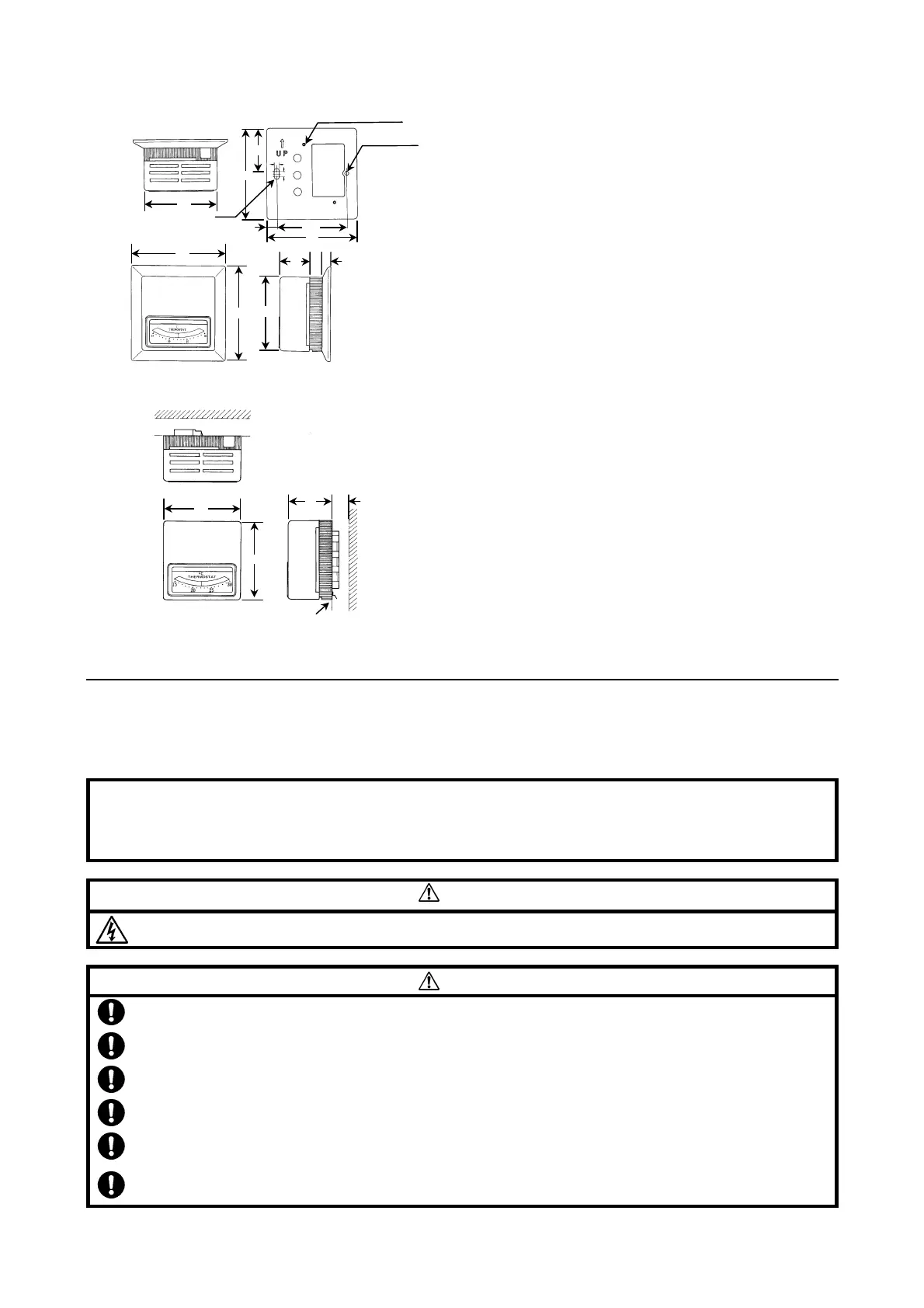

Fig.1 Dimensions in mm.-with baseplate and mounting plate
model
Fig.2 Dimensions in mm.-without baseplate and mounting
plate model
Installation
Location
1. Locate the Neostat about 1.5 m (5 ft.) above the floor
where average temperature and humidity of the space
can be measured.
2. Avoid “dead spots” such as behind large pieces of
furniture or doors without good air circulation.
3. Do not mount the Neostat where it may be affected by
drafts, hot or cold air from ducts, radiant heat from the
sun or appliances.
4. Do not mount the Neostat where it may be affected by
vibration.
5. Do not mount the humidity controller where it may be
affected by water drop. Do not allow dew
condensation to form on the unit.
Safety Instructions
Please read these instructions carefully and use the product properly. Please keep these instructions on hand for refer-
ence at any time.
Usage Restrictions
This product is targeted for general air conditioning. Do not use this product in a situation where human life may be
affected. If this product is used in clean rooms or places where reliability or control accuracy is particularly required,
please contact Yamatake’s sales representatives. Yamatake Building Systems Co., Ltd. bears no responsibility for
any benefit, or lack of benefit, derived from the operation by the customer.
CAUTION
●
Disconnect the power supply before beginning wiring to prevent electrical shock.
CAUTION
●
Installer must be a trained, experienced service technician.
●
Check the ratings given in this instruction to prevent equipment damage.
●
Check the environment given in this instruction to prevent equipment damage.
●
All wiring must conform to local codes and ordinances.
●
Use crimp contacts with insulation jackets for wire terminals.
●
Do not dissolve this product except for removing the cover during wiring or part replacement to prevent
equipment damage.
M3 Tapped-Hole (2)
4.4 DIA
Mountin
g
Hole
72
90
90
71
27 1 8
66.7
86
9.7
86
43
5
5
72
71
39
15
Thermo plate (Order Separately)
Mounting hole
