Yamatake Neostat T6065 Series User Manual

4 AB-5881

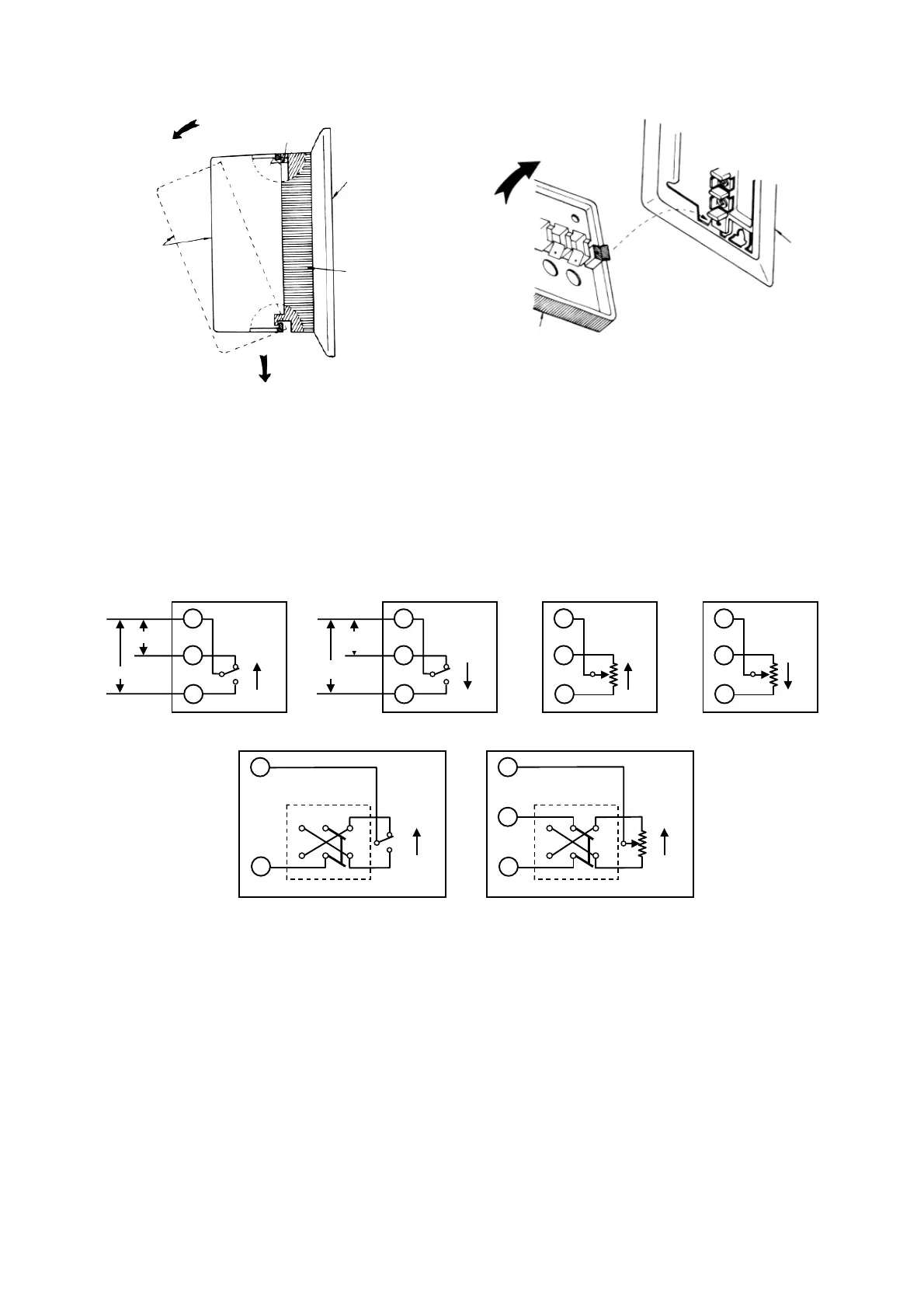

Fig. 5 Attach/detach cover Fig. 6 Install Neostat
Wiring
All wiring must comply with local electrical codes and
ordinance. In general these codes require:
1. Wire no smaller than #14 (1.6 mm).
2. All terminal connections should be carefully made. In
making surface wiring, use knockout on the top of the
body where marked.
3. Make correct wiring. Check the screw terminals for
loose connections.
Fig.7 Connection diagram
Setting
1. Remove the cover.
2. T6065B and T9065B have S/W changeover switch.
Set the lever in the specified position. See Fig. 10.
Note: When the equipment is energized, do not
change the switch.
3. The temperature controller have setpoint stoppers
(Fig. 8) and the humidity controller have a setpoint
lock screw (Fig. 9). The Neostat is shipped from the
factory with setpoint dial locked in the position as
follows:
Temperature controller→30 °C
Humidity controller 30 to 80 % RH model→80 % RH
50 to 90 % RH model
→
90 % RH
After sliding the stoppers of the temperature controller
or after loosening the lock screw of the humidity
controler, adjust the setpoint dial to the desired
temperature or humidity. Setpoint is the center of
throttling range for proportional controllers. For two-
position controllers, see Figs. 11 and 12.
4. Set the setpoint stoppers or a lock screw as occasion
calls.
5. Replace the cover.
Push spring plate
for opening
Cover
Neostat
Baseplate
T9065B
R
W
R
B
W
B
S/W changeover SWS/W changeover SW
T6065B
R
W
R
B
(Summer)
B
H615A
R
Humidifi-
cation
Dehumidi-
fication
B
W
T6065A
Rise
R
Cooling
Heating
W
B
H915A
R
B
W
T9065A
R
W
B
Rise
Rise
Rise
RiseRise
(Winter)
SW
(Summer)
(Winter)
SW
Clutch, push down and
fasten using the
Neostat mounting
screw shown in the
Fig.3 and Fig4.
Back of Neostat
Baseplate
