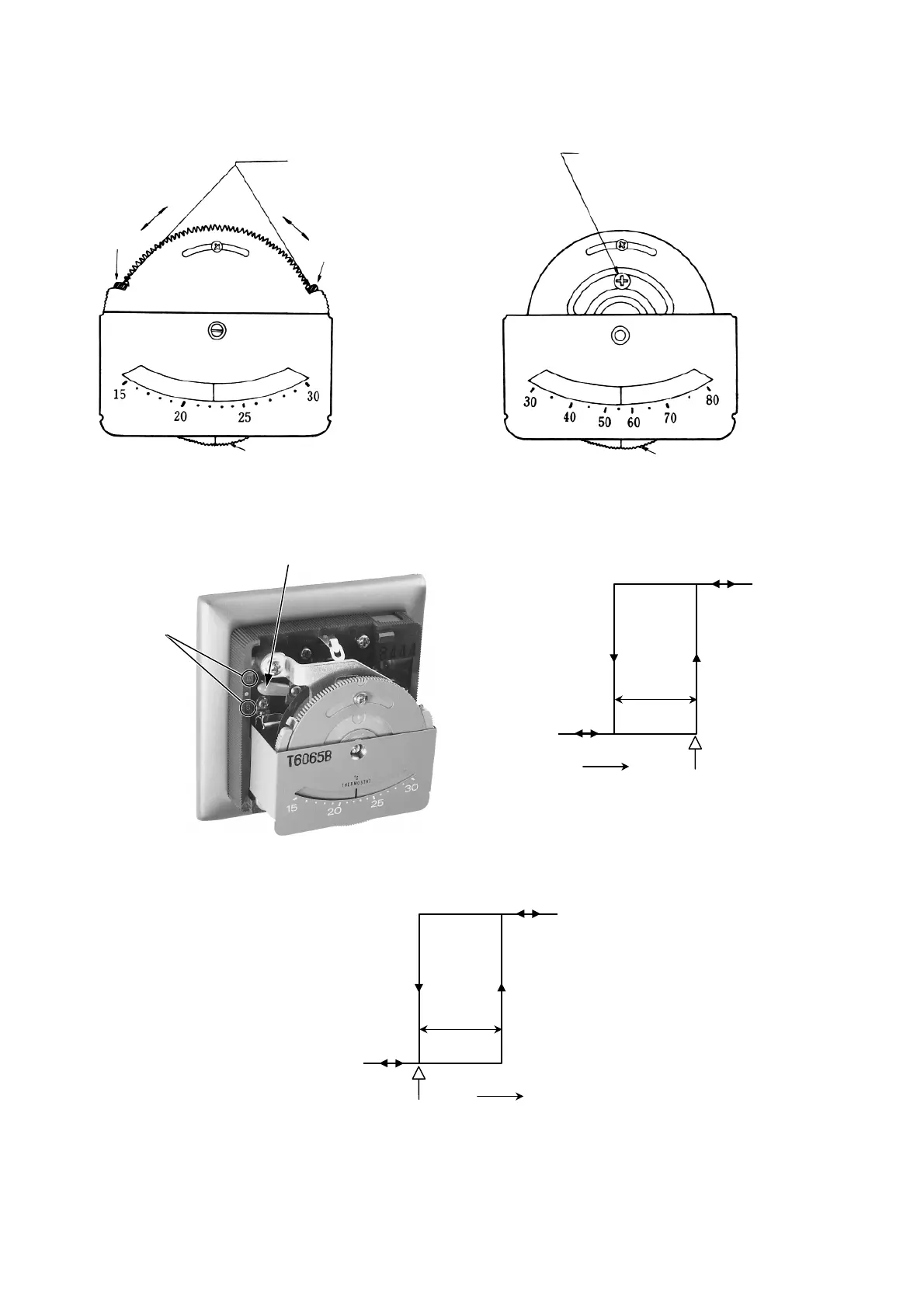

5 AB-5881
Fig. 8 Temperature controller Fig. 9 Humidity controller
Fig. 10 Summer-Winter changeover switch
of T6065B, T9065B
Fig. 11 H615A Switching action
Fig.12 T6065A, B Switching action
Setpoint dial
Upper stopper
The setpoint stoppers can be
moved in the direction of the
arrows by lightly pressing inward.
To fix the setpoint, set the
setpoint dial to the desired
temperature and place the both
stoppers in the central position.
Set
p
oint dial
Setpoint lock screw
By tightening the lock screw, the setpoint can be
fixed.
- Undo the setpoint lock
Turn the lock screw about two turns counter-
clockwise.
- Lock the setpoint
Set the setpoint dial to the desired temperature
and turn the lock screw about two turns clockwise.
Note: When the equipment is
energized, do not move
S/W changeover
switch.
Summer-winter
changeover switch
Summer-winter
indication
S: Summer
W: Winter
Makes R-B
Humidity rise
Makes R-W
Differential
Setpoint
T6065A : Makes R-B
T6065B : Makes R-B (change over SW. in
Winter position)
Makes: R-B (change over SW. in
Summer position)
Temperature
rise
T6065A : Makes R-W
T6065B : Makes R-B (change over SW. in
Winter position)
Breaks: R-B (change over SW. in
Summer position)
Setpoint
Differential
