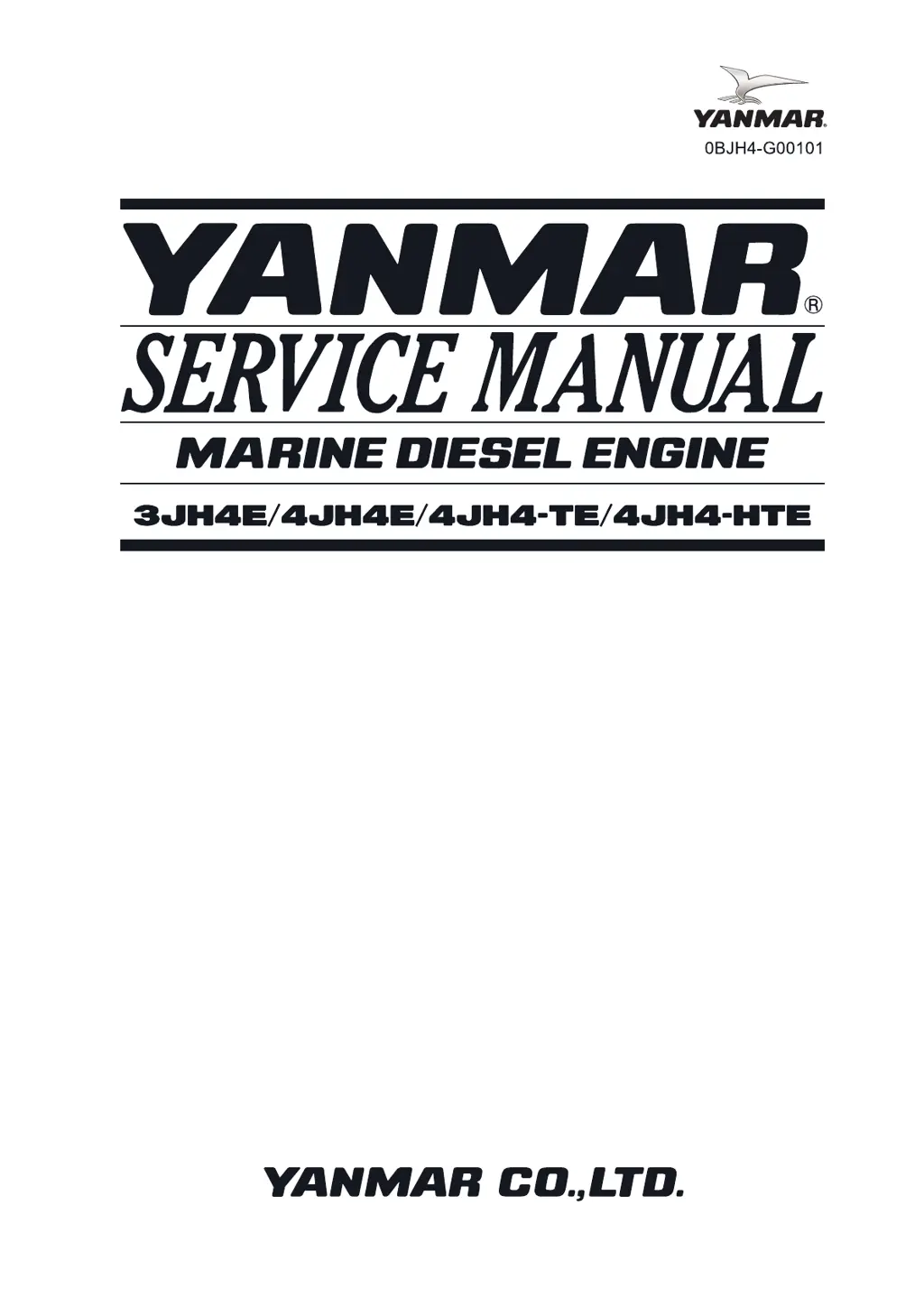

Yanmar 4JH4-TE - Service Manual

Other manuals for Yanmar 4JH4-TE

Questions and Answers

G
gregory20Sep 23, 2025
What to do if indicators light on the instrument panel and alarm sounds during Yanmar 4JH4-TE Engine operation?
- M
  Ms. Jennifer Reynolds MDSep 23, 2025
  If indicators light up on the instrument panel and an alarm sounds during operation of your Yanmar Engine, immediately shift to low-speed operation and check which indicator has come on. Stop the engine and inspect. If you don't identify any abnormalities and there are no operational problems, return to port at the lowest speed and request repairs.
M
Meghan JonesAug 23, 2025
What to do if the starter turns, but Yanmar 4JH4-TE Engine does not start?
- D
  David ClarkAug 23, 2025
  If your Yanmar Engine's starter turns, but the engine does not start, first check if there is enough fuel and replenish it, bleeding the air. If the fuel filter is clogged, replace the element. If you are using improper fuel, replace it with the recommended fuel. If the problem persists, it may be a faulty fuel injection system or compression leakage, and you should ask for repairs.
R
Rebecca HaleAug 25, 2025
Why Yanmar 4JH4-TE starter turns but engine does not start?
- A
  Angelica CohenAug 26, 2025
  If your Yanmar Engine's starter turns but the engine doesn't start, it might be due to several reasons. You may have no fuel, so add fuel and bleed the fuel system. The fuel filter might be clogged, so replace the filter element. It could also be due to improper fuel, so replace it with the recommended fuel. For issues with fuel injection or compression leakage, consult your authorized Yanmar Marine dealer or distributor.
E
Emily LuceroAug 26, 2025
Why Yanmar Engine producing black smoke?
- I
  ijoyceAug 27, 2025
  If the exhaust from your Yanmar Engine is producing black smoke, it may be due to a few reasons. It could be that the load has increased, or there's an improper propeller matching. The intake silencer (air cleaner) might be dirty, so clean the element. Using improper fuel can also cause black smoke, so replace it with the recommended fuel. For a faulty spraying of the fuel injector, consult your authorized Yanmar Marine dealer or distributor.
J
John RobersonAug 27, 2025
What to do if the coolant temperature high alarm warning lamp goes on in Yanmar 4JH4-TE Engine?
- M
  Matthew RosalesAug 27, 2025
  If the coolant temperature high alarm warning lamp goes on in your Yanmar Engine, first check the coolant level and replenish if needed. Then, inspect the seawater system. If the problem persists, it may be due to contamination inside the cooling system, and you should ask for repairs.
M
Martha LangSep 16, 2025
What to do if not enough water is discharged from Yanmar 4JH4-TE Engine?
- O
  odixonSep 16, 2025
  If the water discharge from the Yanmar Engine's seawater outlet pipe is low, stop the engine immediately. Identify the cause and repair.
A
Ashley ThompsonSep 13, 2025
What to do if Yanmar 4JH4-TE Engine has abnormal vibrations or noise?
- C
  Claudia MckinneySep 13, 2025
  Engine and hull resonance may suddenly increase at certain engine speed ranges, causing heavy vibrations in Yanmar Engine. Avoid operation in this speed range. If any abnormal sounds are heard, stop the engine and inspect for cause.
A
Andrew HartSep 14, 2025
What to do if alarm sounds during Yanmar 4JH4-TE Engine operation?
- J
  John CarrSep 15, 2025
  If the alarm sounds during Yanmar Engine operation, immediately lower the engine speed, check the warning lamps and stop the engine for repairs.
S
Shane SnyderSep 5, 2025
Why warning lamps do not go on in Yanmar 4JH4-TE?
- M
  Michelle WaltonSep 5, 2025
  If the warning lamps on your Yanmar Engine do not go on, it could be due to low lube oil pressure or water in the sail drive seal alarm. It can also happen if there is no current available, or the circuit is broken, or the lamp is burnt out. In all of these cases, ask for repairs.
K
Kevin FlynnSep 3, 2025
What to do if alarm buzzer and alarm lamps are on during operation of Yanmar 4JH4-TE?
- M
  Meredith CardenasSep 3, 2025
  If the alarm buzzer and alarm lamps are on during Yanmar Engine operation, shift to low speed immediately and check which lamp has come on. Stop the engine for inspection. If no abnormality is identified and there is no problem with operation, return to port at your lowest speed and request repairs.

Yanmar 4JH4-TE Specifications

General

Number of Cylinders	4
Aspiration	Turbocharged
Fuel System	Direct injection
Alternator	12V - 80A
Cooling System	Fresh water cooling with heat exchanger
Engine Type	4-stroke, water-cooled diesel engine
Rated Output	55 kW (75 mhp) at 3200 rpm
Starting System	Electric starting
Lubrication System	Forced lubrication with gear pump
