Periodic Inspection
83
Deviation between cutter blade and backing edge at
the end of stroke A (0-3mm)
Max. gap between the upper side of cutter blade and
backing edge B (1.7mm)
Max. gap between the lower side of cutter blade and
backing edge C (0.5mm)
Max. gap between the front and rear ends of cutter
blade D (0.79mm)
If the gap is too large, adjust with a shim (accessory).
[Precaution]
Do not screw the adjusting bolt M8 too tight.
Remove chaff, mud and oil on cutter blades
after daily operation.
Raise the reel to the highest position when
adjusting cutter blades.
In the fixed part of the backing edge, there
might be spacers for the gap adjustment.
<Checking>

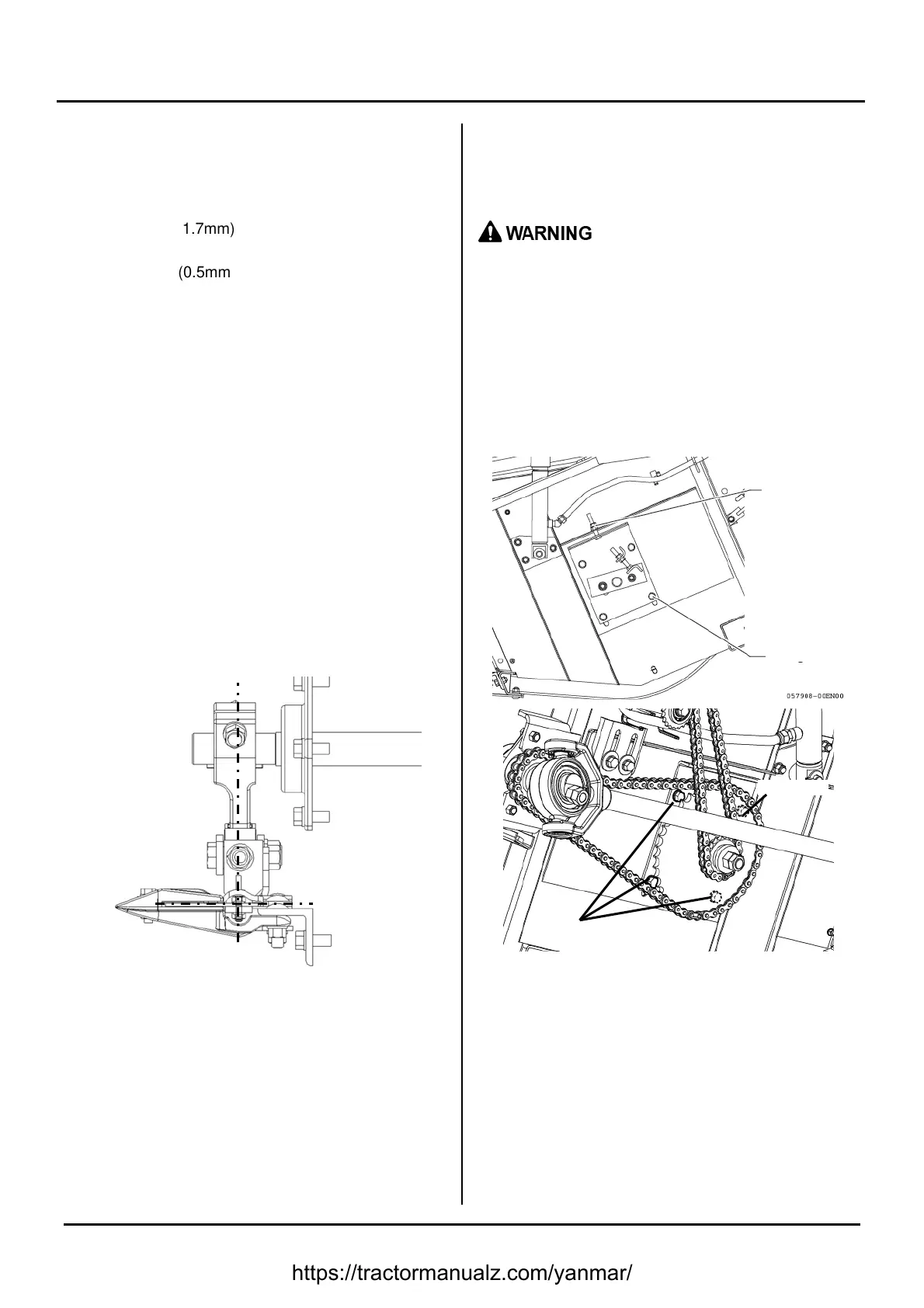

The cutting blade is installed perpendicularly to the
cutting blade drive (the knife head and the drive are
positioned in parallel.)
16. Adjusting the gap between
platform auger and base plate
Be careful that both the cutter blades and
reel will move when you rotate the platform
auger with hand.
<Adjusting>
1- Raise the reel to the highest position.
2- Loosen the 8 fixing bolts on both ends of the auger.
3- Use the adjusting bolt to set the auger to a proper
height.
4- Adjust the gap between the auger and base plate to
9±1mm.
5- Tighten the fixing bolts on both ends of the auger.
Fixing bolt
Fixing bolt
Fixing bolt
Adjusting bolt
