Periodic Inspection
86

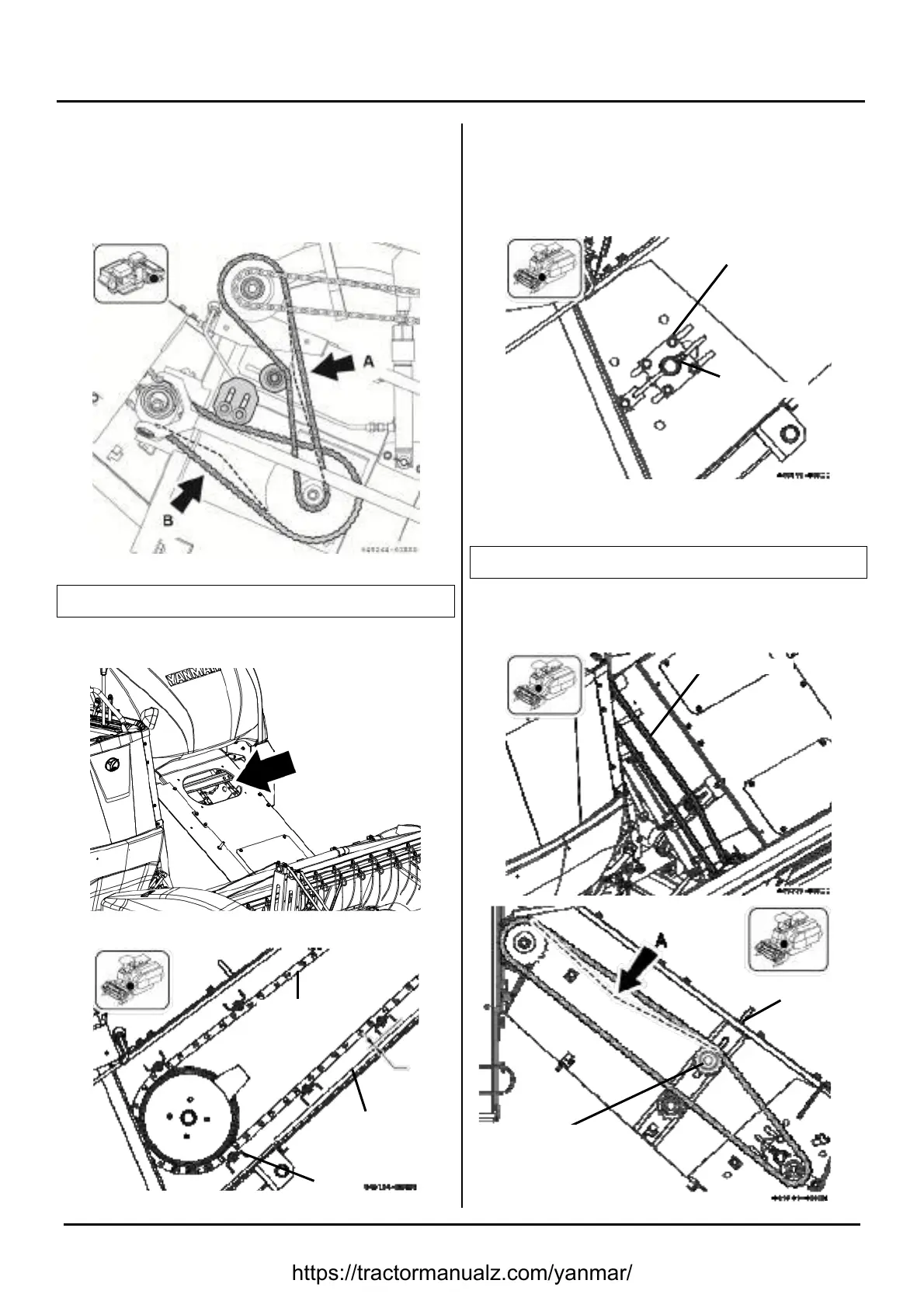

<Adjusting the header auger drive chain>
1- Remove the right side cover of the header.
2- Loosen the fixing bolt to adjust the tensioning nut.
Feeder house drive chain
The gap between the chain slat and the bottom of
feeder house is over 6±1mm (part A).
<Adjusting the feeder house drive chain>
1- Remove the chain cover.
2- Rotate the feeder house drive chain by hand.
3- Adjust the left and right sides concurrently.
4- Loosen the fixing bolt and turn the adjusting nut.
5- Tighten the fixing bolt and mount the cover.
Reaping section drive chain
The bending is about 20±3mm when you press the
central part (part A) slightly by hand.
Chain position
Base plate
Feeder house
drive chain
Slat
Fixing bolt
Adjusting nut
Chain position
djusting nut
Fixing bolt
