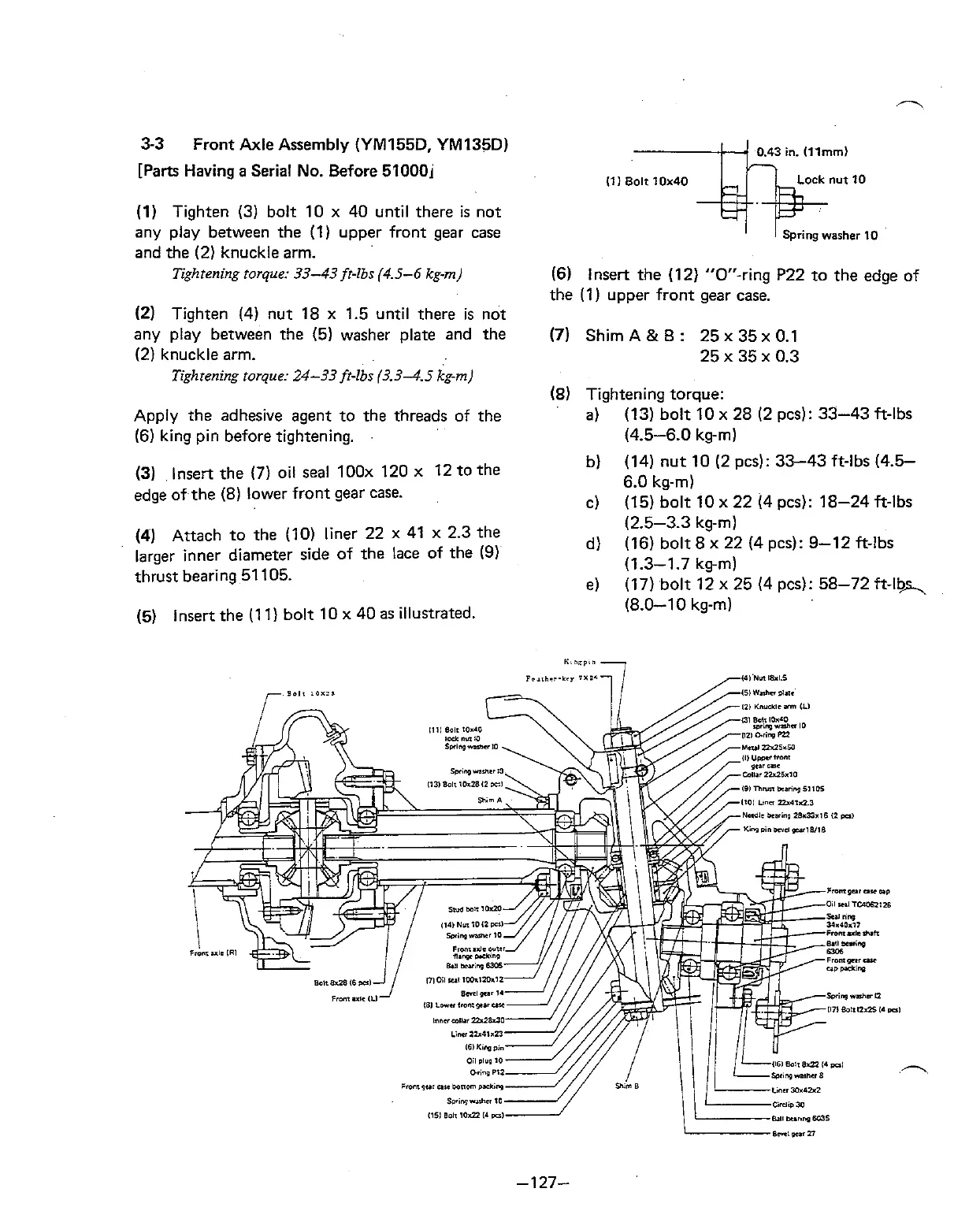

Front Axle Assembly (YM155D, YM135D)
[Parts Having
a
Serial No. Before 510001
(1)
Tighten (3) bolt 10
x
40 until there
is
not
any play between the
(1) upper front gear case
and the (2) knuckle arm.
Tightening torque: 33-43 ft-lbs (4.5-6 kg-m)
(2)
Tighten (4) nut 18
x
1.5 until there
is
not
any play between the
(5) washer plate and the
(2) knuckle arm.
Tightening torque: 24-33 ft-lbs (3.3-4.5 kg-m)
Apply the adhesive agent to the threads of the
(6) king pin before tightening.
(3)
Insert the (7) oil seal lOOx 120
x
12 to the
edge of the (8) lower front gear case.
(4)
Attach to the (10) liner 22
x
41 x 2.3 the
larger inner diameter side of the lace of the
(9)
thrust bearing 51 105.
(5)
Insert the
(1 1) bolt 10 x 40
as
illustrated.
,+j23
in.
dlrnrn)
(1
I
Bolt
10x40
4+n"""
I
I
Spring
washer 10
(6)
Insert the (12) "O-ring P22 to the edge of
the
(1) upper front gear case.
(7)
Shim A
&
B
:
25
x
35 x 0.1
25
x
35
x
0.3
(8)
Tightening torque:
a)
(13) bolt 10
x
28 (2
pcs):
33-43 ft-lbs
(4.5-6.0 kg-m)
b)
(14) nut 10 (2 pcs): 33-43 ft-lbs (4.5-
6.0 kg-m)
C)
(15) bolt 10
x
22 (4 pcs): 18-24 ft-lbs
(2.5-3.3 kg-m)
d)
(16) bolt 8
x
22 (4 pcs): 9-12 ft-lbs
(1.3-1.7
kpm)
e)
(17) bolt 12 x 25 (4 pcs): 58-72 ft-lb~
(8.0-1 0 kg-m)
