Yanmar YM155 - Page 134

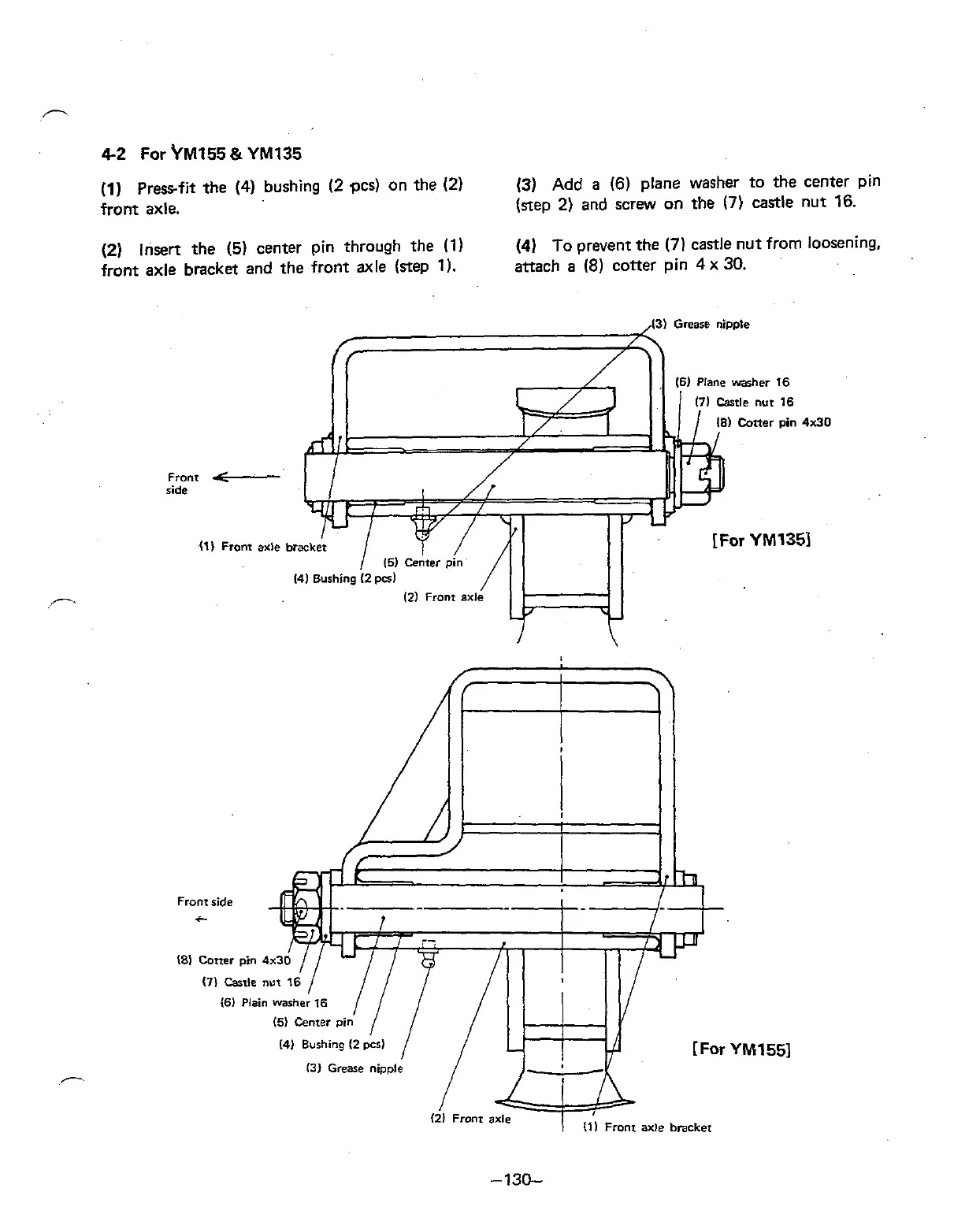

(1) Press-fit the (4) bushing (2 pcs) on the (2)
(3) Add a (6) plane washer to the center pin
front axle.
(step 2) and screw on the
(7) castle nut 16.
(2)
Insert the (5) center pin through the (1)
(4) To prevent the (7) castle nut from loosening,
front axle bracket and the front
axle (step 1).
attach a (8) cotter pin 4x 30.
1 Castle nut 16
8) Cotter pin 4x30
Front C--
side
Y
Front ride
C
18) Coner pin 4x3
(61 Plain washer 16
Front ride
C
18) Coner pin 4x3
(1) Front axle bracket
