Yanmar YM155 - Page 29

15
-
16
77
I
Division
Housing
hydrau-
lic
cyl-
inder
Brake

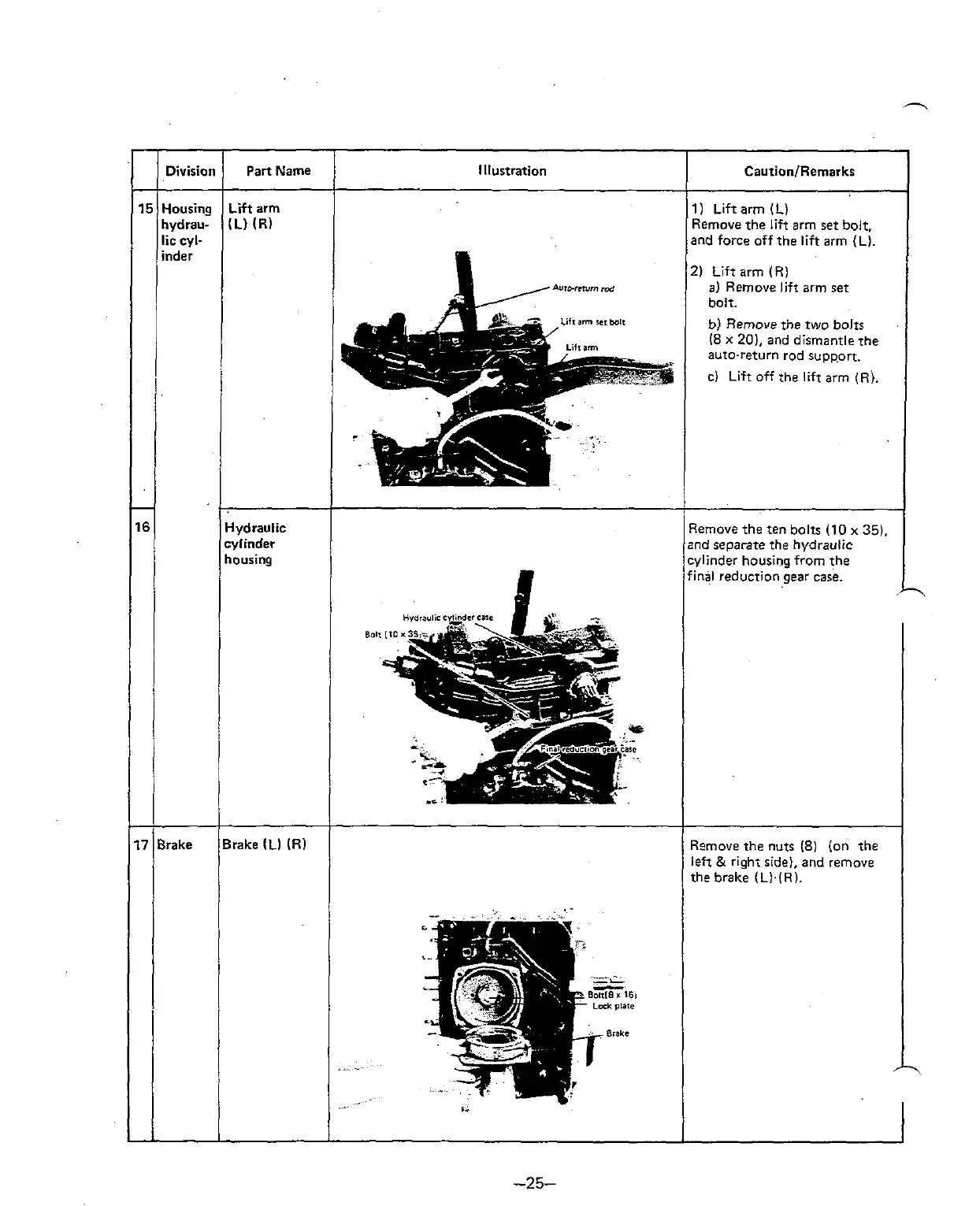

Part Name
Lii arm
(L) (R)
Hydraulic
cylinder
housing
Brake
ILI (R)
Illustration
Lilt an rr
.ip
.~ .-
IS0
. ..
. -
CautionIRemarks
11 Lift arm (L)
Remove the lift arm set bolt,
and force off the
lift arm (L).
21 Lift arm (R)
a) Remove lift arm set
bolt.
b) Remove the two bolts
(8 x 201, and dismantle the
auto-return rod support.
CI Lift off the lift arm (Ri.
Remove the ten bolts (10 x 35).
and separate the hydraulic
cylinder housing from the
final reduction gear case.
L
Rsmove the nuts 18) (on the
left
& right side), and remove
the brake
(L).(Rl.
