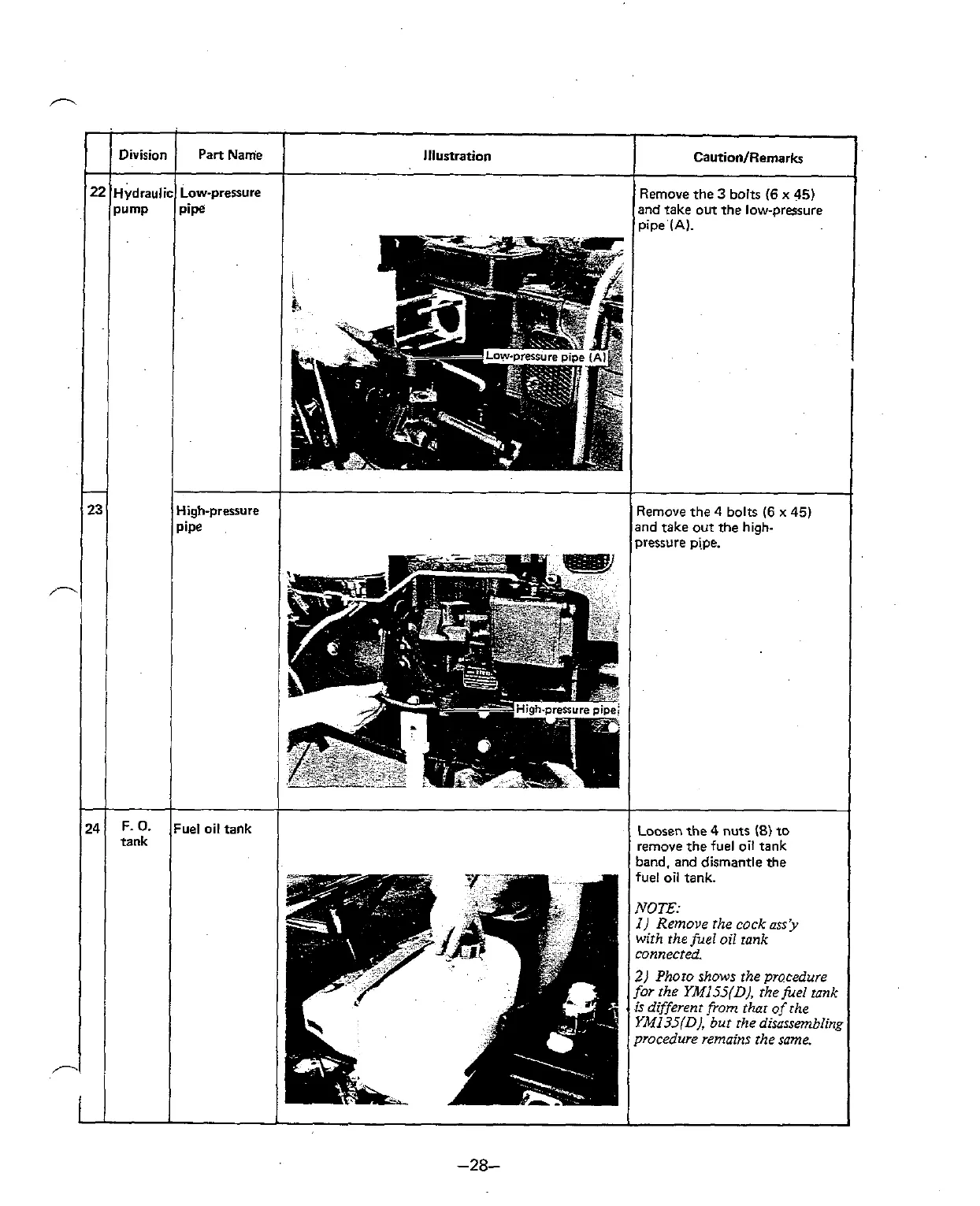

Yanmar YM155 - Page 32

I I Division Pan Name Illustration CautiontRemarks I
Remove the 3 bolts (6 x 45)
and take out the low-pressure
pipe (A).
High-pressure
Remove the 4 bolts
(6 x 45)
pipe
and take out the high-
pretsure pipe.
124 1 r;. l~uel oil tank
Loosen the
4 nuts (8) to
remove the fuel oil tank
band. and dismantle the
1 NOTE:
I] Remove rhe cock ass)
wirh the fuel oil rank
connected.
2) Phoro shows the procedure
for rhe
YMIjj(D), rhe fuel rank
is different from
thar of rhe
YMI3j(D], bur rhe disassemblin~
procedure remains the same.
1 fuel oil tank.
I
