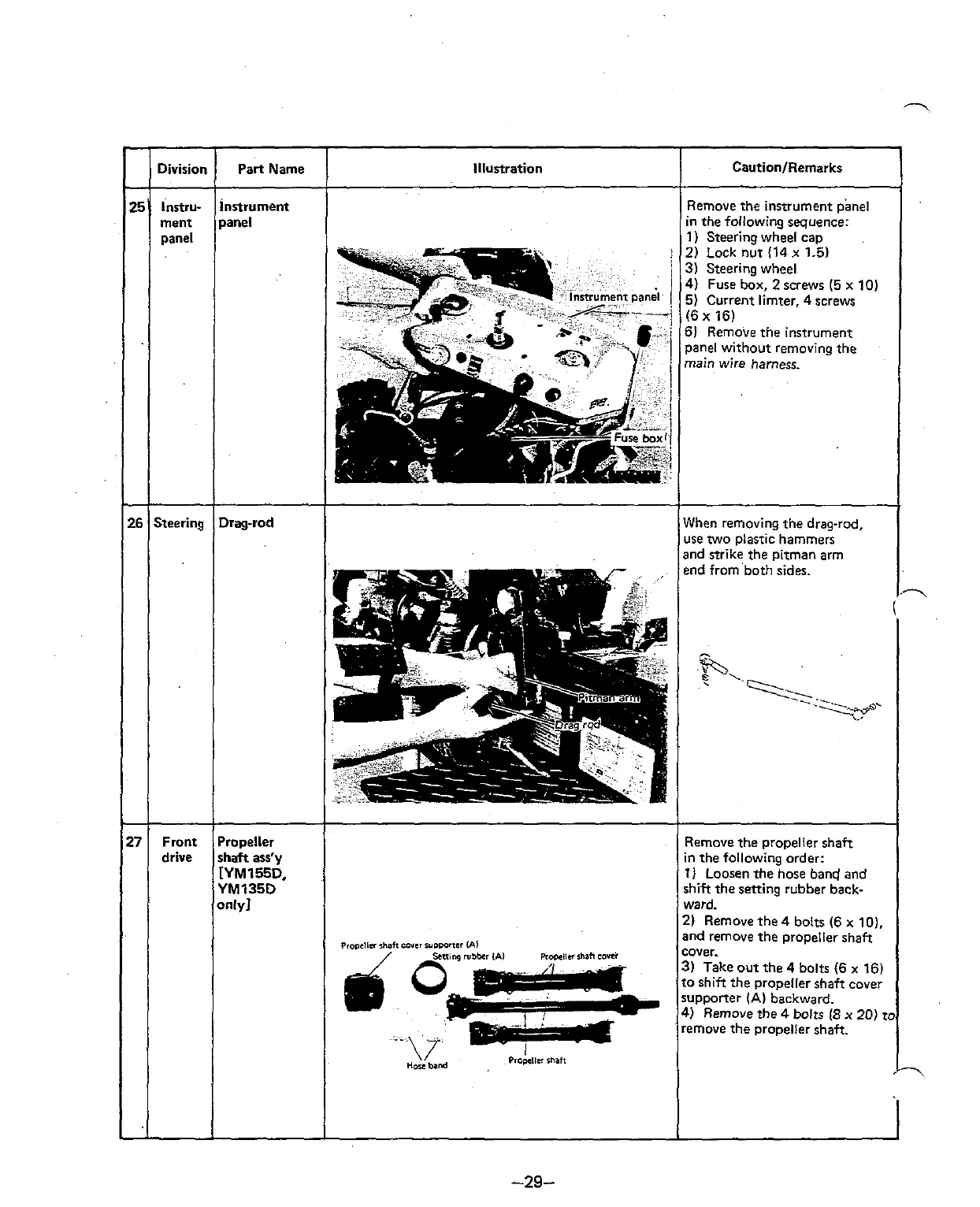

Yanmar YM155 - Page 33

-
25
-
26
27
When removing the drag-rod,
use two plastic hammers
and strike the
pitman arm
end
fromboth sides.
Division
instru-
ment
panel
Steering
Front
drive
illustration
Remove the propeller shaft
in the following order:
1) Loosen the hose band and
shift the setting rubber back-
ward.
2) Remove the 4 bolts (6 x 10).
and remove the propeller shaft
CautionIRernarks
Remove the instrument pinel
in the following sequence:
1) Steering wheel cap
cover.
3) Take out the 4 bolts (6 x 16)
to shift the propeller shaft cover
supporter
(A) backward.
4) Remove the 4 bolts (8 x 20) to
remove the propeller shaft.
! 2) Lock nut (14 x 1.5)
3) Steering wheel
4)
Fuse box, 2 screws (5 x 10)
5) Current limter, 4 screws
(6 x 16)
6) Remove the instrument
panel without removing the
main wire harness.
