Yanmar YM155 - Page 34

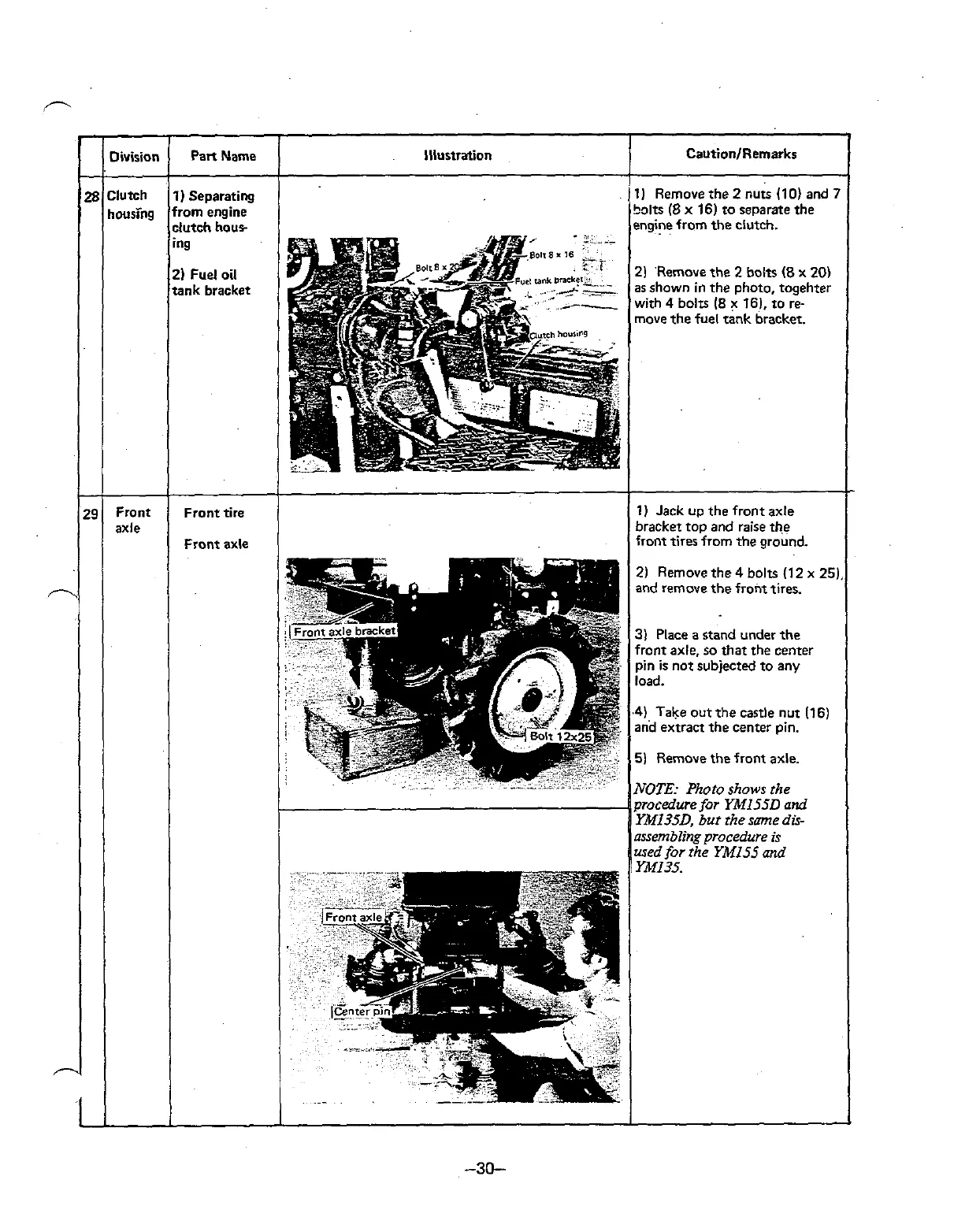

1) Jack up the front axle
bracket top and raise
the
front tires from the ground.
21 Remove the 4 bolts
(1 2 x 2
and remove the front tires.
.41 Take out the castle nut (16)
and extract the center pin.
5) Remove the front axle.
NOTE: Photo shows the
procedure for
YMI55D and
YMI35D, but the same dis-
assembling procedure is
used for the
YM155 and
