8.
9.

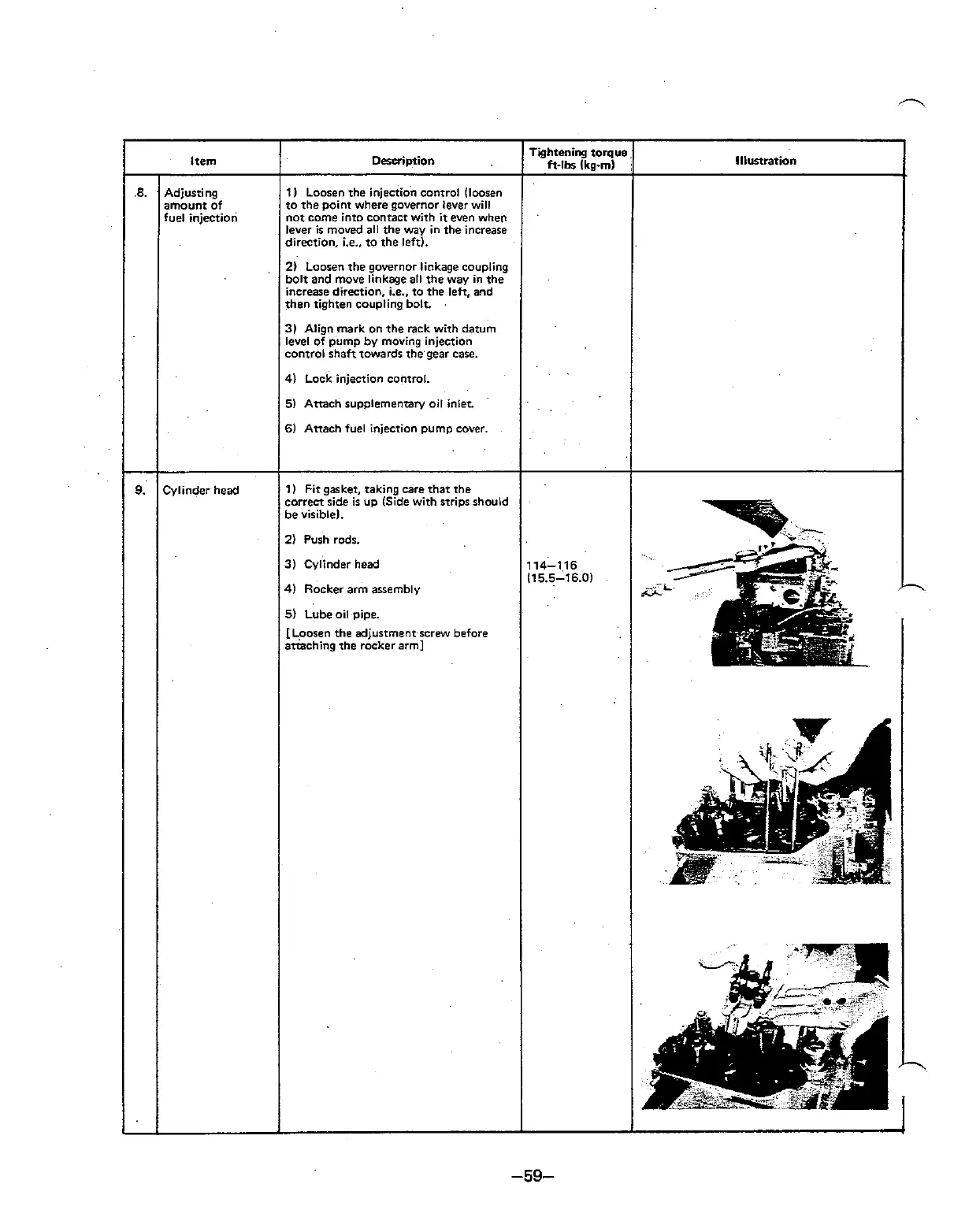

Description
11 Loosen the injection control
(locren
to the point where governor lever will
not come into contact with
it
even when
lever is moved all the way in the increase
direction,
i.e., to the left).
21
Loosen
the governor linkage coupling
bolt and move linkage all the way in the
increase direction. i.e.. to the left, and
then tighten coupling bolt
31 Align mark on the rack with datum
level of pump by moving injection
control shaft
towards thegear care.
41 Lock injection control.
51
Attach rupplementlry oil inlet
61 Anach fuel injection pump cover.
1) Fit gasket, taking carethat rhe
correct side
is
up
(Side with strips should
be visible).
21
Push
rods.
31 Cylinder head
41 Rocker arm assembly
5)
Lube oil pipe.
[Looren the adjustment screw before
atiaching the rocker arm1
Item
Adjusting
amount of
fuel injection
Cylinder head
Tishtening torque
ft-lhr
lkg-rnl
:
.
.
114-116
(15.5-16.01
IlluRration
1_
