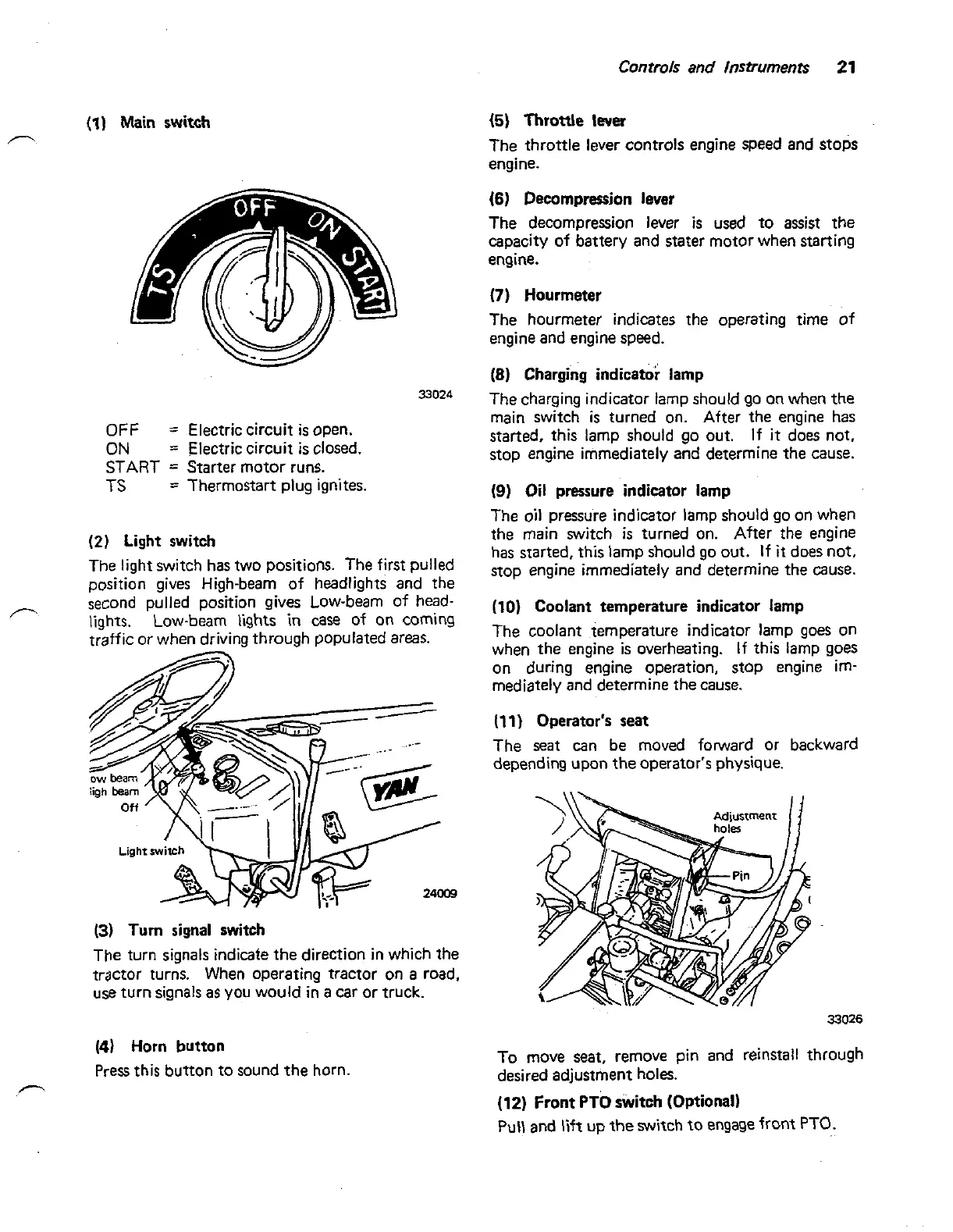

Controls and Instruments 21
(5) Throttle lever
(1) Main switch
r'\
OFF
= Electric circuit is open.
ON
= Electric circuit is closed.
START
= Starter motor runs.
TS
= Thermostart plug ignites.
(2) Light switch
The light switch has two positions. The first pulled
position gives High-beam of headlights and the
P
second pulled position gives Low-beam of head-
lights. Low-beam lights
in case of on coming
traffic or when driving through populated areas.
The throttle lever controls engine speed and stops
engine.
(6) Decompression lever
The decompression lever is used to assist the
capacity of battery and stater motor when starting
engine.
(7) Hourmeter
The hourmeter indicates the operating time of
engine and engine speed.
(8) Charging indicator lamp
The charging indicator lamp should go on when the
main switch
is turned on. After the engine has
started, this lamp should go out. If
it does not,
stop engine immediately and determine the cause.
(9) Oil pressure indicator lamp
The oil pressure indicator lamp should go on when
the main switch
is turned on. After the engine
has started, this lamp should go out. If
it does not.
stop engine immediately and determine the cause.
(10) Coolant temperature indicator lamp
The coolant temperature indicator lamp goes on
when the engine is overheating. If this lamp goes
on during engine operation, stop engine im-
mediately and determine the cause.
(11) Operator's seat
The seat can be moved
foward or backward
depending upon the operator's physique.
(3) Turn signal switch
The turn signals indicate the direction in which the
tractor turns. When operating tractor on a road,
use turn signals as you would in a car or truck.
(41 Horn button
Press this button to sound the horn
To move seat, remove pin and reinstall through
desired adjustment holes.
(12) Front
PT'O &itch (Optional)
Pull and lift up the switch to engage front PTO.
