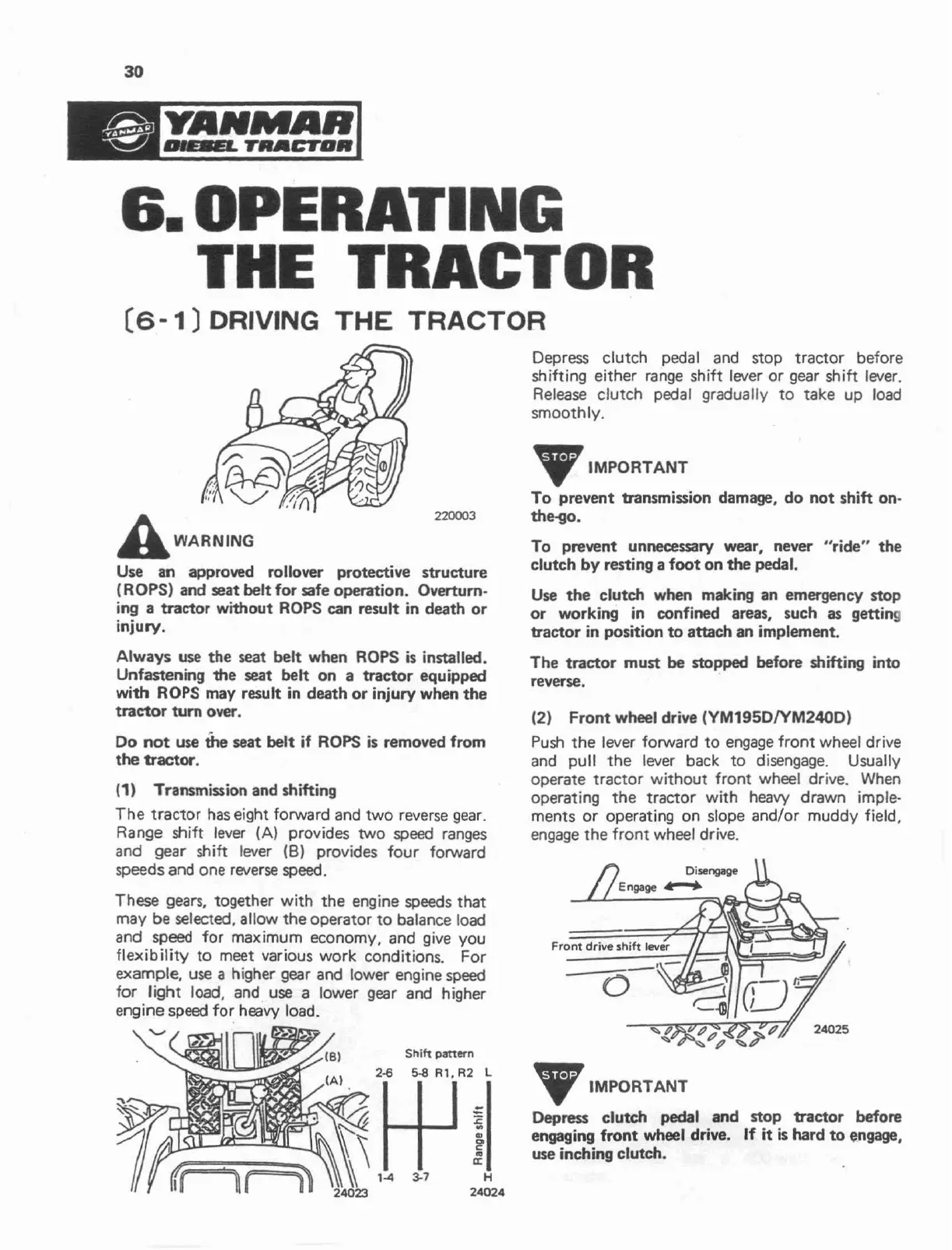

YAUMAR
01-
TRACTOR
6.
OPERATING
(6-
1
]
DRIVING
THE
TRACTOR
Use
an
approved rollover protective structure
(ROPS) and seat
belt
for safe operation. Overturn-
ing
a
tractor without ROPS can result in death or
injury.
Always
use
the
seat
belt when ROPS
is
installed.
Unfastening the seat
belt
on a tractor equipped
with ROPS
may
result in death or injury when the
tractor
turn
over.
Do
not
use
ihe
seat
belt if ROPS is removed from
the
tractor.
(1)
Transmission and shiiing
The tractor
haseight forward and two rwerse gear.
Range shift lever
(A)
provides two weed ranges
and gear shift lever
IB)
provides four forward
speedsand one reverse weed.
These
gears, together with the engine speeds that
may
be
selected, allow the operator to balance load
and speed for maximum economy, and give you
flexibility to meet various work conditions. For
example. use
a
higher gear and lower engine speed
for light load, and
use
a lower gear and higher
engine speed for
heavy load.
Depress clutch pedal and stop tractor before
shifting either range shift lever or gear shift lwer.
Release clutch pedal gradually to take up load
smoothly.
IMPORTANT
Toprevent transmission damage, do not shift on-
To prevent unwcesary wear, newr "ride" the
clutch
by
resting a foot on the pedal.
Use
the clutch
when
making an emergency stop
or working in confined areas, such
as
getting
tractor in position to attach an implement.
The
tractor must be stopped before shiiing into
reverse.
(2) Front wheel drive
(YM195DNM240D)
Push the lwer forward to engage front wheel drive
and pull the lwer back to disengage. Usually
operate tractor without front wheel drive.
When
operating the tractor with heavy drawn imple-
ments or operating on slope
and/or muddy field,
engage the front wheel drive.
IMPORTANT
~epress
clutch pedal
and
stop tractor wore
engaging front wheel drive.
If
it
is
hard
to
engage,
use inching clutch.
