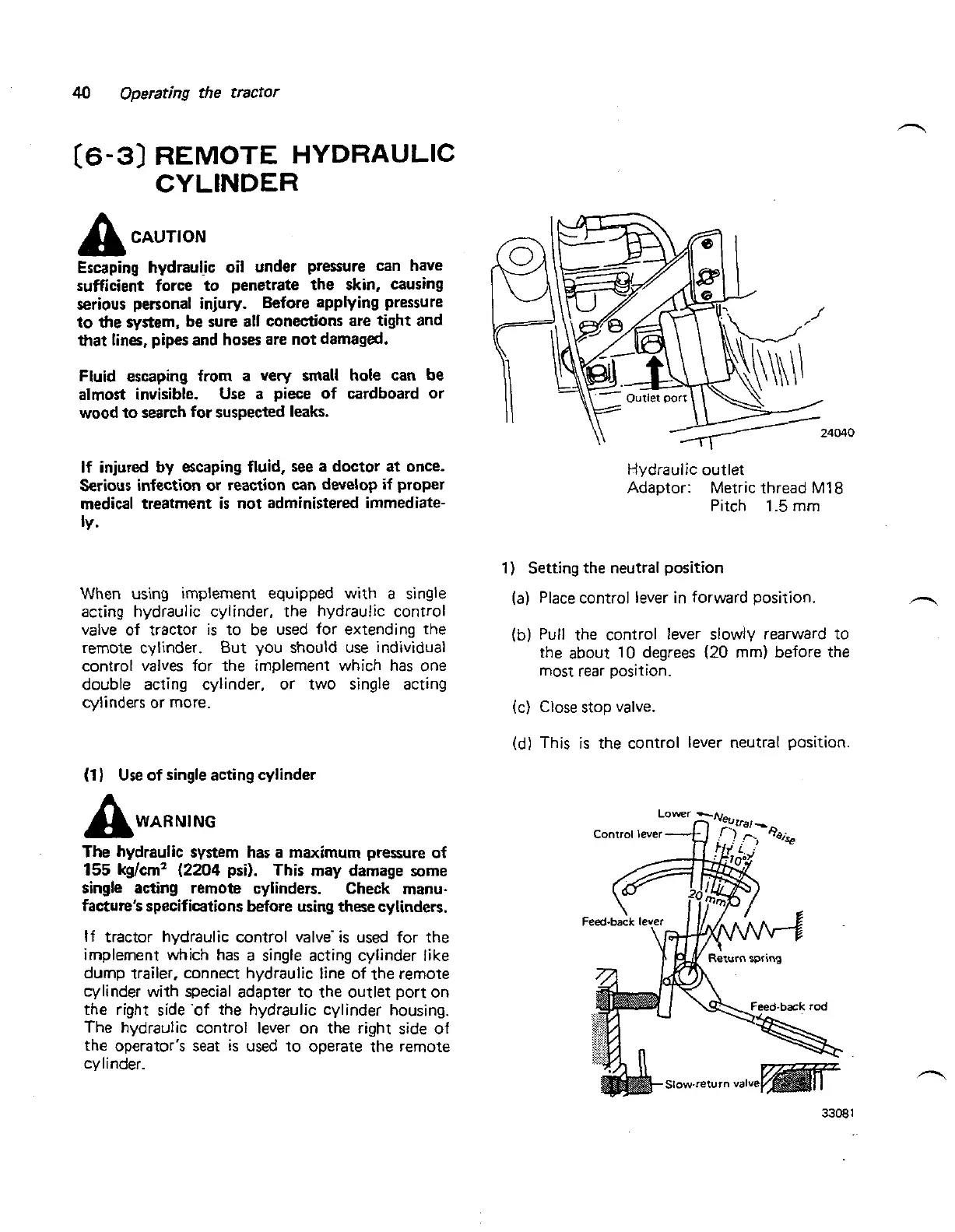

40
Operating
the
tractor
16-33
REMOTE HYDRAULIC
CY
LlNDER
~s&in~
hydraulic oil under pressure can have
sufficient force to penetrate the skin, causing
serious personal injury. Before applying pressure
to
the system, be sure all conections are tight and
that lines, pipes and hoses are not damaged.
Fluid escaping from a very
small hole can be
almost invisible. Use a piece of cardboard or
wood to search for suspected leaks.
If
injured by escaping fluid, see a doctor at once.
Serious infection or reaction can develop
if
proper
medical treatment
is
not administered immediate-
lv.
When using implement equipped with a single
acting hydraulic cylinder, the hydraulic control
valve of tractor is to be used for extending the
remote cylinder. But you should use individual
control valves for the implement which has one
double acting cylinder, or two single acting
cylinders or more.
(1
1
Ure
of single acting cylinder
The hydraulic system has a maximum pressure of
155
kg/cma
(2204
psi). This may damage some
single acting remote cylinders. Check manu-
facture's specifications before using thesecylinders.
If tractor hydraulic control valve'
is
used for the
implement which has a single acting cylinder like
dump
trailer, connect hydraulic line of the remote
cylinder with special adapter to the outlet port on
the right side 'of the hydraulic cylinder housing.
The hydraulic control lever on the right side of
the operator's seat
is
used to operate the remote
cylinder.
Hydraulic outlet
Adaptor: Metric thread M18
Pitch
1.5
mm
1)
Setting the neutral position
(a) Place control lever in forward position.
n
(b) Pull the control lever slowly rearward to
the about
10
degrees
I20
mrn) before the
most rear position.
(c) Close stop valve.
(dl This
is
the control lever neutral position
