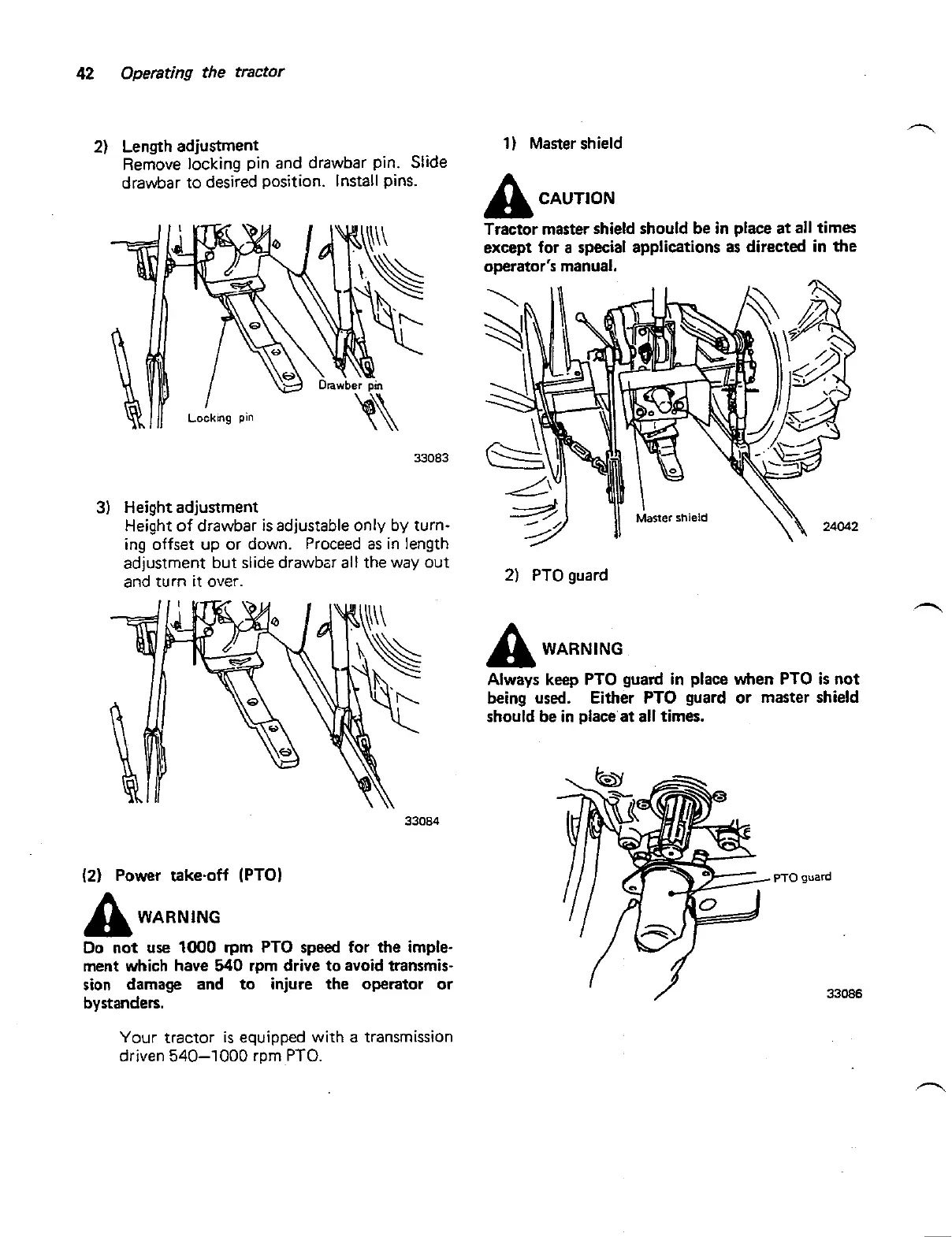

42
Operating
the tractor
2)
Length adjustment
1)
Master shield
Remove locking pin and
drawbar pin. Slide
drawbar to desired position. Install pins.
A
CAUTION
Tractor master shield should be in place at all times
except for a special applications as directed in the
operator's manual.
33083
3)
Height adjustment
Height
of
drawbar is adjustable only by turn-
ing offset up or down. Proceed as in length
adjustment but slide
drawbir all the way out
and turn
it
over.
2)
PTO guard
(2)
Power take-off (PTO)
A
WARNING
Do
not use
1000
rum PTO sneed for the imde-
ment which have
540
rpm dri;e to avoid transmis-
sion
damage and to injure the operator or
bystanders.
A
WARNING
Always keep PTO guard in place when PTO is not
being used. Either PTO guard or master shield
should be in place at all times.
PTO
guard
Your tractor
is
equipped with a transmission
driven 540-1000 rpm PTO.
