- 8 -

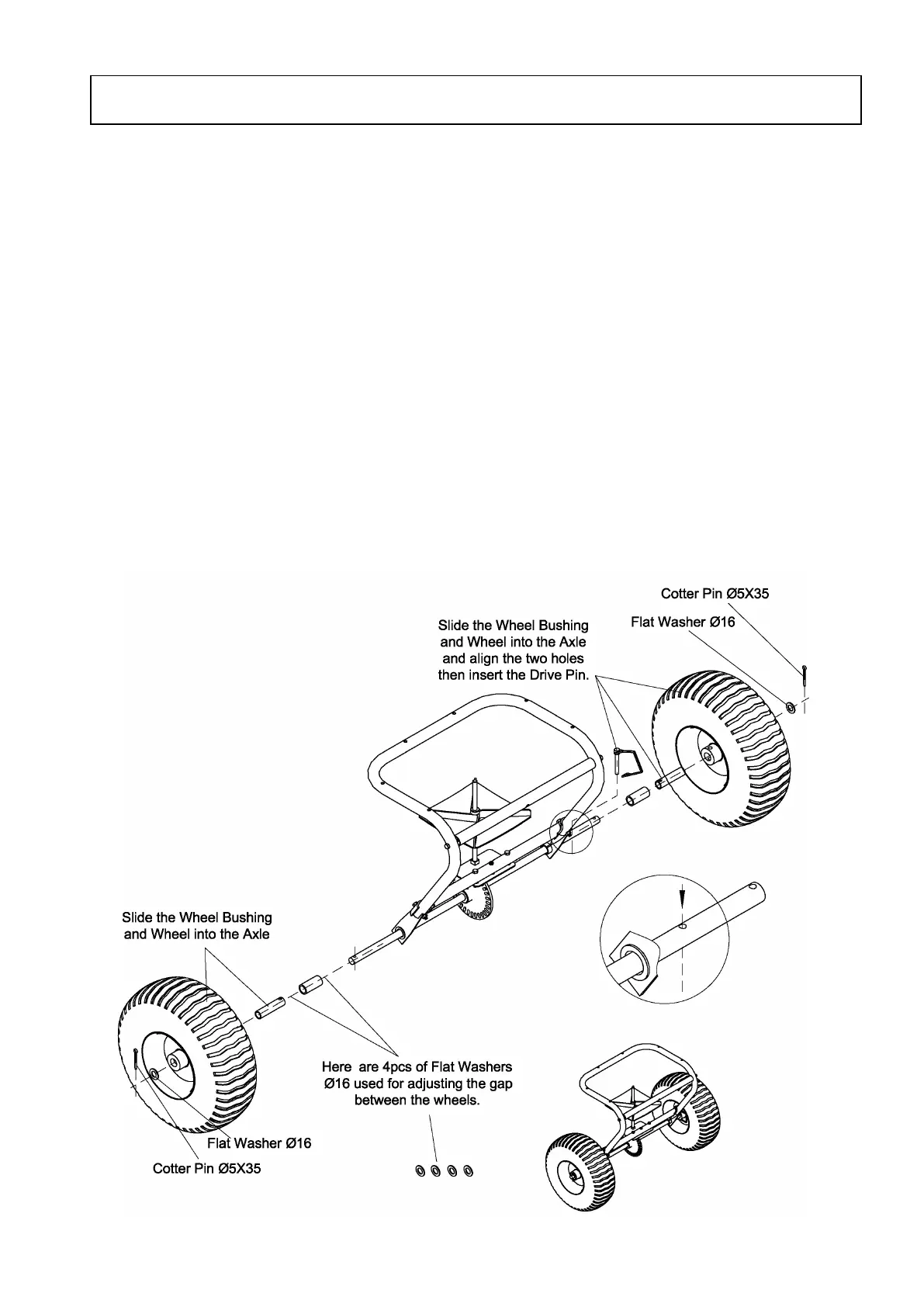

STEP 1: Installing the Wheels
1. Flip the Frame Assembly upside down and slide the axle bushing and the wheel spacer onto the left side of
the axle.
2. Push the left wheel onto the axle.
3. Slip the flat washer Ø16 onto the axle, then insert the cotter pin Ø5x35 through the hole in the axle.
4. Before bending the cotter pin, verify there is no side-to-side movement between the wheel and frame. If the
wheel moves side-to-side, use the additional 4 pieces of flat washer Ø16 to remove the side-to-side play.
5. Secure the wheel by bending the cotter pin Ø5x35.
6. Slide the axle bushing and the wheel spacer onto the right side of the axle.
7. Install the wheel and the spacer into the axle, swivel the two holes until they line up, insert the drive pin
through sleeve and lock.
8. Slip the flat washer Ø16 onto the end of the axle, then insert the cotter pin Ø5x35 through the hole in the
axle. Secure the wheel by bending the cotter pin Ø5x35.
