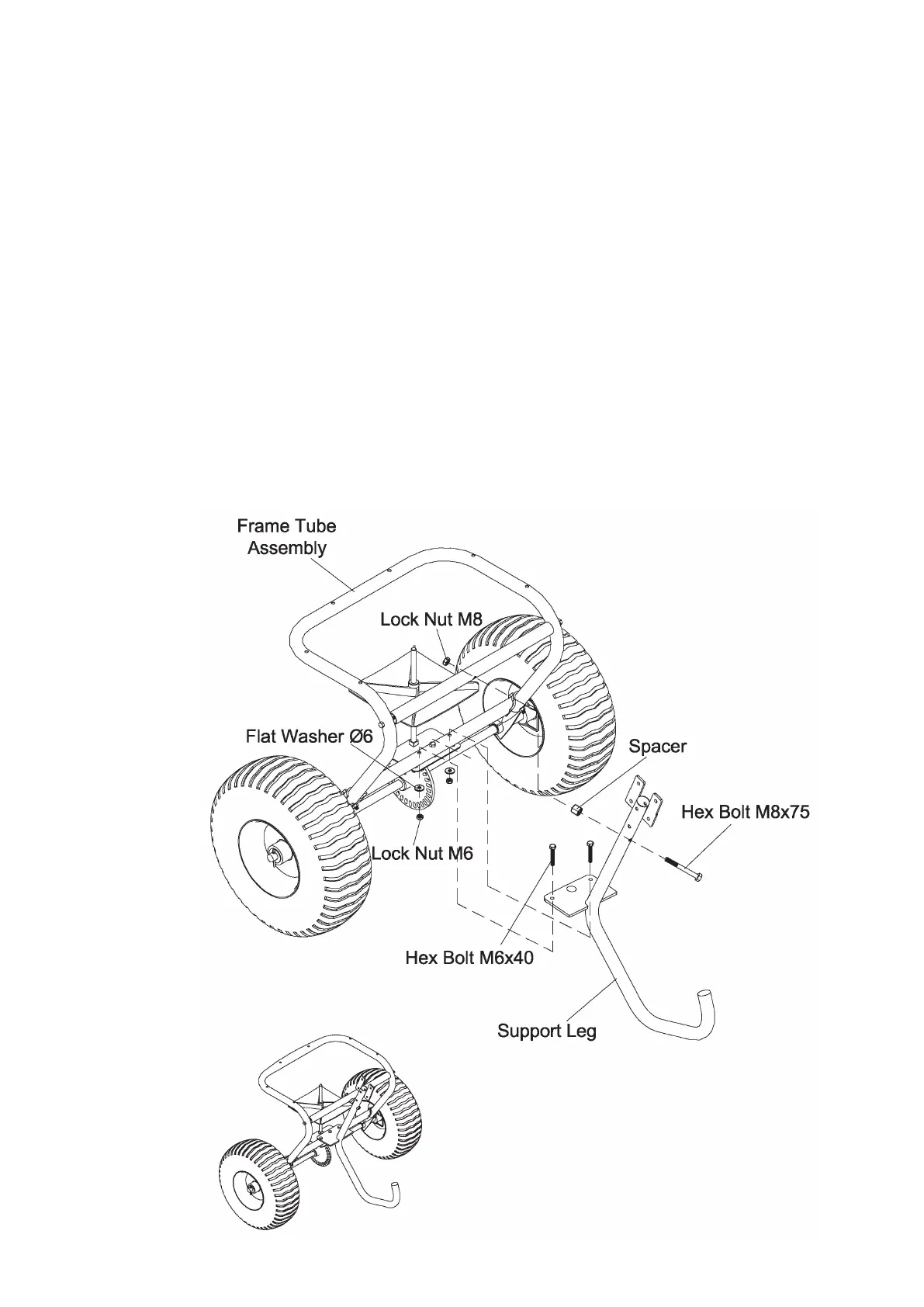

STEP 2: Assembling the Support Leg
1. Remove the two partially installed Hex Bolt M8x75, Flat Washer and Lock Nut M8 from the middle of
the frame as shown in diagram.
2. Flip the Frame Assembly over onto the wheels.
3. Position the support leg so that the J-shaped end is pointing away from the wheel assembly.
4. Position the middle flat plate of the Leg Support on top of the middle cross beam of the Frame
Assembly.
5. Insert the hex bolt M8x75 through the hole at the top of the support leg. Slide the spacer onto the hex
bolt, then insert the hex bolt into the hole on the upper cross bar of the mounting tube. Fasten with lock
nut M8.
6. Insert the two Hex Bolt M6x40 back into the holes in the lower cross beam. Then replace the Flat
Washer Ø 6 and fasten with the two removed Lock Nut M6.
