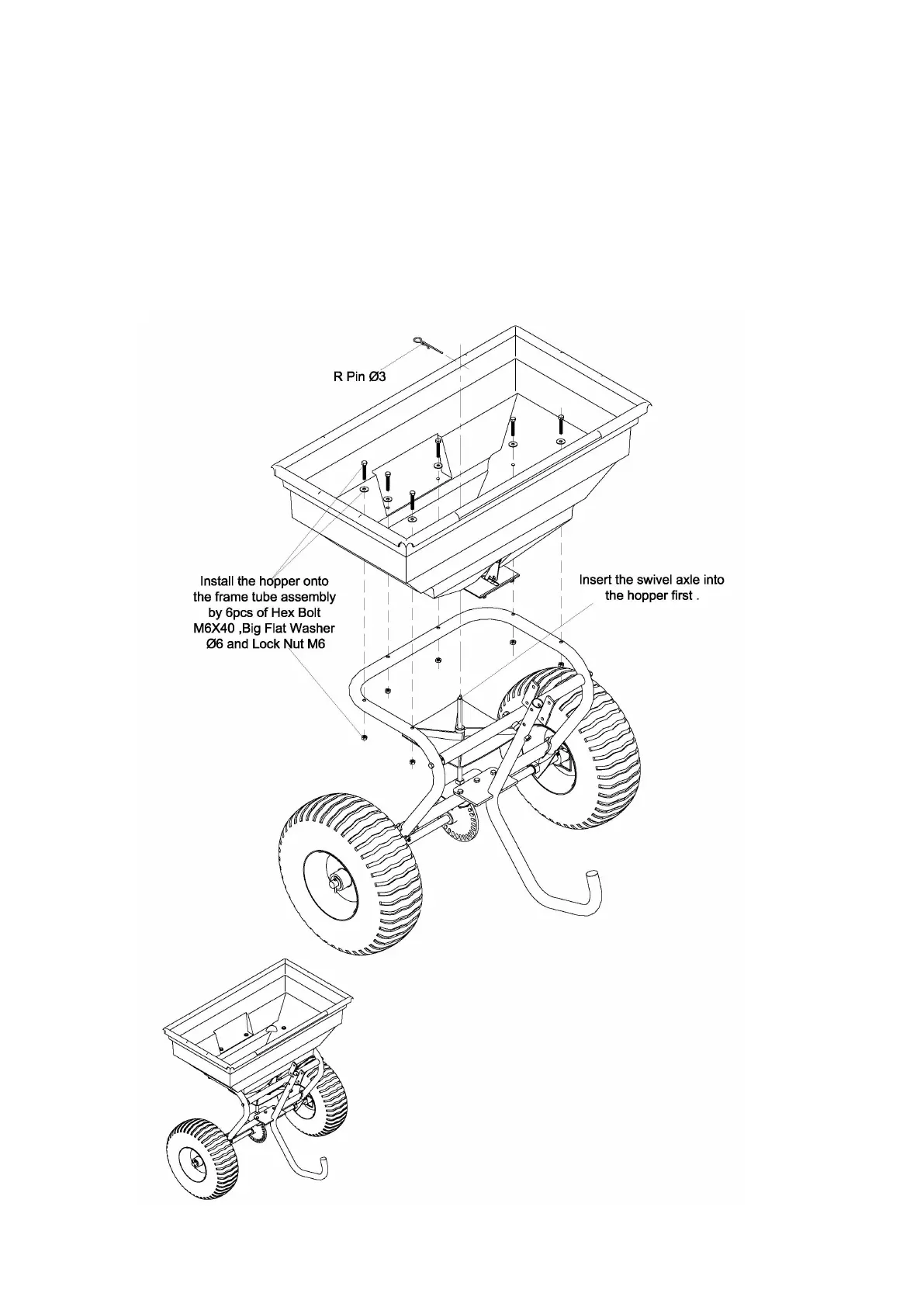

STEP 3: Installing the Hopper
1. Lower the hopper into the Frame Assembly, carefully line up the hole in the bottom of the hopper with
the spindle in the mounting plate of the axle.
2. Using six hex bolt M6 x 40 and six flat washers Ø6, install the hopper to the mounting assembly by
passing the bolts through the hopper and mounting tube. Secure with lock nuts M6. Make sure the
gear and pinion gear work smoothly. Then tighten all the hardware on the shaft support plate and the
hopper. If not, adjust again until the gear and pinion gear swivel smoothly.
3. Insert the R pin Ø3 through the top of the spindle.
