STEP 4: Connecting Handle to the Support Leg

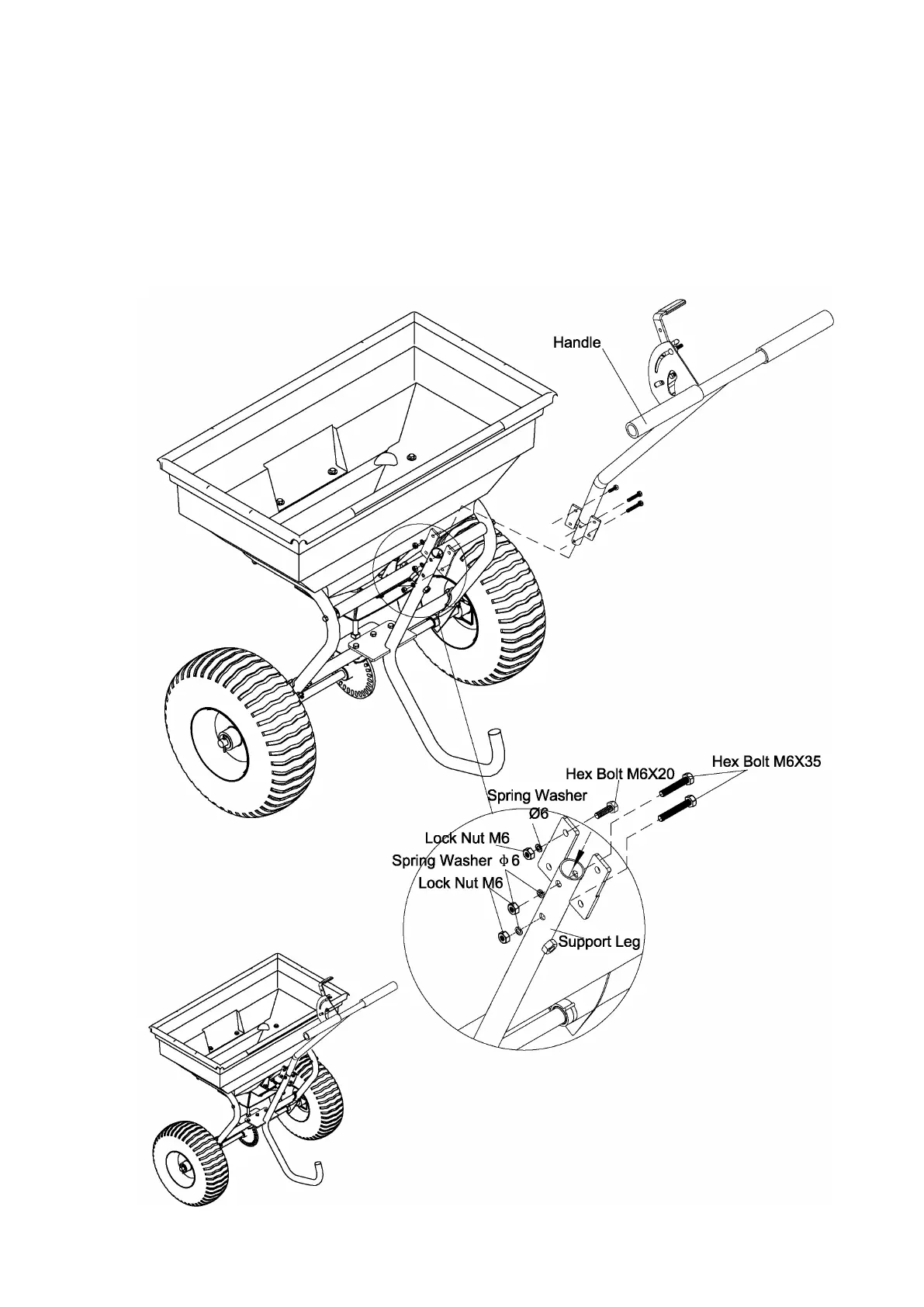

1. Slide the bottom of the handle tube into the top of the support leg and align the two holes as shown in
the diagram below with the Adjustment Handle facing the Hopper.
2. Insert two hex bolts M6x35 into the two holes on the support leg and tighten with spring washers Ø6
and lock nuts M6. Then insert four hex bolts M6x20 into the holes on the plate and tighten with spring
washers Ø6 and Lock Nuts M6.
