7

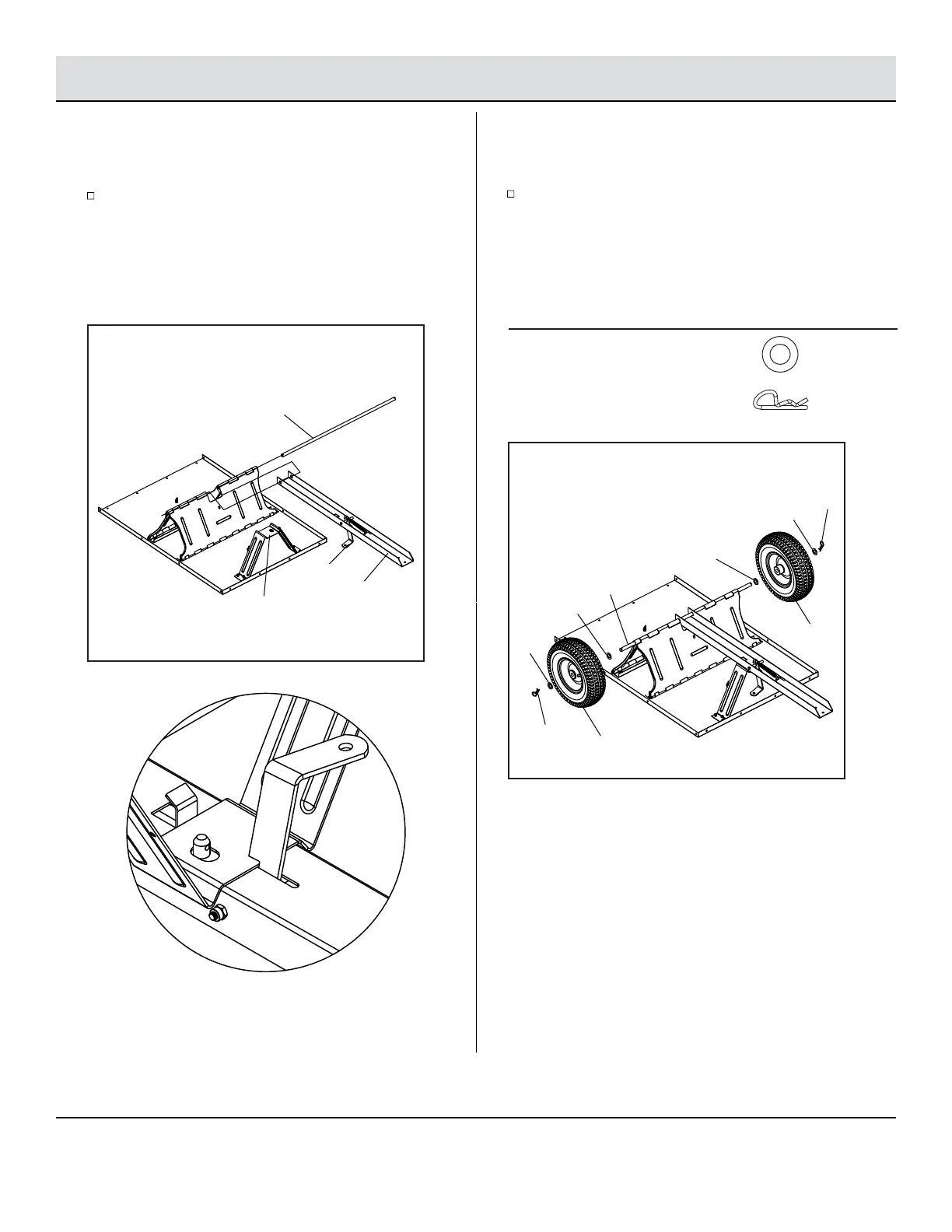

Assembly (continued)
3
Attach the Hitch Tongue Assembly
4
Attach the Wheels
put the wheel (H) on ensuring the male side of the wheel is
Ø16 at washer (FF) and lock in place using a Ø3 R pin (GG).
Repeat for the other wheel.
K
B
AF
I
DETAIL A
FF
Hardware Used
x 4Ø16 Flat WasherFF
x 2Ø3 R PinGG
GG
H
FF
I
H
FF
FF
GG
Add one Ø16 at washer (FF) on one side of the wheel axle (I),
facing the axle as shown below, and then put on another
Align the male receiver in the middle of the tongue assembly
(B) with the hole on the tongue support (K). Slightly pull the
release pedal (AF) back into the notch in the tongue support
to lock in place (see Detail A). Align the holes on the axle
supports (X) with the holes on the end of the tongue
assembly (B) and insert the wheel axle (I).
To Next Page
